Assembling Your Bowflex Ultimate
®
2
STEP 16
Parts:
 •LatBoomAssembly(from step 15)
 •UpperLatUprights(Box6)
Tool:
 •HexKey(7/32”)
 •Wrench(9/16”)- or Adjustable Wrench

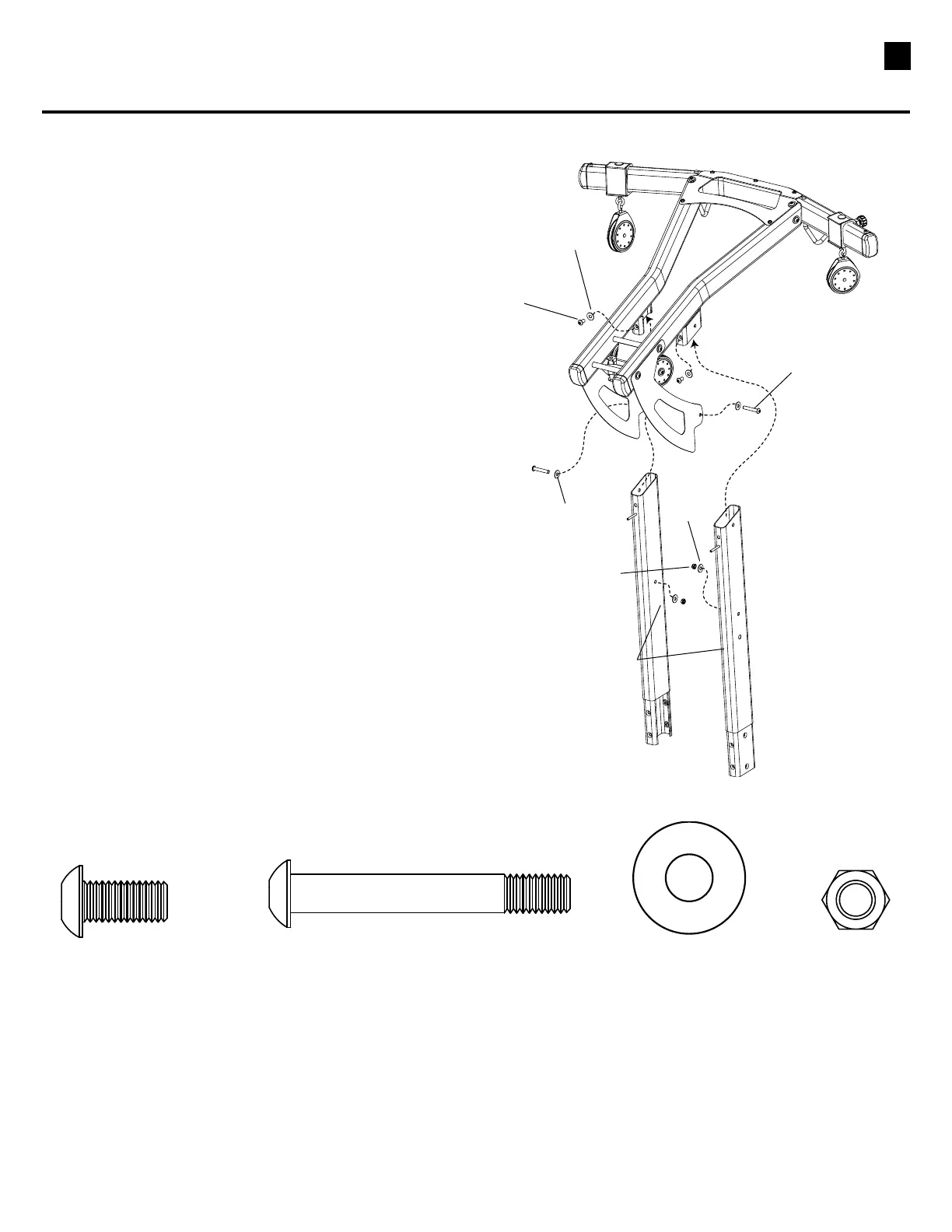

16-1 SlideUpperLatUprightsontoLatBoomassembly
16-2 Install but do not tightenthetwo3/8”x3/4”screws
into the top of the uprights.
16-3 Installthetwo3/8”x21/4”Screws,Washersand
NylockNutthroughtheSidePlatesandintothe
Uprights.
16-4 Completelytightenallofthehardwareforsteps
12through16.
2 Pan Head Allen Bolt (3/8” X 3/4”) 6 Washers (3/8”)
Hardware (1:1):
2 Pan Head Allen Bolt (3/8” X 2 1/2”)
Pan Head Allen Bolt
3/8” x 3/4”
Pan Head Allen Bolt
3/8” x 2 1/2”
Washer
Washer
Upper Lat Uprights
2 Nylock Nut (3/8”)
Washer
Hex Nut
