Assembling Your Bowflex Ultimate
®
2

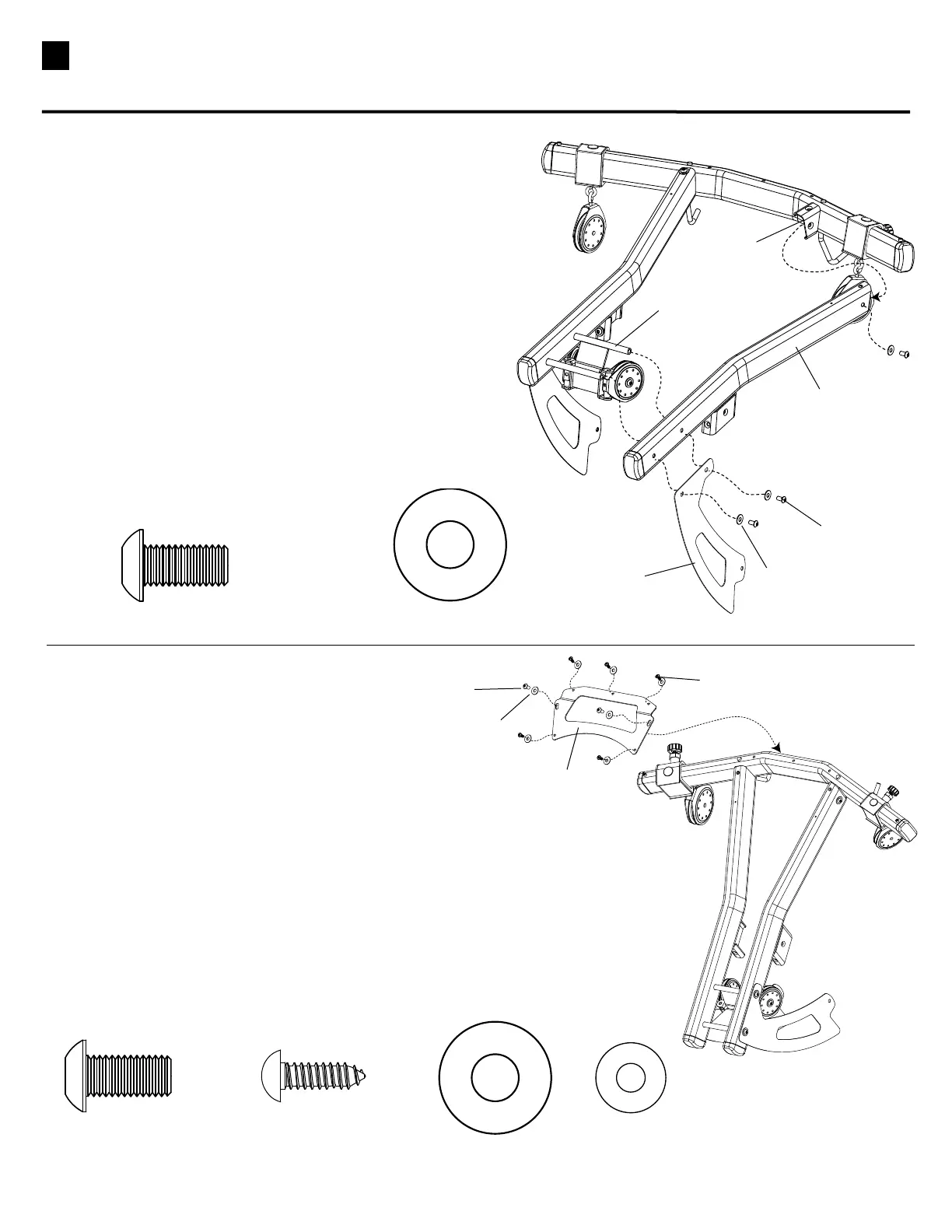

STEP 14
Parts:
 •LatBar,BoomAssembly(From step 13)
 •RightLatBoom(Box6)
 •SidePlate(Box4)
Tool:
 •HexKey(3/16”)
14-1AlignholesinRightLatBoomwithRearPulley
FrameCrossBarsandinsertrightsideofLatBar
andPulleyFrameCrossBarsintoRightLatBoom.
14-2AlignSidePlatewithRightLatBoomandinstall
but do not tightenhardware.
3 Pan Head Allen Bolt (3/8” X 3/4”) 3 Washers (3/8”)
Hardware (1:1):
Right Side
of Lat Bar
Right Lat Boom
Pan Head Allen
Bolt
Washer
Pulley Frame
Cross Bars
STEP 15
Parts:
 •LatBar,BoomAssembly(From step 14)
 •TopPlate(Box6)
Tools:
 •HexKey(3/16”)
 •PhillipsHeadScrewdriver
15-1 AlignholesinTopPlatewithLatBarandBooms.
15-2 Install but do not tightenhardware.
2 Pan Head Allen Bolt
(3/8” X 3/4”) 2 Washers (3/8”)
Hardware (1:1):
5 Self Tapping Screws
(1/4” X 3/4”)
Washer
Pan Head Allen Bolt
Pan Head
Screw
Top Plate
5 Washers (1/4”)
Side Plate
