Fig. 3
1 - INSTALLATION

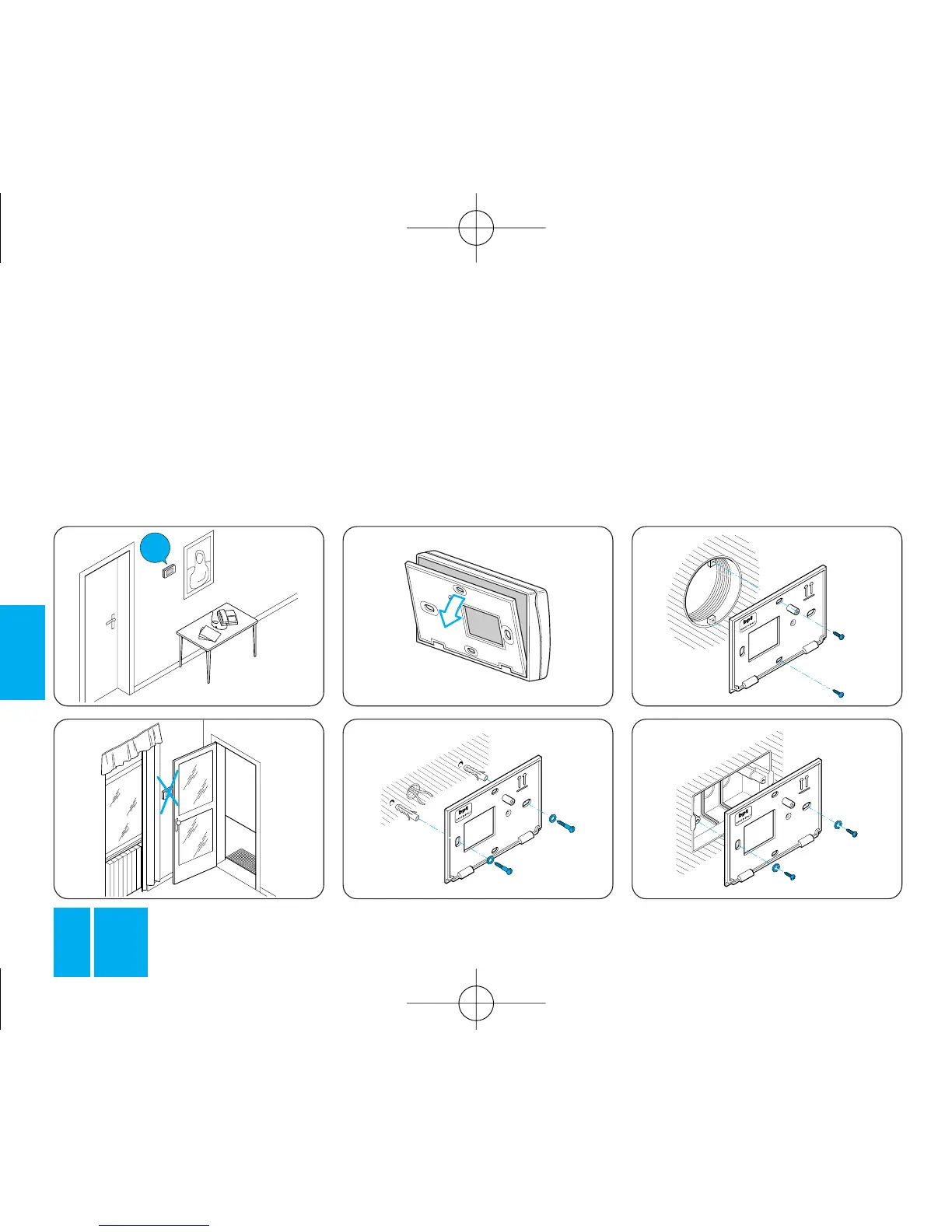

Install the thermostat in a position
where it can detect the average
room temperature, figure 3, avoi-
ding placing the thermostat inside
recesses, behind doors or cur-
tains, or near radiators, figure 4.
• Remove the bracket from the
thermostat body, figure 5, and fix it
directly to the wall, figure 6, or on
a flush-mounted junction box,
figure 7 or figure 8, making sure
that it is the right side up.
Fig. 8
• Open the front panel on the ther-
mostat and slide out the battery
cover, figure 9.
• Make the electric connections to
the terminal board situated on the
back of the thermostat, figure 10,
as illustrated in the diagrams in
