16

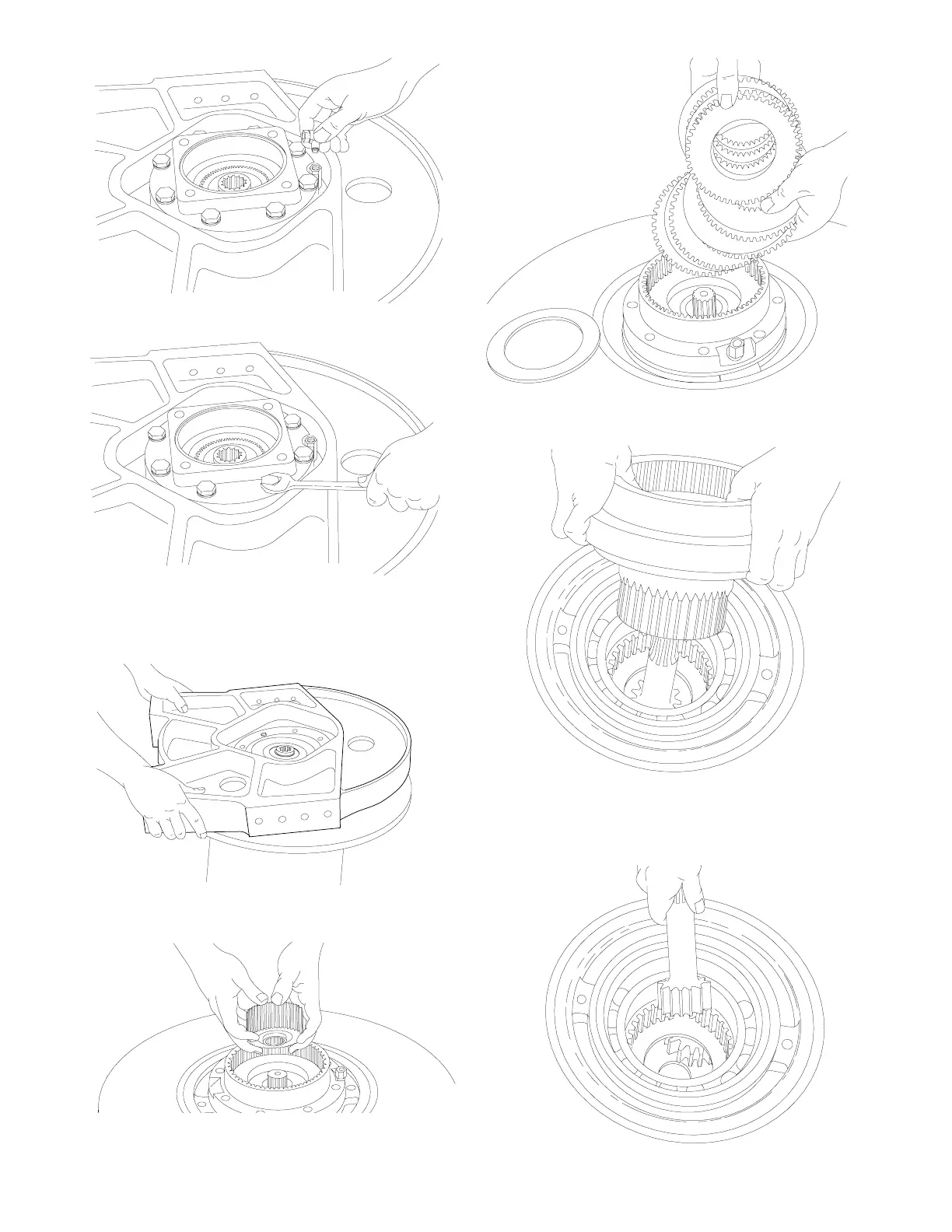

10. Remove the brake clutch assembly from the brake
cylinder. Refer to the section on disassembly of
the brake clutch assembly.
7. Remove the tee fitting from the brake cylinder nipple.
9. Remove the brake cylinder nipple, then remove the
motor end plate.
8. Remove the eight (8) capscrews and lockwashers from
the motor adapter, and remove the motor adapter.
Remove and discard the O-ring that was under the
motor adapter.
11. Remove the brake plate spacer and brake and friction
discs.
12. Remove the brake cylinder assembly, and place it on a
clean, dry surface so as not to damage the splines.
Refer to the section on disassembly of the brake cylin-
der assembly.
13. Next, remove the primary sun gear.
