Manual for BL-819, BL-830, BL-875
V6.1
© Copyright Brainboxes Ltd Page 17 of 40

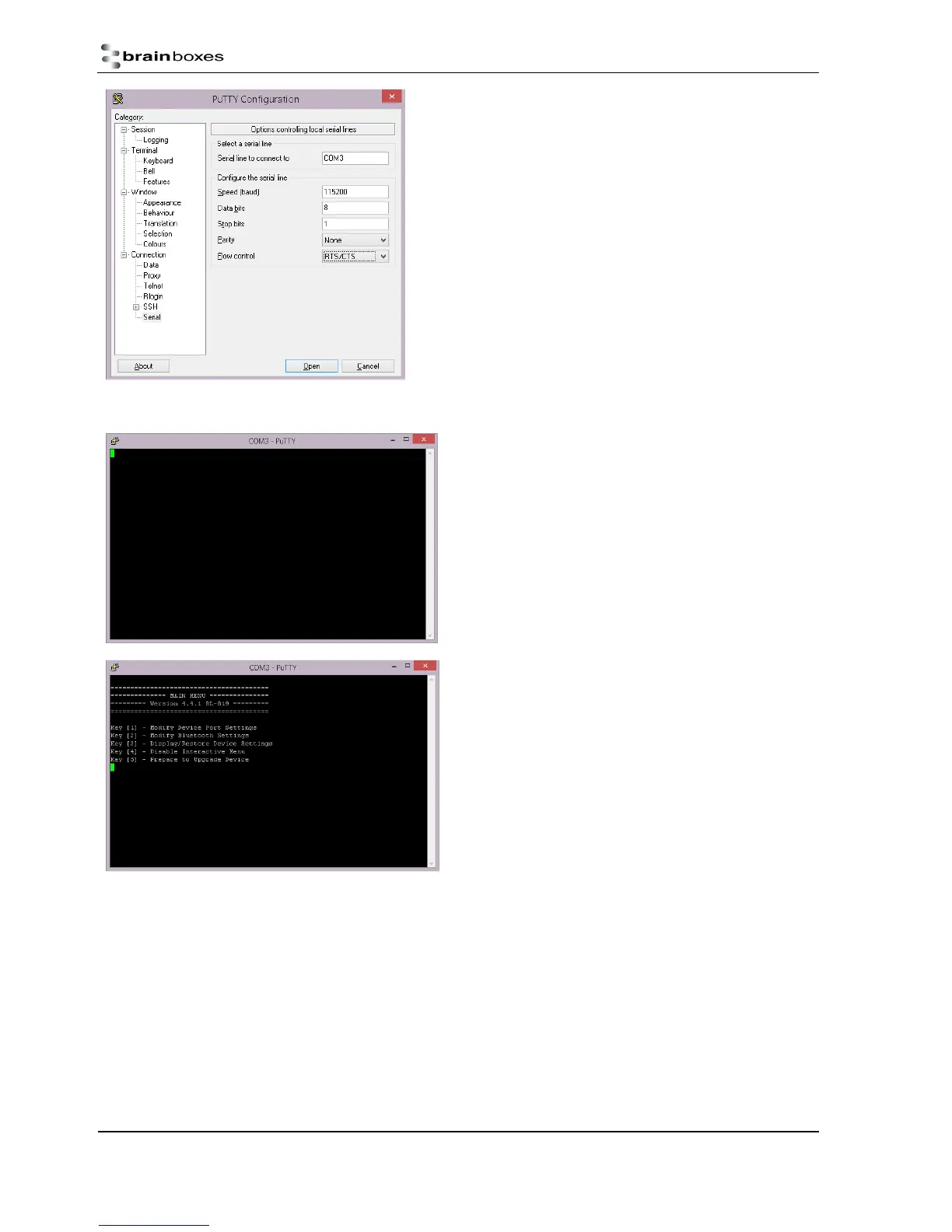

This is the Serial connections section. Here you are able to select
the COM port which you want to open and the speed (baud rate),
data bits (always 8), stop bits, parity and flow control. Once you
have entered the settings for the BL-819/830, press Open.
This is how the PuTTY terminal will appear when the COM port is
first opened. If you now press Enter (Carriage Return), you will
then see the Interactive Menu appear, like below.
This is the Interactive Menu. Here you can configure the BL-
819/830’s port settings.
1.13. Configuration Menu.
1.13.1. Navigation
As a general principle, from any menu screen hitting the “Enter” key refreshes the current menu and hitting the “Esc” or
“Escape” key returns the user to the previous menu or skips a particular option.
Menu selection is performed by pressing the number on your keyboard that corresponds to the number listed on the menu
item you wish to view/configure.
Reminder: The configuration menu is not available whilst a radio (Bluetooth) connection is established.
