Brainboxes BL-819 User Manual

Manual for BL-819, BL-830, BL-875
V6.1
© Copyright Brainboxes Ltd Page 20 of 40
1.13.5. Bluetooth Parameters

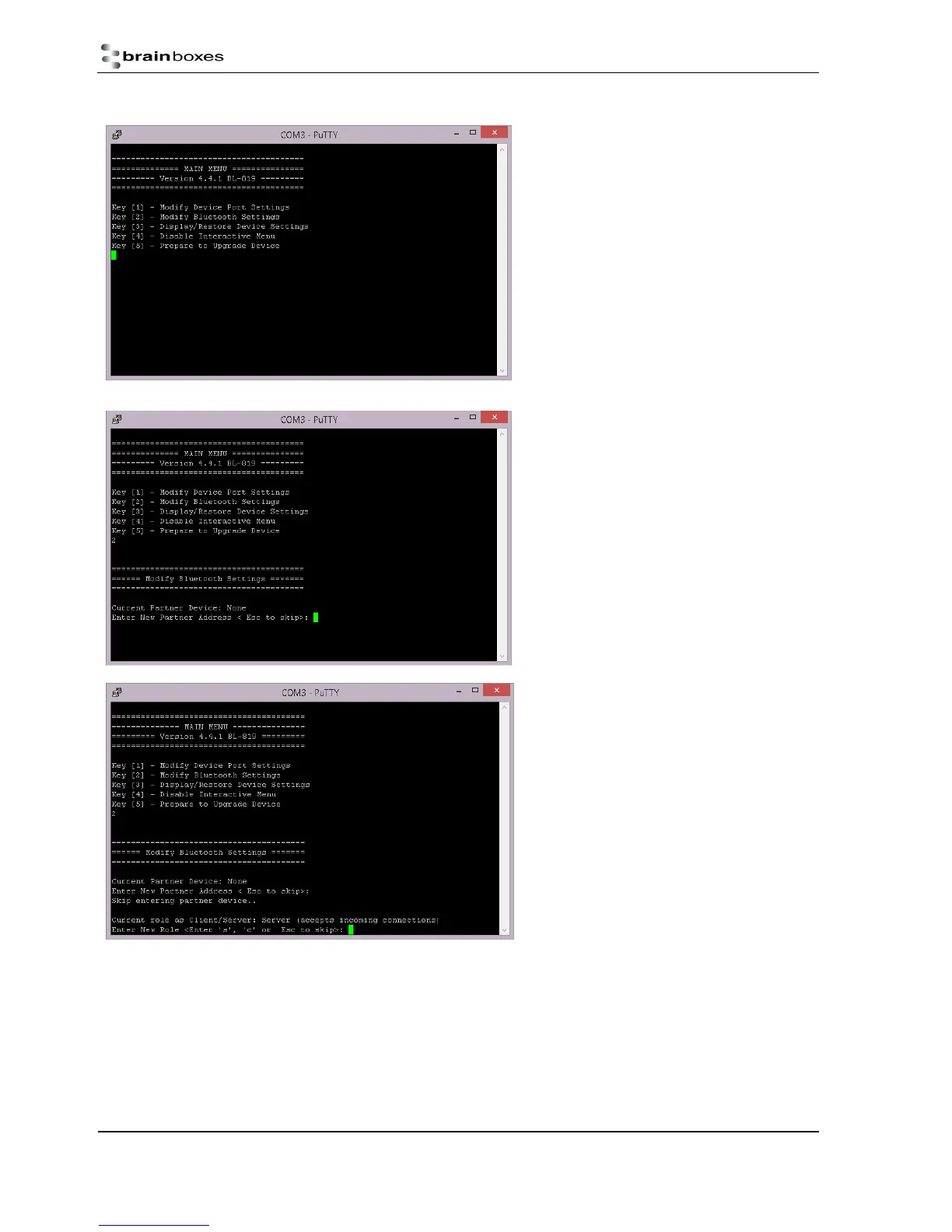

Selecting option 2 from the “Main Menu” menu
displays the Bluetooth settings menu shown below
left.
The factory set Bluetooth Parameters are:
Partner device: None
Role (Client/Server): Server
PIN: 1234
Local device name: Brainboxes RS-232 Adapter
It is from this menu that all available Bluetooth
settings can be changed. The available options are
detailed below.
The Currently configured partner device is shown (if
any). The user is then prompted to enter a new
partner device address.
To keep the same partner, or skip this option, press
the “Esc” key
Next the user is prompted to choose a role for the
device (the current one is identified). “s” chooses
Server, “c” chooses Client or “Esc” skips this section
leaving the current setting unchanged.

Brainboxes BL-819 Specifications

General

Brand	Brainboxes
Model	BL-819
Category	Adapter
Language	English
