Brainchild VR06 - Panel Mounting Cutout Specifications

15

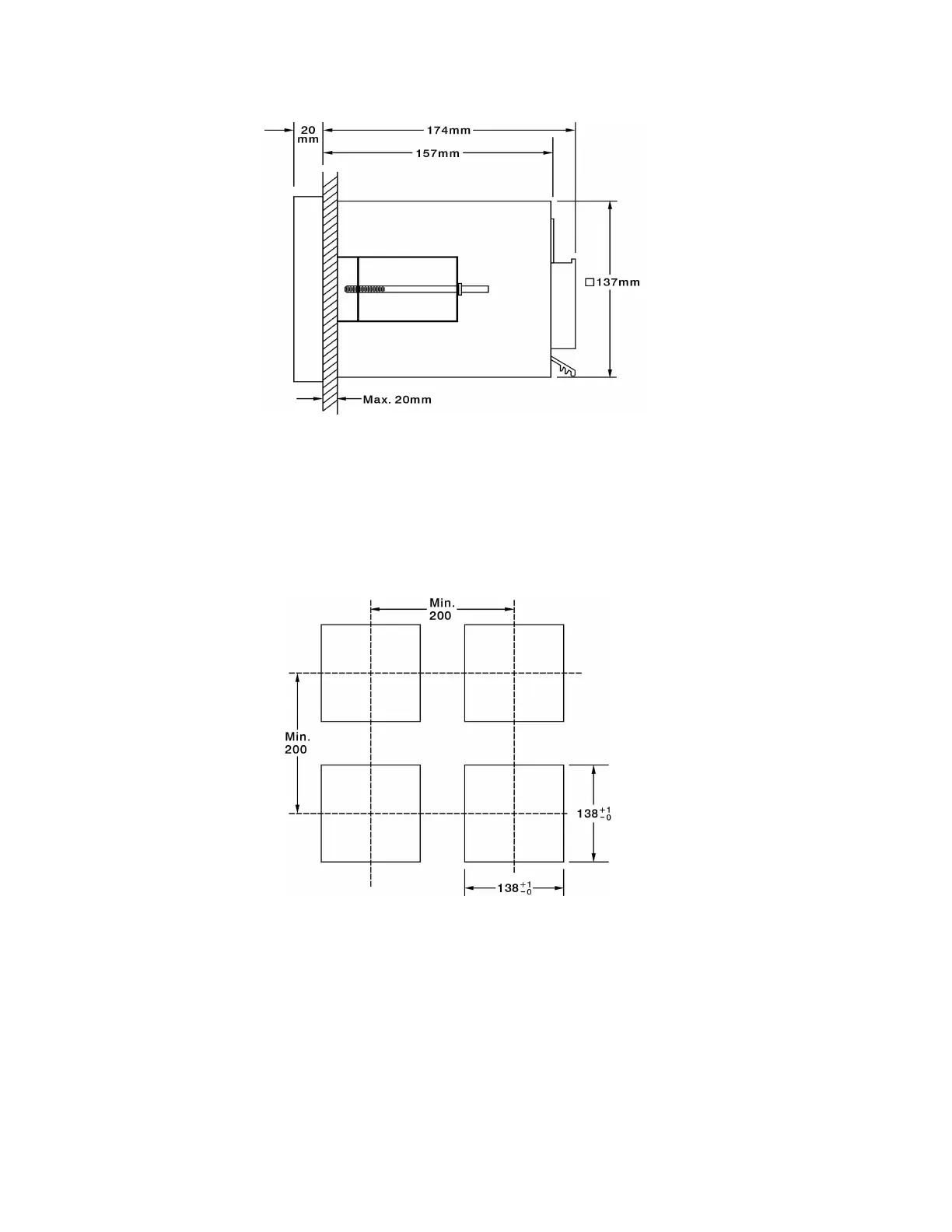

The right side
Figure 2 - 2
Panel Cutout ( standard DIN size 138 mm x 138 mm )
Figure 2 - 3
Note:
 Do not over tighten mounting clamp screws that could result in distortion of the case.
 There is no mounting angle restriction.
