Bench top / Portable style
If the recorder is used for Bench Top or portable purpose, then the assembly Kit MK183B (two ears, one
handle, two feet included) is required. Assemble as follows,
Firstly, put the right ear FV-R on the right hand side of metal case, and slide it into the case by pushing in
direction as shown in Figures 2-4 through Figure 2-8. Ensure that the ear is firmly plugged into case. Do
the same with the left ear FV-L.

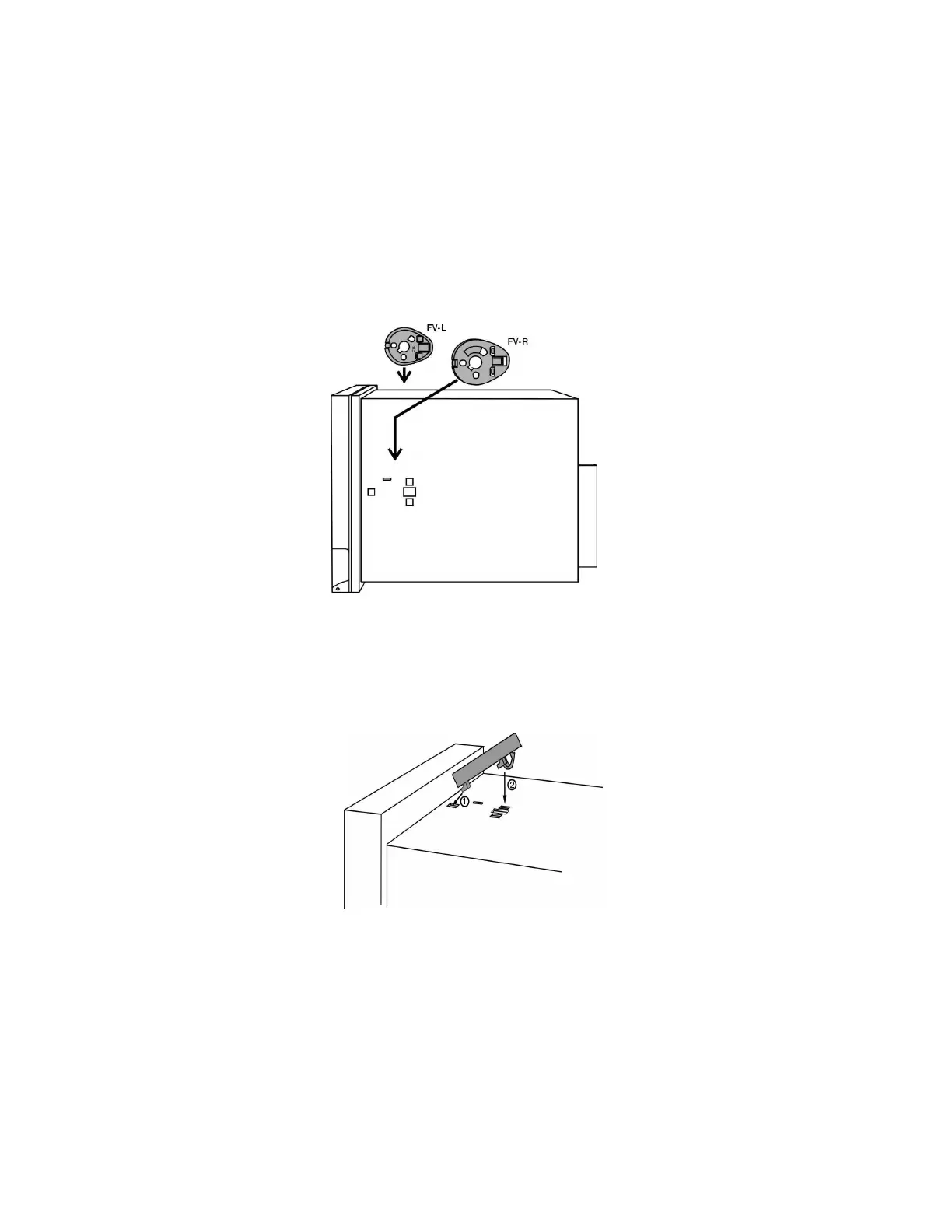

Figure 2 - 4
Figure 2 - 5
