ELECTRIC SYSTEM
KUKJE MACHINERY CO., LTD.
173
(6) Starter

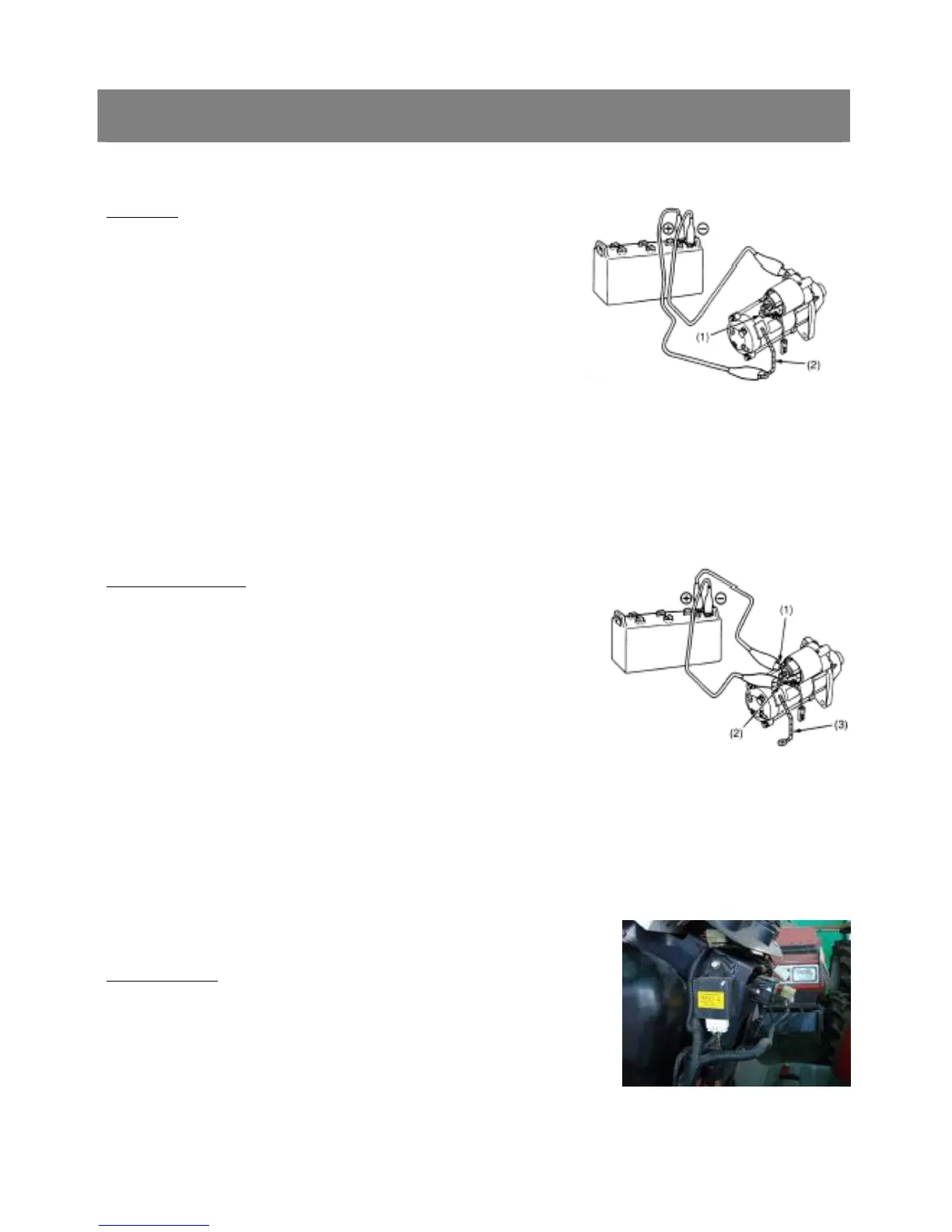

Motor Test
『CAUTION』
Secure the starter to prevent it from jumping up and down
while testing the motor.
1. Disconnect the battery negative cable from the battery.
2. Disconnect the battery positive cable and the leads form the
starter M terminal.
3. Remove the starter from the engine,.
4. Disconnect the connecting lead (2) from the starter C terminal (1).
5. Connect a jumper lead from the connecting lead (2) to the battery positive terminal post.
6. Connect a jumper lead momentarily between the starter motor housing and the battery negative terminal
post.
7. If the motor does not run, check the motor.
Magnetic Switch Test
1. Disconnect the battery negative cable from the battery.
2. Disconnect the battery positive cable and the leads from the starter
M terminal.
3. Remove the starter from the engine.
4. Disconnect the connecting lead (3) from the starter C terminal (2).
5. Connect a jumper lead from the starter S terminal (1) to the battery
positive terminal post.
6. Connect a jumper lead momentarily between the starter C terminal (2) and the battery negative terminal
post.
7. If the pinion gear does not pop out, check the magnetic switch.
Note
This test should be carried out for a short time, about 3 to 5 seconds.
(7) Start Glow Timer
Start Glow Timer
1. Check the “Engine Starting Conditions” and Automatic Engine Stop
Conditions”
2. If the tractor does not operate appropriately, checkall parts according to
the “1.TOUBLESHOOTING” section.
3. If all parts except the controller (1) is not defective, replace the controller (1).
