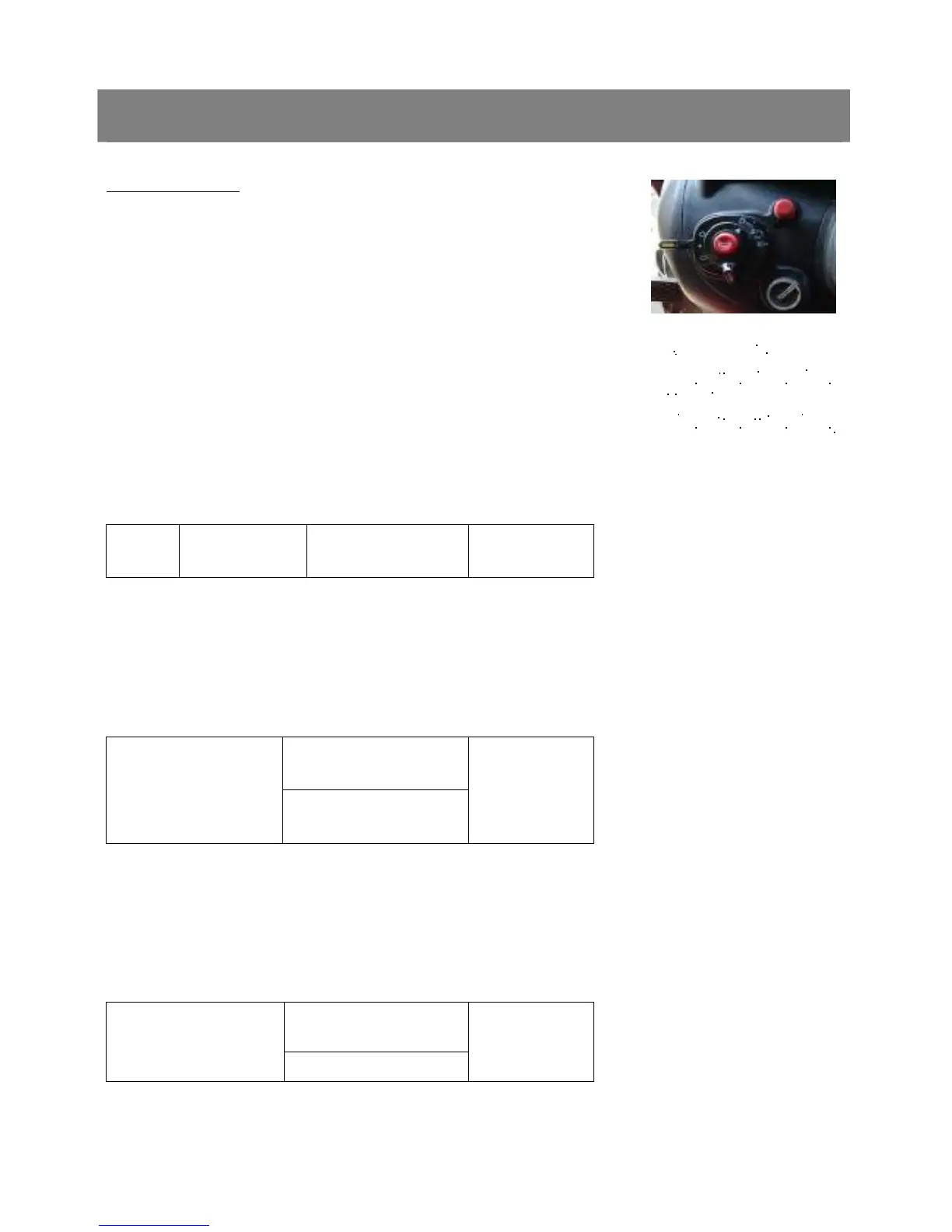

(8) Combination Switch
Combination Switch
1. Remove the meter panel, and disconnect the combination switch connector.
2. Remove the combination switch (1) and perform the following checks 1) to
6).
1) Connector Voltage
1. Measure the voltage with a voltmeter across the connector B1 terminal and chassis when the main switch
is “ON” position.
2. If the voltage differs from the battery voltage, the wiring harness and main switch is faulty.
Voltage
Main switch at
“ON” position
B! terminal – Chassis Battery voltage
2) Head Light Switch Continuity when Setting Switch at OFF Position
1. Set the light switch to the OFF position.
2. Measure the resistance with an ohmmeter across the B1 terminal to the T terminal, the B1 terminal to the
terminal 1.
3. If infinity is not indicated, the head light switch is faulty.
B1 terminal –
T terminal
Resistance
(Switch at OFF position
B1 terminal –
1 terminal
Infinity
3) Head Light Switch Continuity when Setting Switch at On Position
1. Set the light switch to the ON position.
2. Measure the resistance with an ohmmeter across the B1 terminal to the T terminal and the B1 terminal to
the terminal 1.
3. If 0 Ω is not indicated, the head light switch is faulty.
B1 terminal –T terminal
Resistance
(Switch at ON position)
B1 terminal –1 terminal
0 Ω
