ELECTRIC SYSTEM
KUKJE MACHINERY CO., LTD.
180

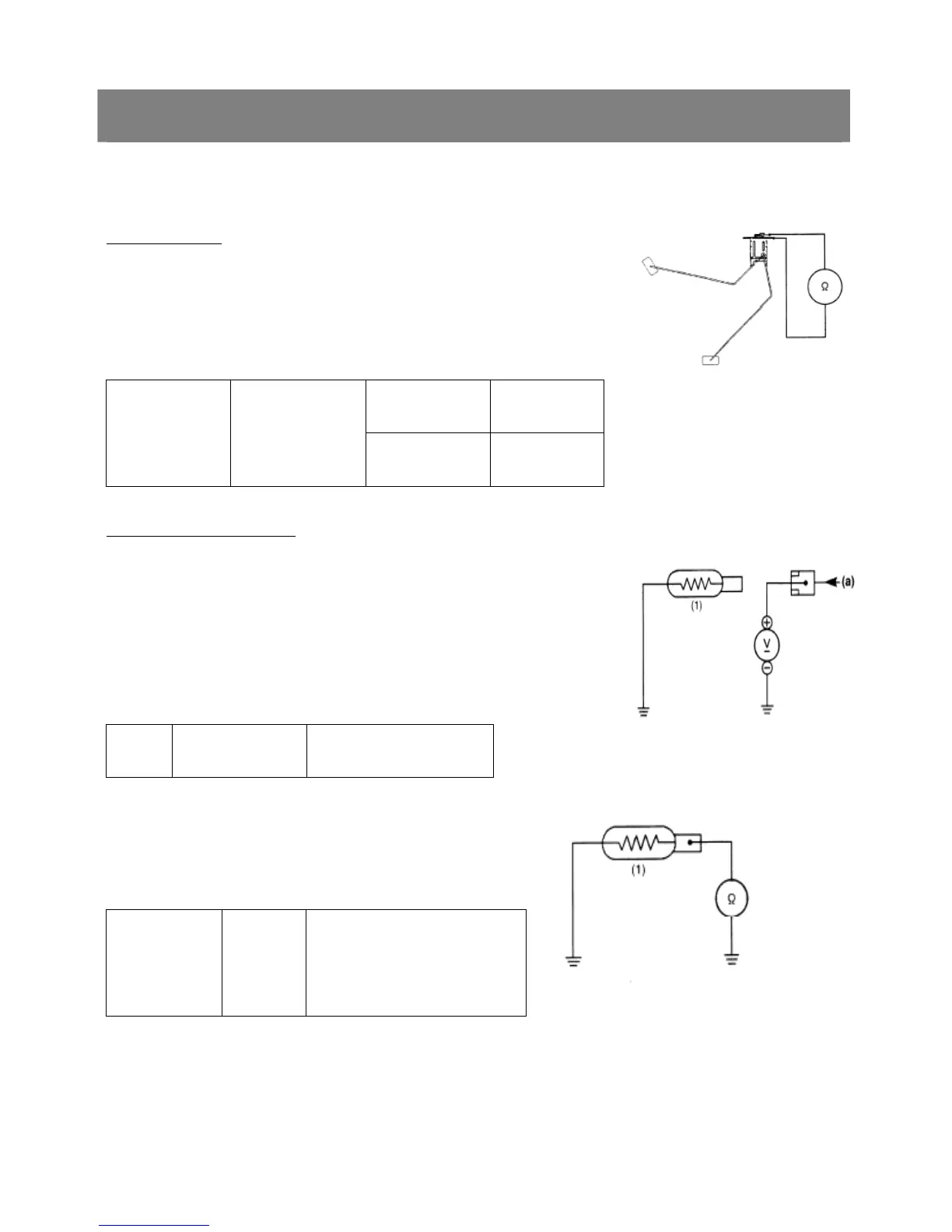

(12) Gauges
Fuel Level Sensor
1) Sensor Continuity
1. Remove the fuel level sensor from the fuel tank.
2. Measure the resistance with an ohmmeter across the sensor terminal and
its body.
3. If the reference values are not indicated, the sensor is faulty.
Resistance
(Sensor terminal
Reference value Float at upper-
most position
1 to 5 Ω
Float at lower-
most position
103 to 117 Ω
Coolant Temperature Sensor
1) Lead Terminal Voltage
1. Disconnect the lead from the coolant temperature sensor after turning
the main switch off.
2. Turn the main switch on and measure the voltage with a voltmeter
across the lead terminal and the chassis. If the voltage differs from the
battery voltage, the wiring harness fuse or coolant temperature gauge is
faulty.
Voltage
Lead Terminal –
Chassis
Approx. battery voltage
2) Sensor continuity
1. Measure the resistances with an ohmmeter across the sensor
terminal and the chassis.
2. If the reference value is not indicated, the sensor is faulty.
Resistance
(sensor
terminal–
Chassis)
Reference
value
Approx. 12.2Ω at 130℃(266℉)
Approx. 23.6Ω at 105℃(221℉)
Approx. 51.9Ω at 80℃(176℉)
Approx. 153.9Ω at 50℃(266℉)
(1) Coolant Temperature (a) From Temperature Gauge
8. CHECKING DISASSEMBLING AND SERVICING
