Fuel Gauge and Coolant Temperature Gauge Continuity
1. Remove the panel board from the tractor.
2. Check the continuity with an ohmmeter across
the U terminal(2) and + terminal(3) and across the
U terminal(2) and - terminal(1).
3. If infinity is indicated, the coolant temperature
is faulty.
4. Check the continuity with an ohmmeter across the U terminal(5) and + terminal(6) and across the U
terminal(5) and - terminal(4).
5. If infinity is indicated, the fuel gauge is faulty.

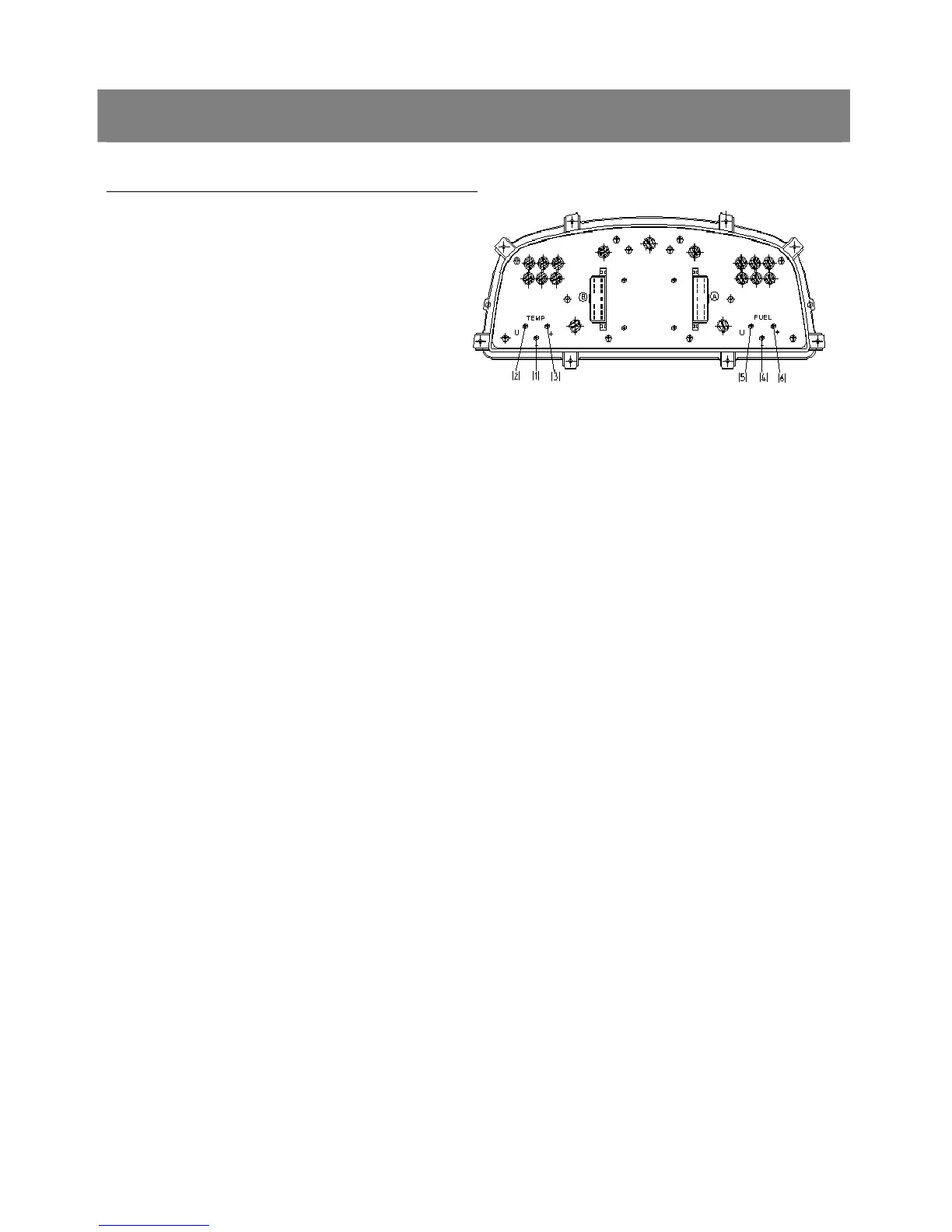

(1) - terminal(Temperature) (4) - terminal(Fuel)
(2) U terminal(Temperature) (5) U terminal(Fuel)
(3) + terminal(Temperature) (6) + terminal(Fuel)
