HOW TO USE THIS MANUAL
1. Target readers
This manual is intended for technicians with mid to high level of service knowledge and skills for BRANSON
tractors. Make sure to understand this manual fully for rapid and accurate inspection and service.
2. Order of contents
This manual is a single book for the 3015R(h)/3515R(h)/4015R(h) and F36R(h)/F42R(h) tractor and contains
several useful chapters such as General Information, Engine, Clutch, Transmission, Front Axle, Hydraulic
System, Electric System. Information and diagrams in this manual are described based on the standard model
so they may be different from your vehicle due to different specifications by models. However, the same
instructions should be followed for service.

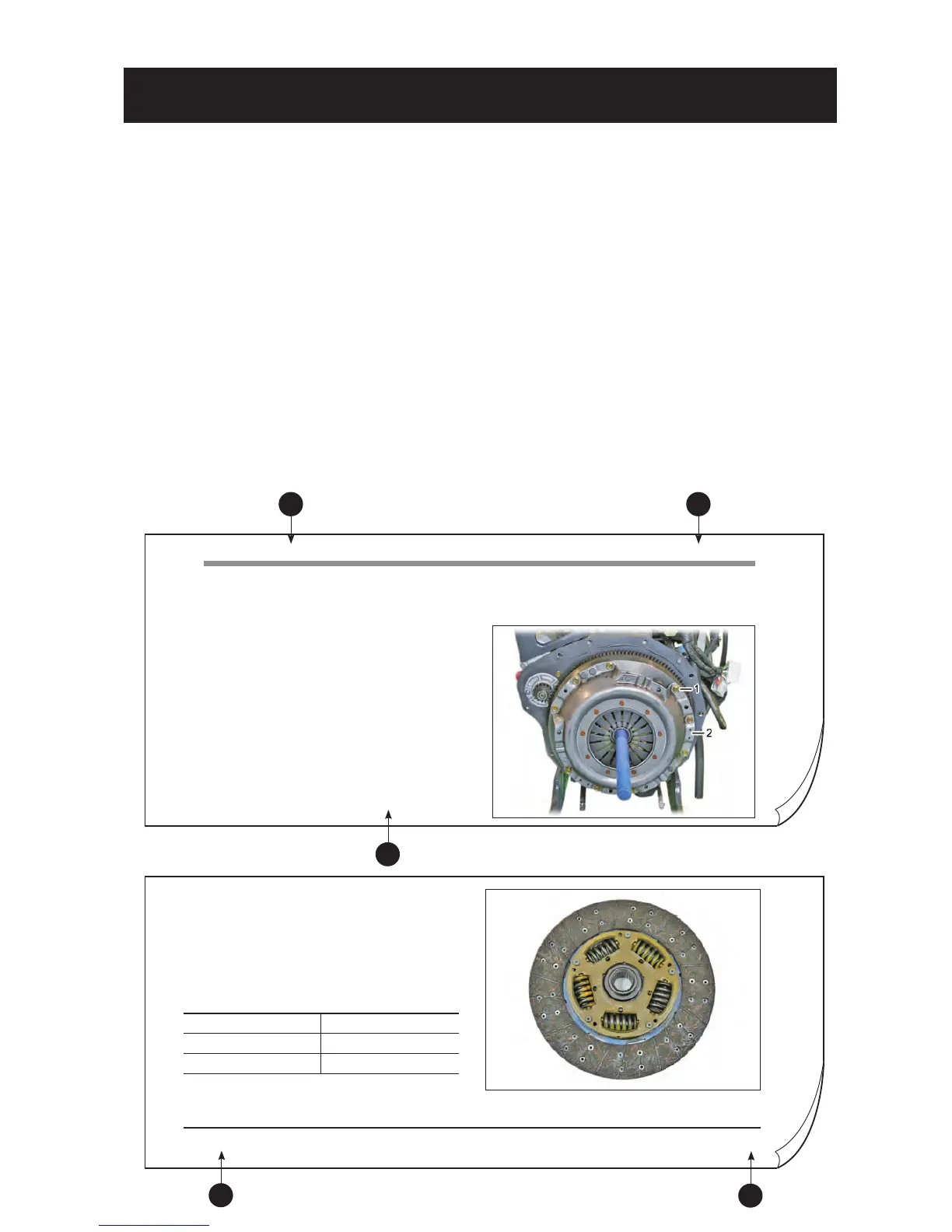

3. Body structure of this manual
This manual is structured as follows:
< Lower section >
< Upper section >
CHAPTER 3 CLUTCH3015R(h)/3515R(h)/4015R(h)/F36R(h)/F42R(h) TRACTOR
3. DISASSEMBLY
3.1 CLUTCH HOUSING REMOVAL
1. Park the tractor on level ground and apply the hand
brake.
2. Disconnect the negative battery cable.
3. Drain the transmission fluid.
4. Remove the hood and propeller shaft.
5. Disconnect the hydraulic hose, wiring connector
and various cables between the vehicle body
and engine.
6. Place a stand under the clutch housing and a
portable jack under the engine oil pan.
3.2 CLUTCH DISASSEMBLY
K20W303A
3
-
8
42hW-201601
8. Unscrew the mounting bolt (1) from the cutch
housing and engine mounting flange. Then, push
the front axle section to separate it from the
clutch housing.
9. For more detailed disassembly procedures, refer
to the instructions for engine removal in Chapter 2.
ITEM TORQUE VALUE
M14 nut (10.9T) 16.5 kg.m (119.34 lbf.ft)
M14 bolt (10.9T) 16.5 kg.m (119.34 lbf.ft)
2. Remove the clutch disc.
K20W304A
