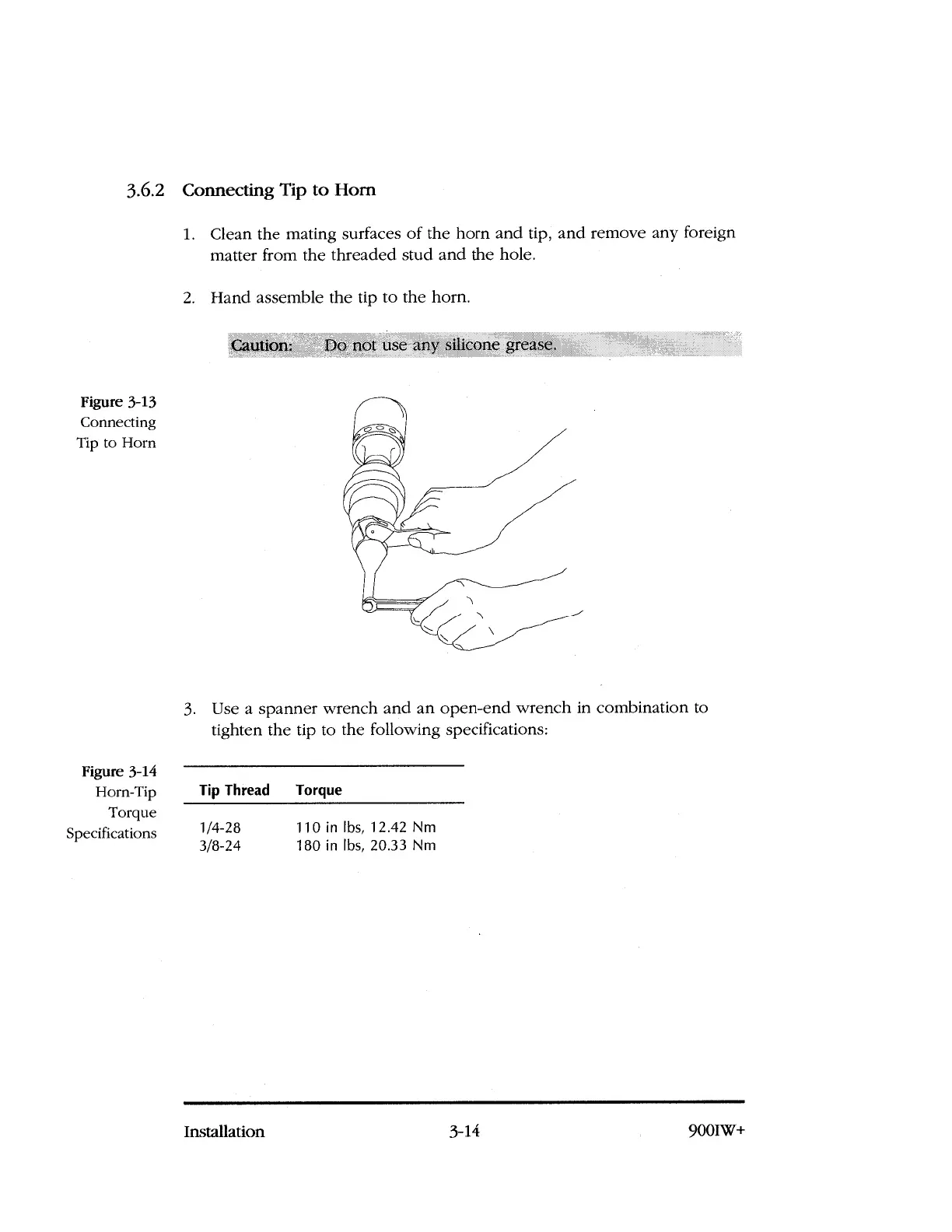

3.6.2 Connecting Tip to Horn
1.
Clean the mating surfaces of the horn and tip, and remove any foreign
matter from the threaded stud and the hole.
2.
Hand assemble the tip to the horn.
Caution:
Do not use any silicone grease.
Figure 3-13
Connecting
Tip to Horn
3.
Use a spanner wrench and an open-end wrench in combination to
tighten the tip to the following specifications:
Figure 3-14
Horn-Tip
Tip Thread
Torque
Torque
Specifications
1/4-28
110 in lbs, 12.42 Nm
3/8-24
180 in Ibs, 20.33 Nm
Installation
3-14
900IW+
