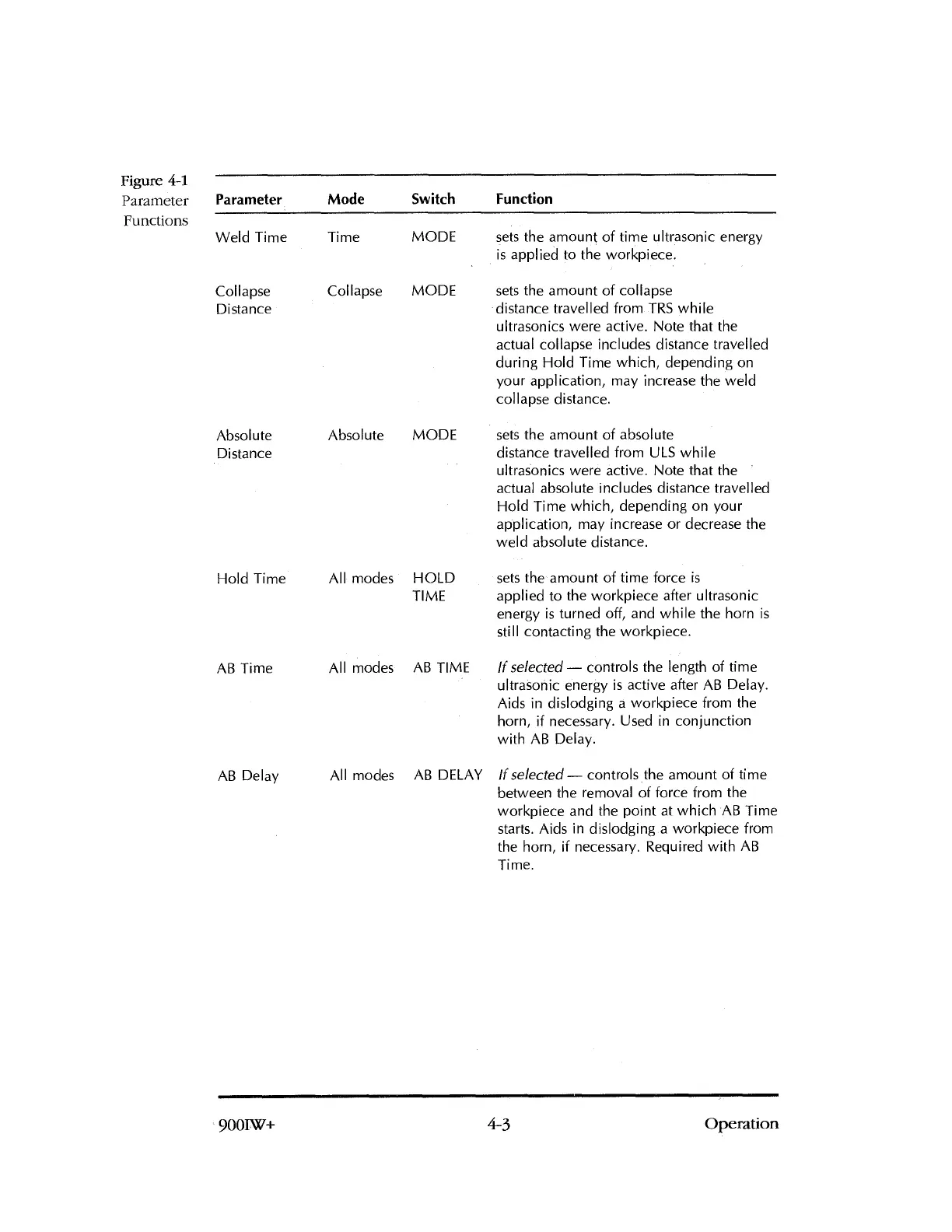

Figure 4-1
Parameter
Parameter Mode Switch Function
Functions
Weld Time
Time
MODE
sets the amount of time ultrasonic energy
is applied to the workpiece.
Collapse
Collapse
MODE
sets the amount of collapse
Distance
distance travelled from TRS while
ultrasonics were active. Note that the
actual collapse includes distance travelled
during Hold Time which, depending on
your application, may increase the weld
collapse distance.
Absolute
Absolute
MODE
sets the amount of absolute
Distance
distance travelled from ULS while
ultrasonics were active. Note that the
actual absolute includes distance travelled
Hold Time which, depending on your
application, may increase or decrease the
weld absolute distance.
Hold Time
All modes HOLD
sets the amount of time force is
TIME
applied to the workpiece after ultrasonic
energy is turned off, and while the horn is
still contacting the workpiece.
AB Time
AB Delay
All modes AB TIME
If selected
—
controls the length of time
ultrasonic energy is active after AB Delay.
Aids in dislodging a workpiece from the
horn, if necessary. Used in conjunction
with AB Delay.
All modes AB DELAY
If selected
—
controls the amount of time
between the removal of force from the
workpiece and the point at which AB Time
starts. Aids in dislodging a workpiece from
the horn, if necessary. Required with AB
Time.
9001W+
4-3
Operation
