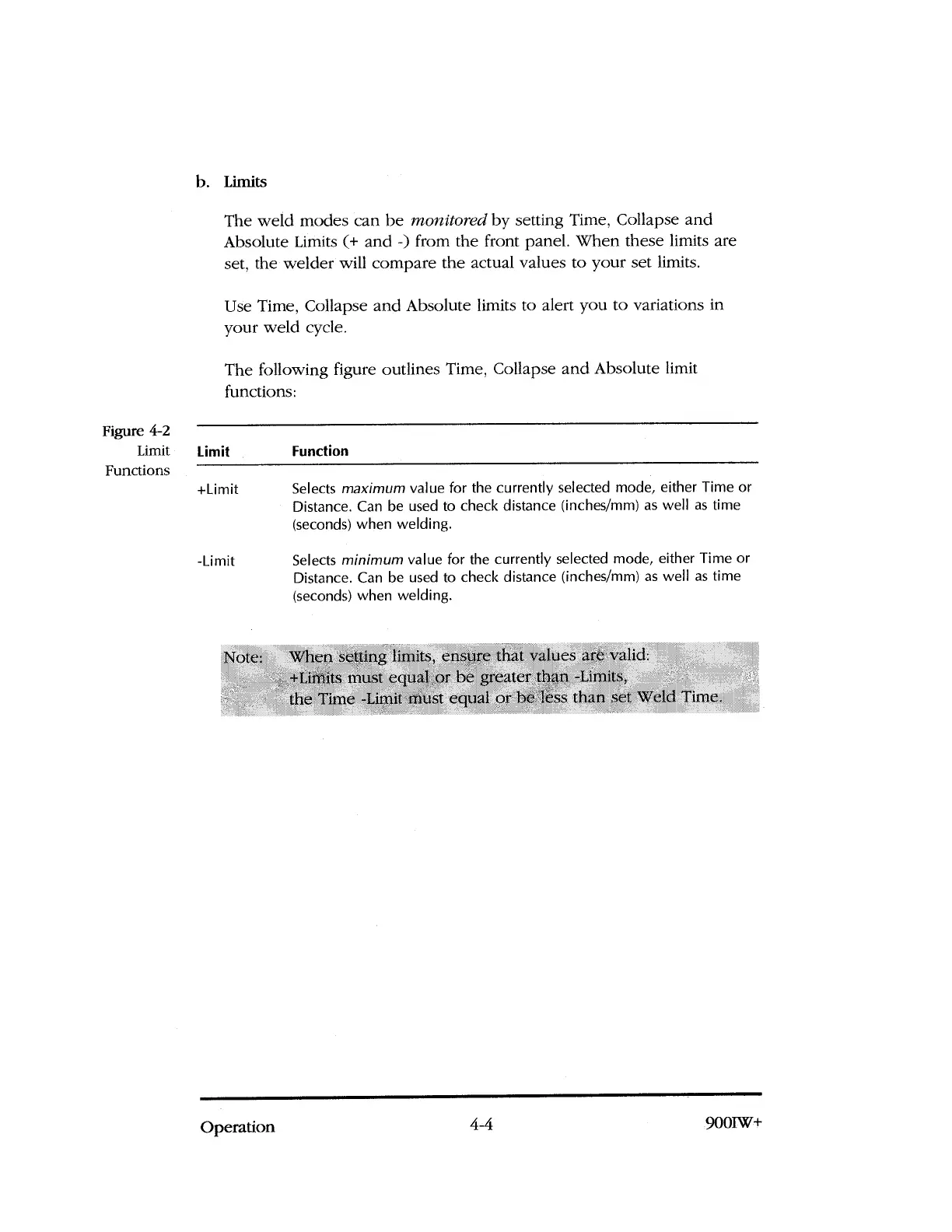

b.
Limits
The weld modes can be
monitored
by setting Time, Collapse and
Absolute Limits (+ and -) from the front panel. When these limits are
set, the welder will compare the actual values to your set limits.
Use Time, Collapse and Absolute limits to alert you to variations in
your weld cycle.
The following figure outlines Time, Collapse and Absolute limit
functions:
Figure
4-2
Limit
Limit
Function
Functions
+Limit
-Limit
Selects
maximum
value for the currently selected mode, either Time or
Distance. Can be used to check distance (inches/mm) as well as time
(seconds) when welding.
Selects
minimum
value for the currently selected mode, either Time or
Distance. Can be used to check distance (inches/mm) as well as time
(seconds) when welding.
Note:
When setting limits, ensure that values are valid:
+Limits
must equal or be greater than -Limits,
the Time -Limit must equal or be less than set Weld Time.
