Description of the Unit
4-2
Digital Compact
• Electronic Amplitude Control
Allows adjusting of the amplitude from 100% down to 50% applying
one of the following methods:
- changing the amplitude by adjusting the potentiometer located
on the front of the DC power supply module (default setting), or
- applying a voltage and adjusting the amplitude proportionally
(using J3 interface). For this purpose, you must change the
jumper setting within the power supply.

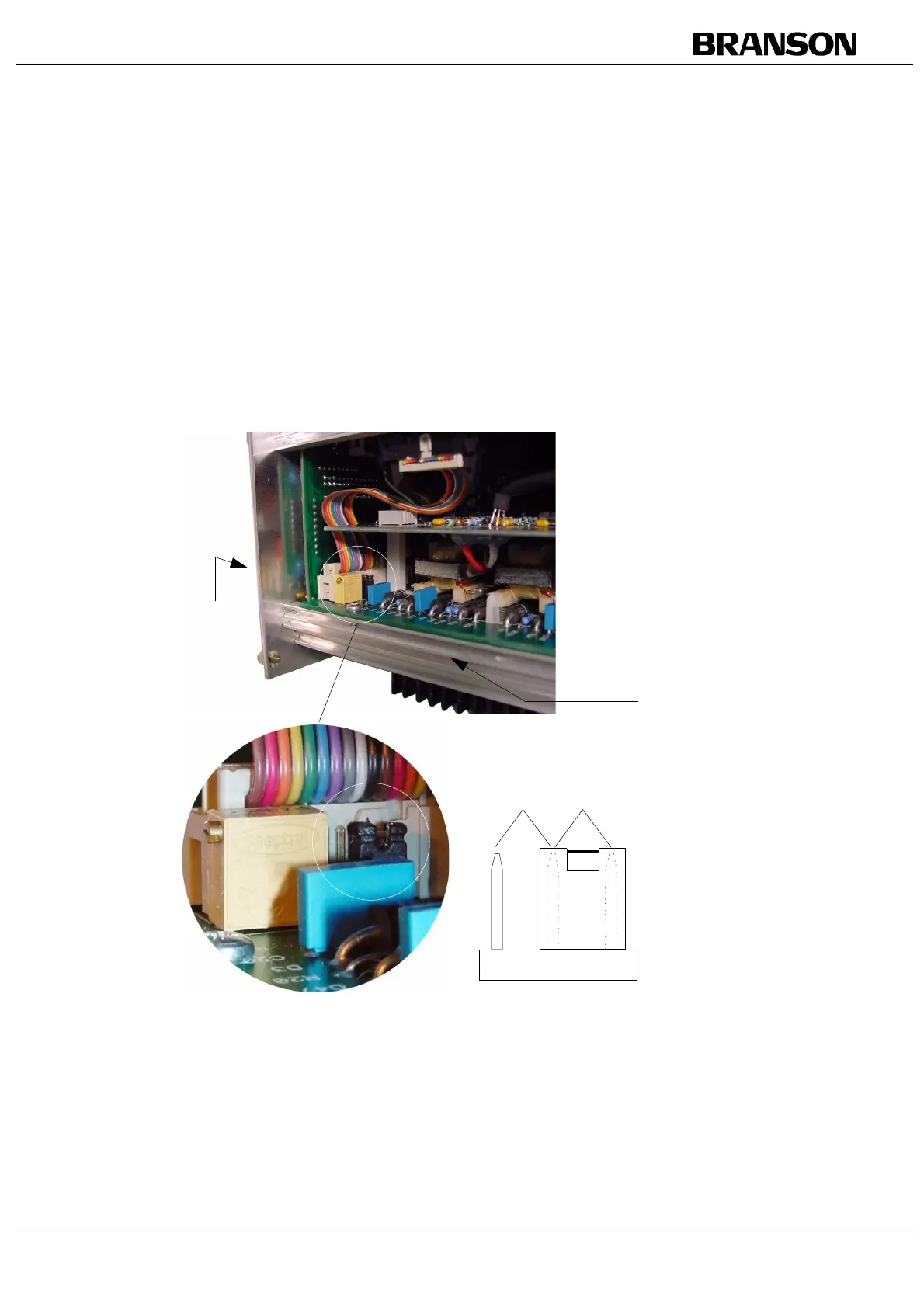

Fig. 4-1 Jumper for amplitude control (set to internal in this case)
Front
Bottom
Amplitude Control
external internal
