Branson DC 480 - Page 34

Description of the Unit
4-6
Digital Compact
4.4.2 DC Ultrasonic Power Supply Module DC 222 (20kHz)

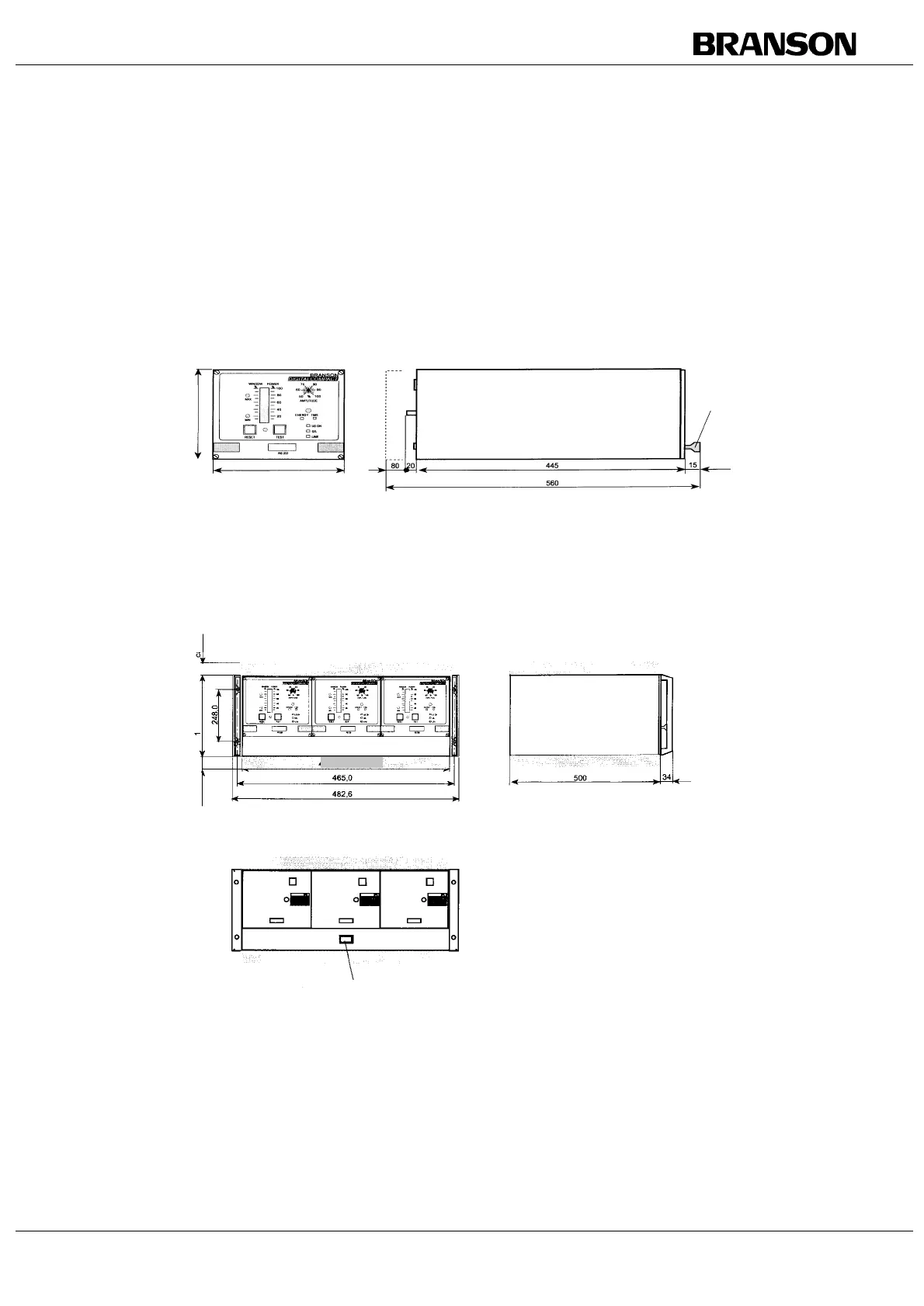

Fig. 4-3 Dimensions of the DC 222 power supply module
Side view
Front
(Dimensions in mm)
Single module
19“ drawer with 3 modules
Front
Side view
Rear
Electrical power supply
Fan
Handle
142,24 (28 DU)
Clearance
Clearance for
ventilation
426,72 (84 DU)
approx. 50
approx. 50
177,0 (4 HU)
133,4 (3 HU)
