Description of the Unit
4-11
Digital Compact
2002 BRANSON Ultrasonics Digital Compact Version 22.08.2002
4.6.2 Rear of the DC Power Supply

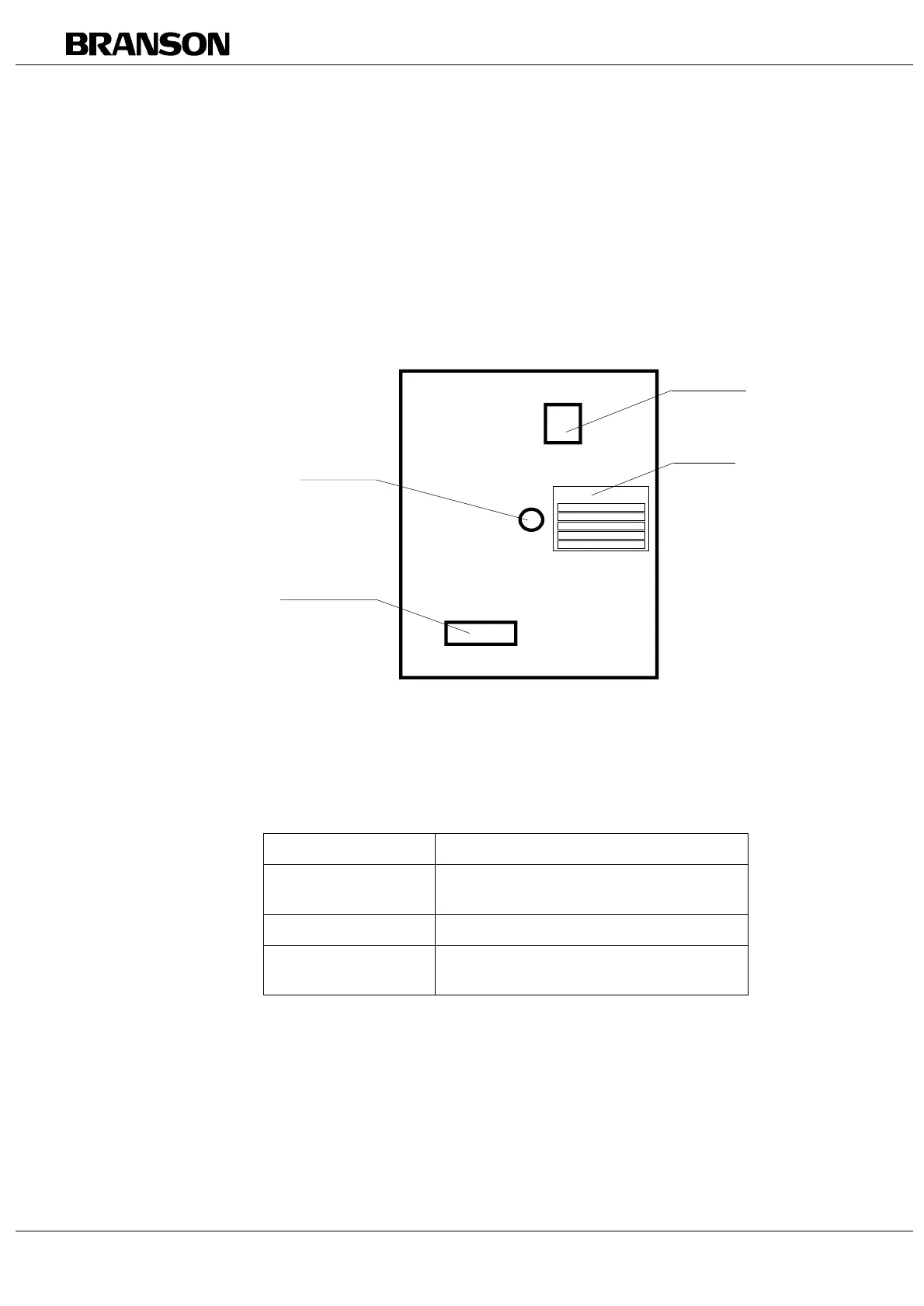

Fig. 4-6 Rear of the DC power supply
Tab. 4-5 Connectors on the rear of the DC Power Supply Module
Connector Function
J1 Mains supply
connector
Connection to mains supply
J2 RF connector Converter connector
J3 Control/ Alarm
connector
For pin assignment, please refer to Tab. 6-
3.
CE
Model
Powe r
Input
Serial No.
Year of Manufacture
UPS 480
800 W
200-245 V, 5 A, 50/60 Hz
J3
J2
J1
RF connector
Control/alarm
connector
Type plate
Mains supply
connector
