CHAPTER 4 TRANSMISSION 3015R(h)/3515R(h)/4015R(h)/F36R(h)/F42R(h) TRACTOR
K42W416A
K42W417A
K42W418A
K42W419A
K42W420A
K42W421A

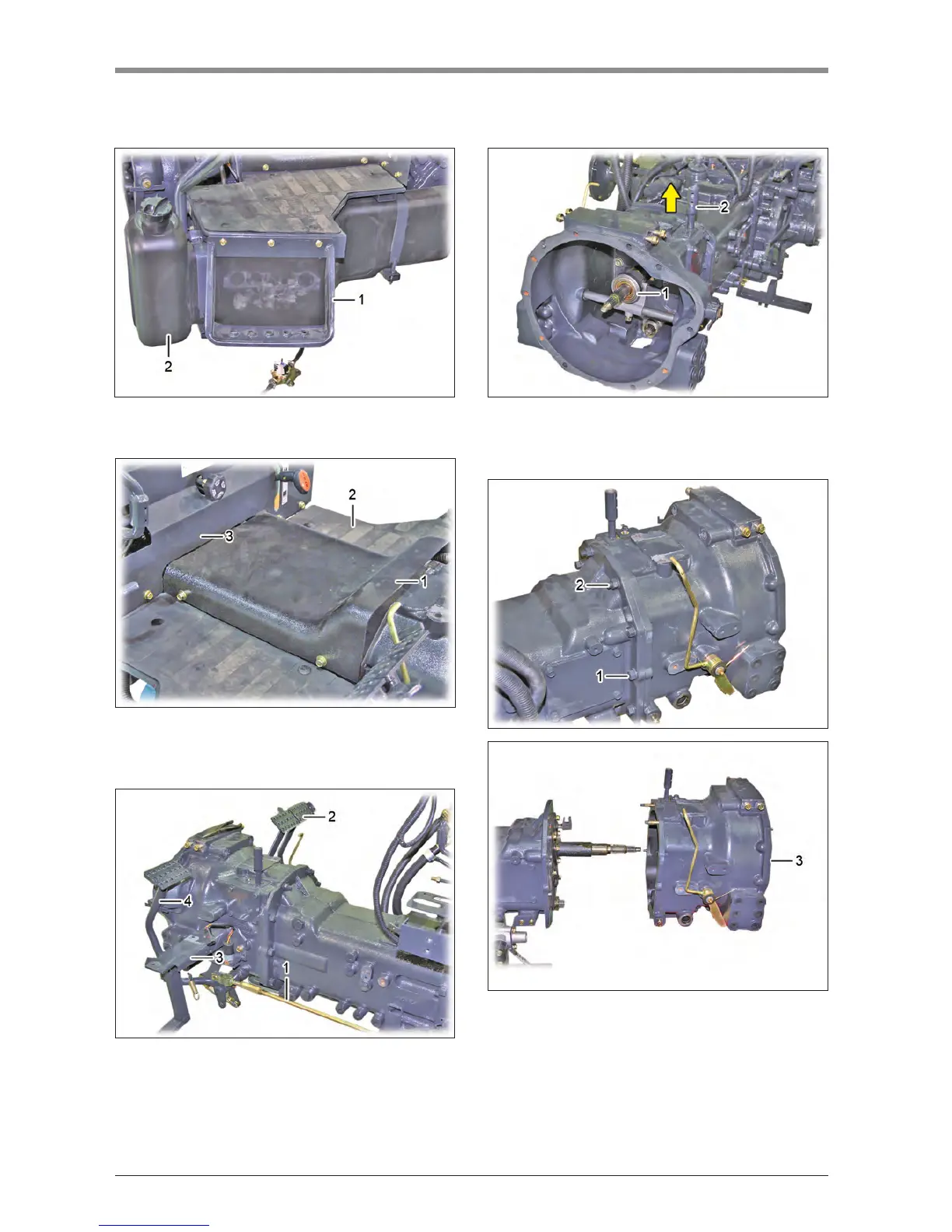

7. Removethefootstep(1)andfueltank(2).
8. Remove the transmission case cover (1), floor
mat(2)(LH,RH),dustcoverassembly(3).
9. Remove the brake rod (1), brake pedal (2),
footstep suppo r t as se mbly (3) and c lutch
pedal(4).
10.Remove the release bearing sleeve (1) and lift
theshuttleshaft(2)toseparateitfromthefork.
11.Unscrewtheclutchhousing&transmissioncase
mounting bolts (1)(8EA) & nuts (2)(2EA) and
removetheclutchhousing(3).
