CHAPTER 3 CLUTCH3015R(h)/3515R(h)/4015R(h)/F36R(h)/F42R(h) TRACTOR
42hW-201601
3

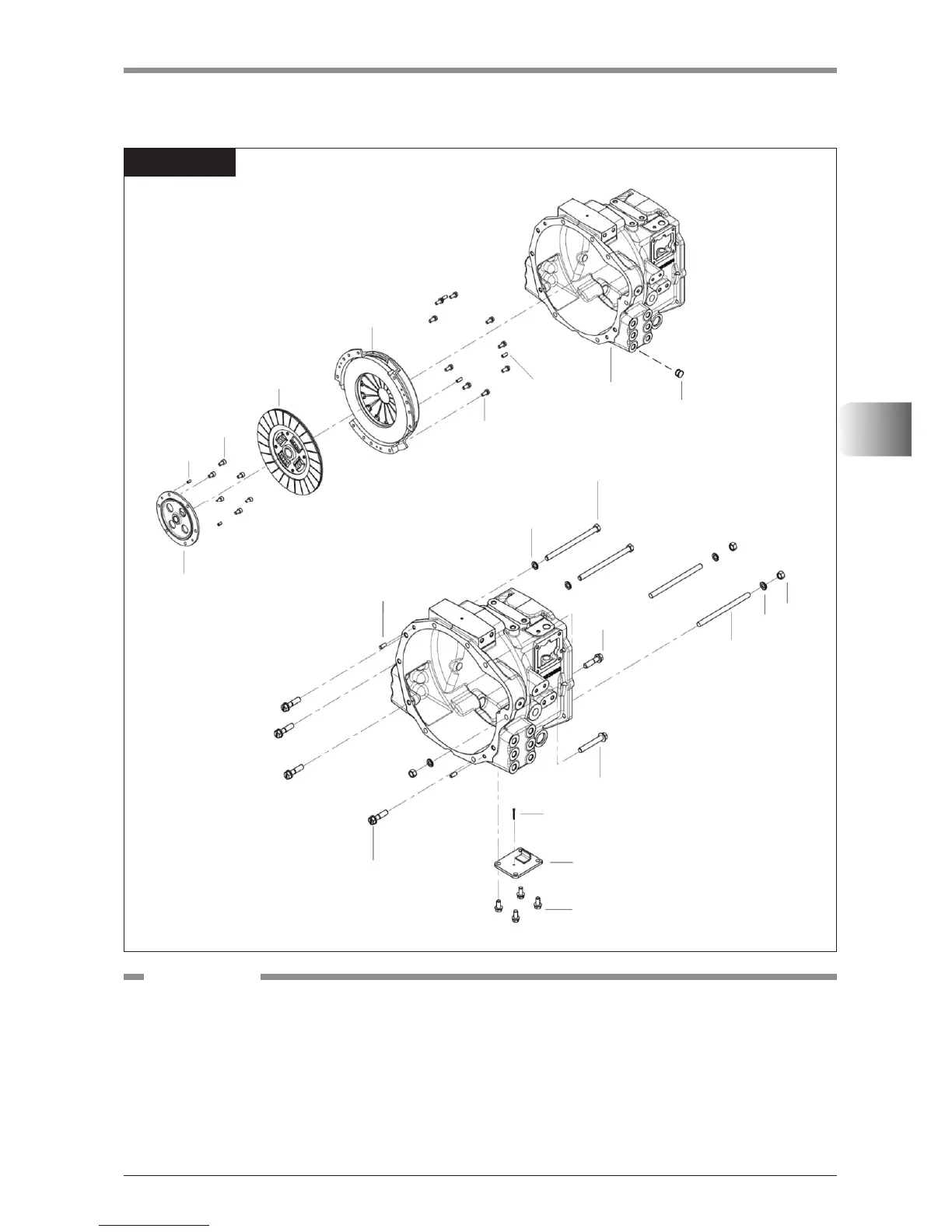

2. SECTIONAL VIEW FOR MAJOR COMPONENTS
2.1 CLUTCH HOUSING





















F42W303A
(1) Clutch housing
(2) Sleeve, PTO
(3) Spring pin
(4) Hexagon socket bolt
(5) Clutch disc ass’y
(6) Clutch cover ass’y
(7) Bolt w/washer
(8) Spring pin
(9) Stud bolt
(10) Spring washer
(11) Hex nut
(12) Hex bolt
(13) Hex bolt
(14) Hex bolt(SW)
(15) Pin
(16) Cotter pin
(17) Cover assy
(18) Hex ange bolt
(19) Pin, rubber
COMPONENTS
MEC. MODEL

Branson F42h Specifications
