CHAPTER 2 ENGINE3015R(h)/3515R(h)/4015R(h)/F36R(h)/F42R(h) TRACTOR
2

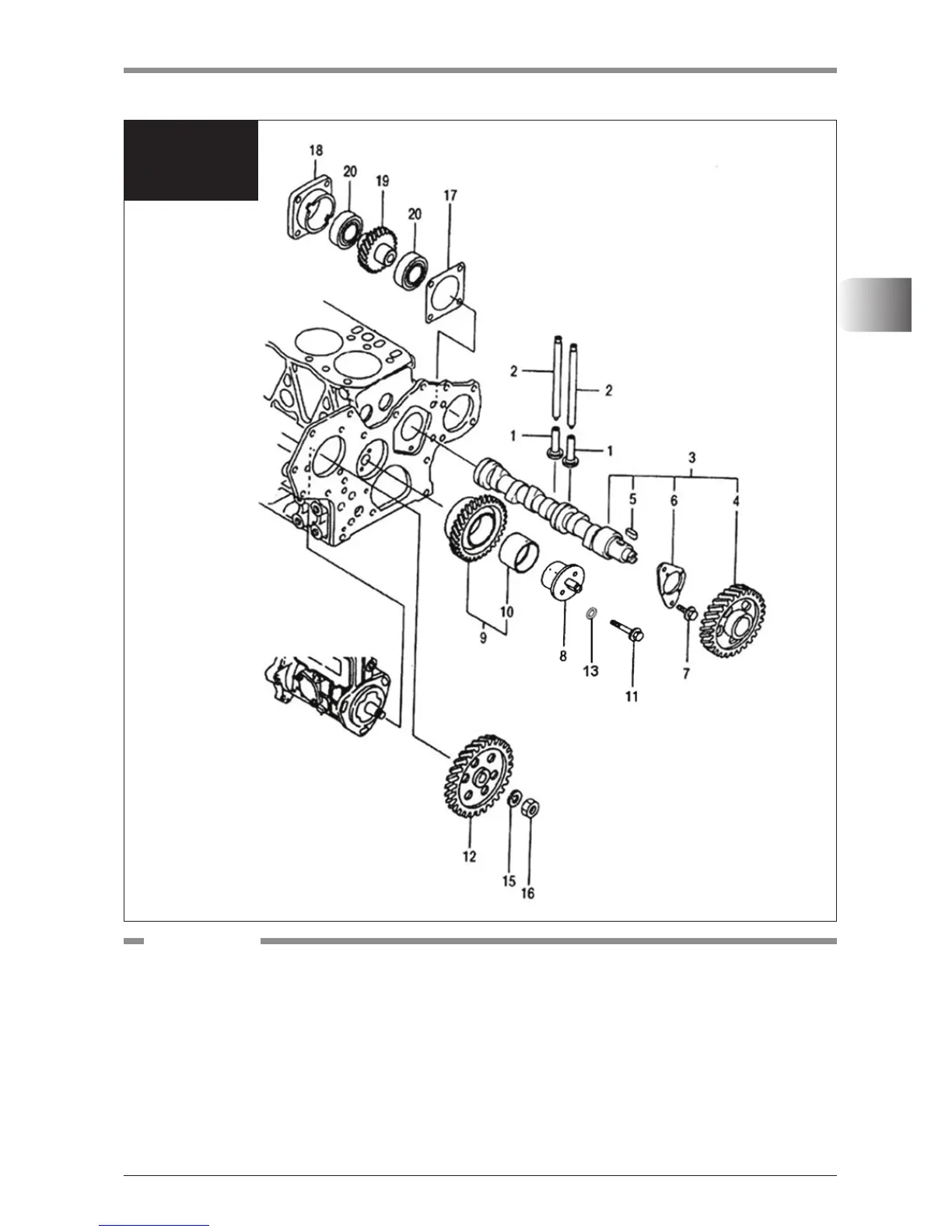

5.7 CAMSHAFT AND DRIVE GEAR
K25W2A67A
(1) Tappet
(2) Push rod
(3) Camshaft assembly
(4) Camshaft gear
(5) Sliding key
(6) Thrust bearing (camshaft)
(7) Hex. ange bolt
(8) Idle gear shaft
(9) Idle gear assembly
(10) Bushing (idle gear)
(11) Bolt (idle shaft)
(12) Fuel injection pump gear
(15) Spring washer
(16) Hex. nut
(17) Packing
(18) Hydraulic pump gear cover
(19) Hydraulic pump drive gear assembly
(20) Ball bearing (with deep groove)
COMPONENTS
A1700N4_ETR
A1700T2_ETR
A1700N4_UTR_4
A1700T2_UTR_4
