CHAPTER 1 GENERAL INFORMATION 3015R(h)/3515R(h)/4015R(h)/F36R(h)/F42R(h) TRACTOR
7. TRACTOR SPECIFICATIONS

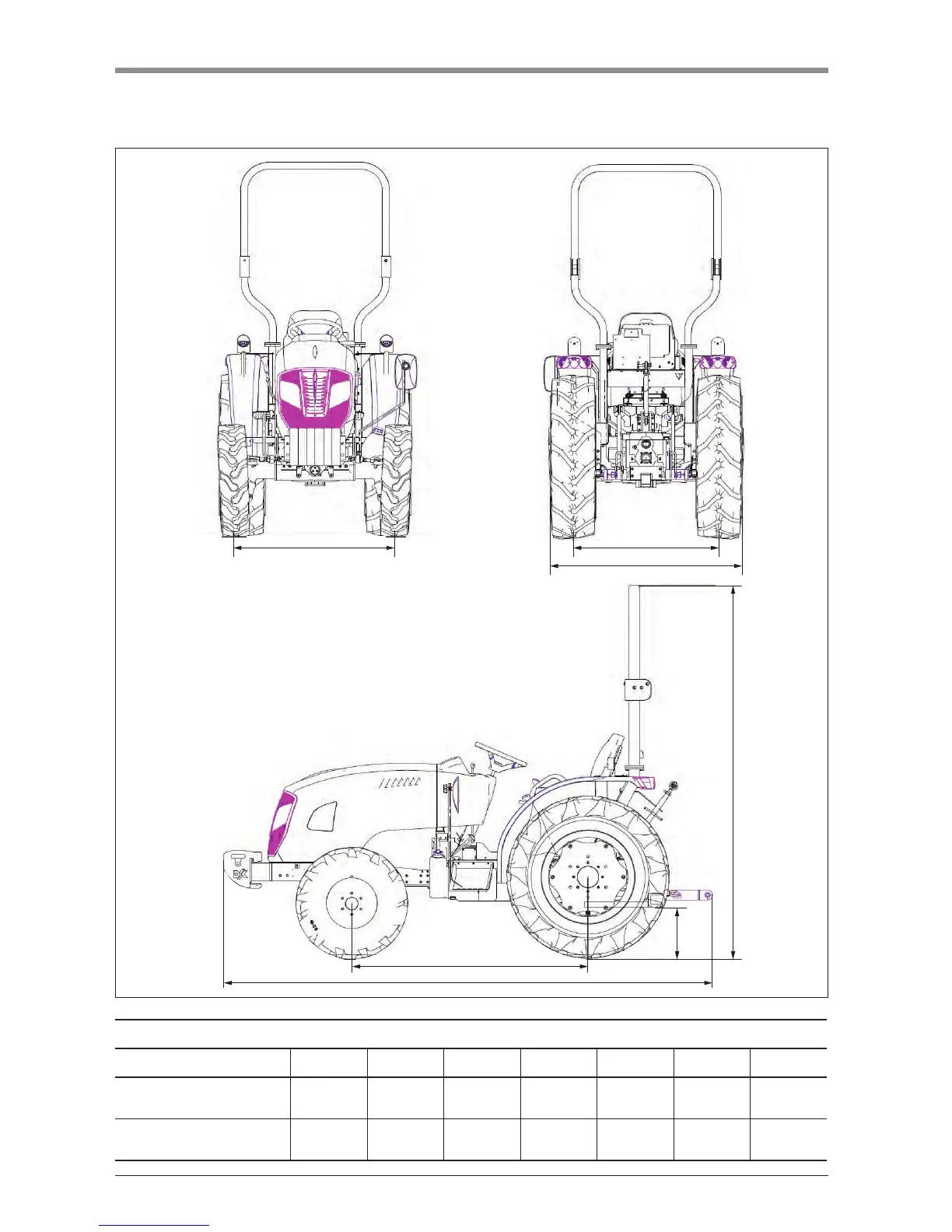

7.1 EXTERIOR DIMENSIONS
SIZE mm (in.)
Model A B C D E F G
3015R(h)/3515R(h)/F36R(h)
2,614
(102.9)
1,671
(65.79)
3,426
(134.88)
306
(12.05)
1,151
(45.31)
1,151
(45.31)
1,431
(56.34)
4015R(h)/F42R(h)
2,643
(104.06)
1,671
(65.79)
3,426
(134.88)
335
(13.19)
1,201
(47.28)
1,165
(45.87)
1,451
(57.13)
E F
G
A
D
B
C
F42W107A
