Branson F42h - Page 226

4
-
54
42hW-201601
CHAPTER 4 TRANSMISSION 3015R(h)/3515R(h)/4015R(h)/F36R(h)/F42R(h) TRACTOR
K42W445A
K42W446A
K42W447A
K42W448A

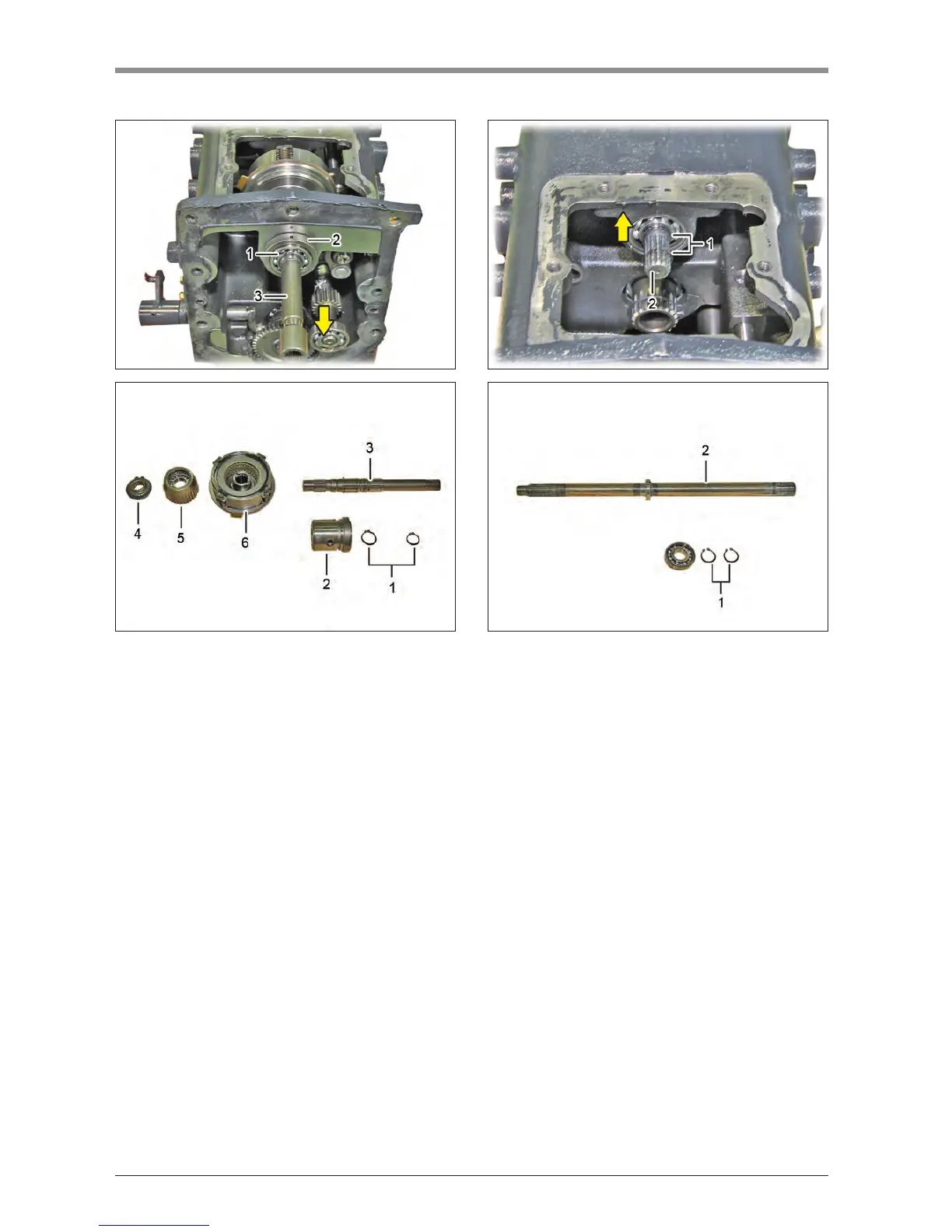

8. Remove the PTO clutch shaft snapring (1) and
sleeve(2).Then,removethePTOclutchshaft(3),
joint(4),clutch hub(5)PTOclutchassembly (6)
simultaneously.
9. Remove the mainPTO shaft snapring (1)(2EA)
andmainPTOshaft(2).
