CHAPTER 4 TRANSMISSION
4
3015R(h)/3515R(h)/4015R(h)/F36R(h)/F42R(h) TRACTOR
K42W459A
K42W460A
K42W461A
K42W457A
K42W458A

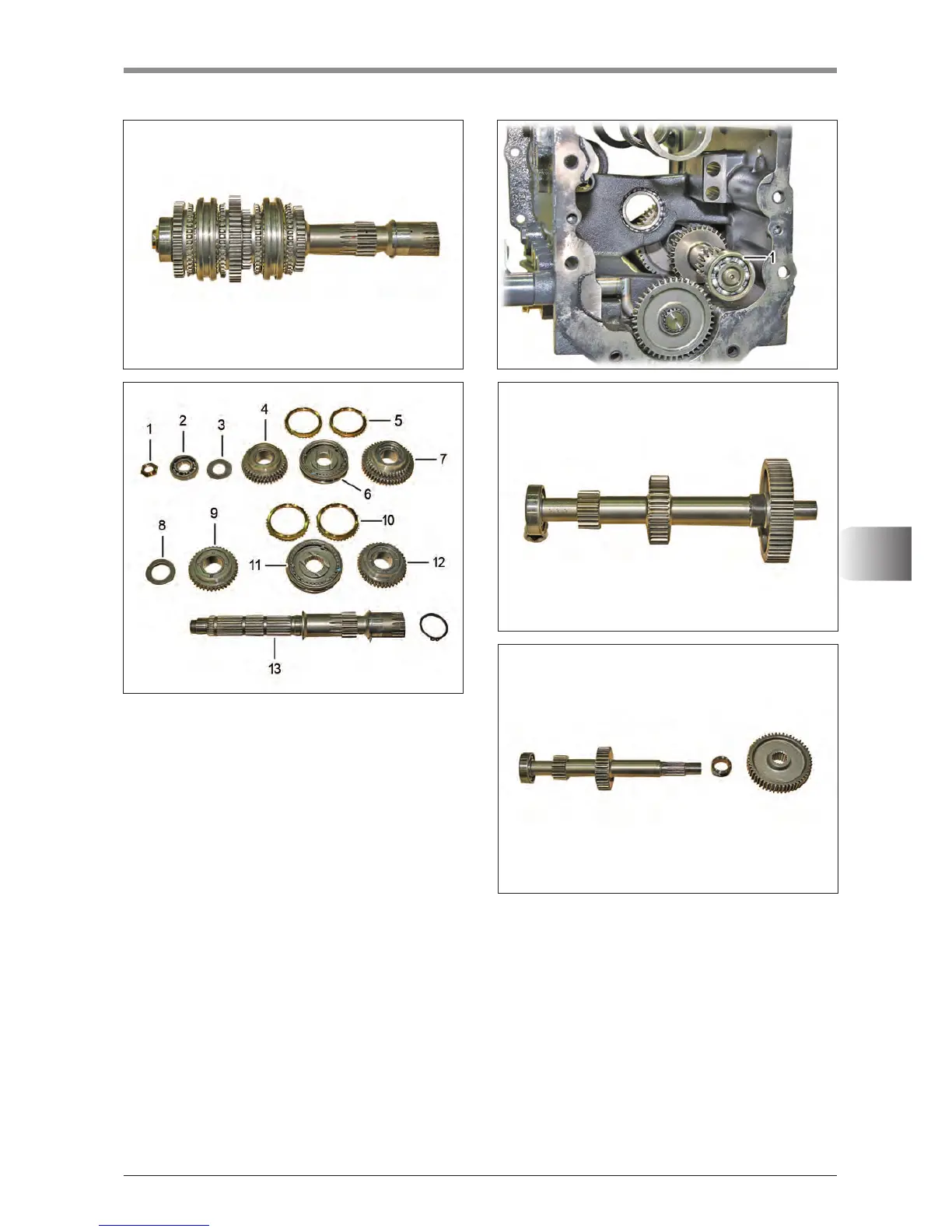

15.Removetherangeshiftdriveshaft(1).
14.Unscrew the mounting nut (1) and remove the
ballbearing(2),spacer(3),mainshift2nddriven
gear (4),synchronizer ring (5), sleeve (6), main
shift1stdrivengear(7),spacer(8),mainshift4th
drivengear(9),synchronizerring(10),sleeve(11),
mainshift3rddrivengear(12)fromthemainshift
drivenshaft(13)inorder.
