CHAPTER 6 HYDRAULIC SYSTEM
6
3015R(h)/3515R(h)/4015R(h)/F36R(h)/F42R(h) TRACTOR

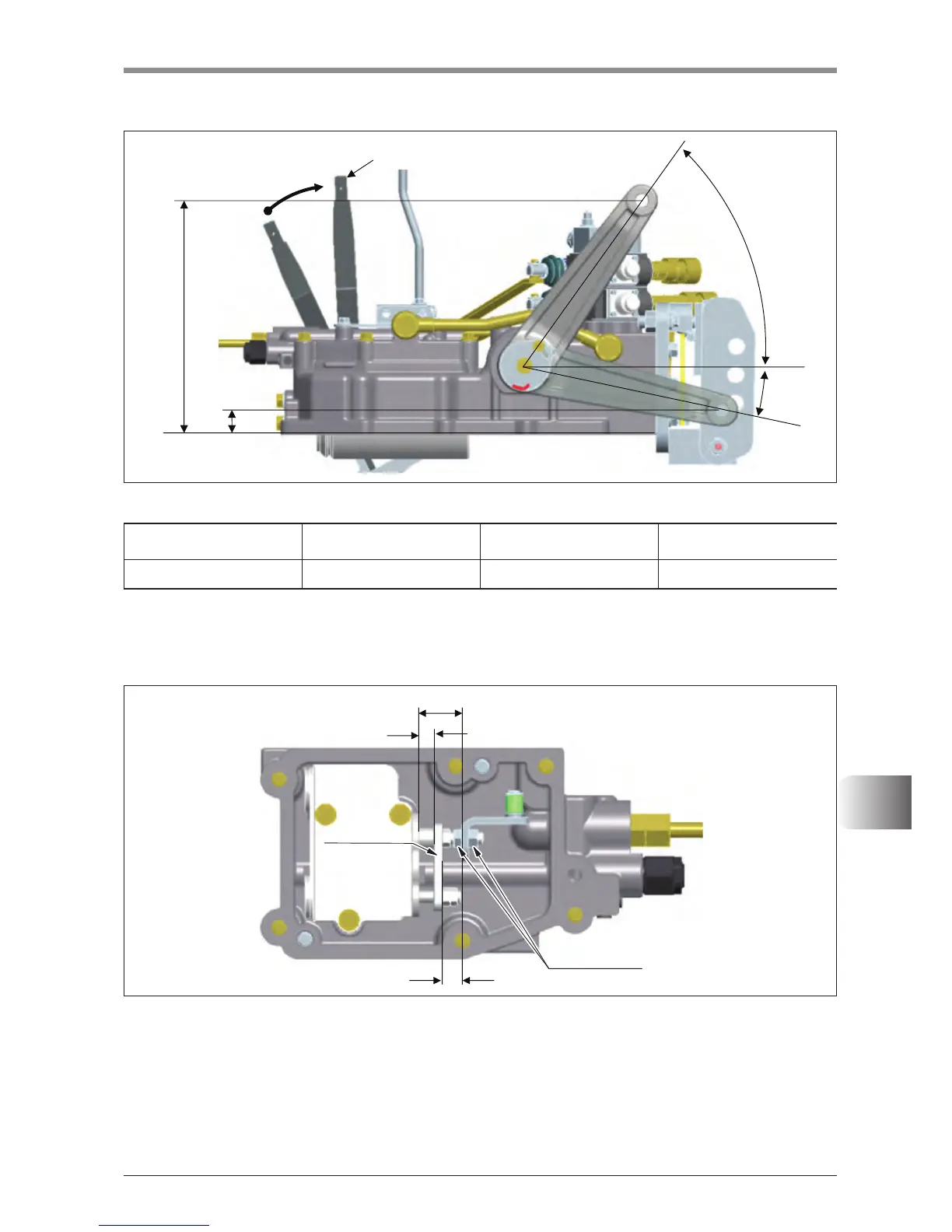

CONTROL VALVE SETTING BY DIFFERENT LIFT ARM ANGLES
▶
1. P lever pulled to the max. lifting position
3/HYHU
$
%
$

%

K25W6A61A
A
(LIFTING ANGLE)
A
(LIFTING HEIGHT)
B
(LOWERING ANGLE)
B
(LOWERING HEIGHT)
47.5°~49° 269~273.5 16.3°~17.3° 14.8~10.3
2.Iftheliftingangleorloweringangleisoutofthespeciedrange,adjustitwiththeclevisadjustingnut.(Initial
setting value: Y 29 mm or Z 13 mm with X 10 mm) (Repeat adjustment 2 to 3 times for precise setting.)
;
<
=
K25W6A62A
3. Apply LOCTITE to the adjusting nut before its installation.
- Excessive lifting height: decrease the length Y and Z
 -Insufcientliftingheight:increasethelengthYandZ
Adjusting nut
Plate (6T)
