Breckwell SP6000 - Control Panel

Chapter2–Operation
Page9


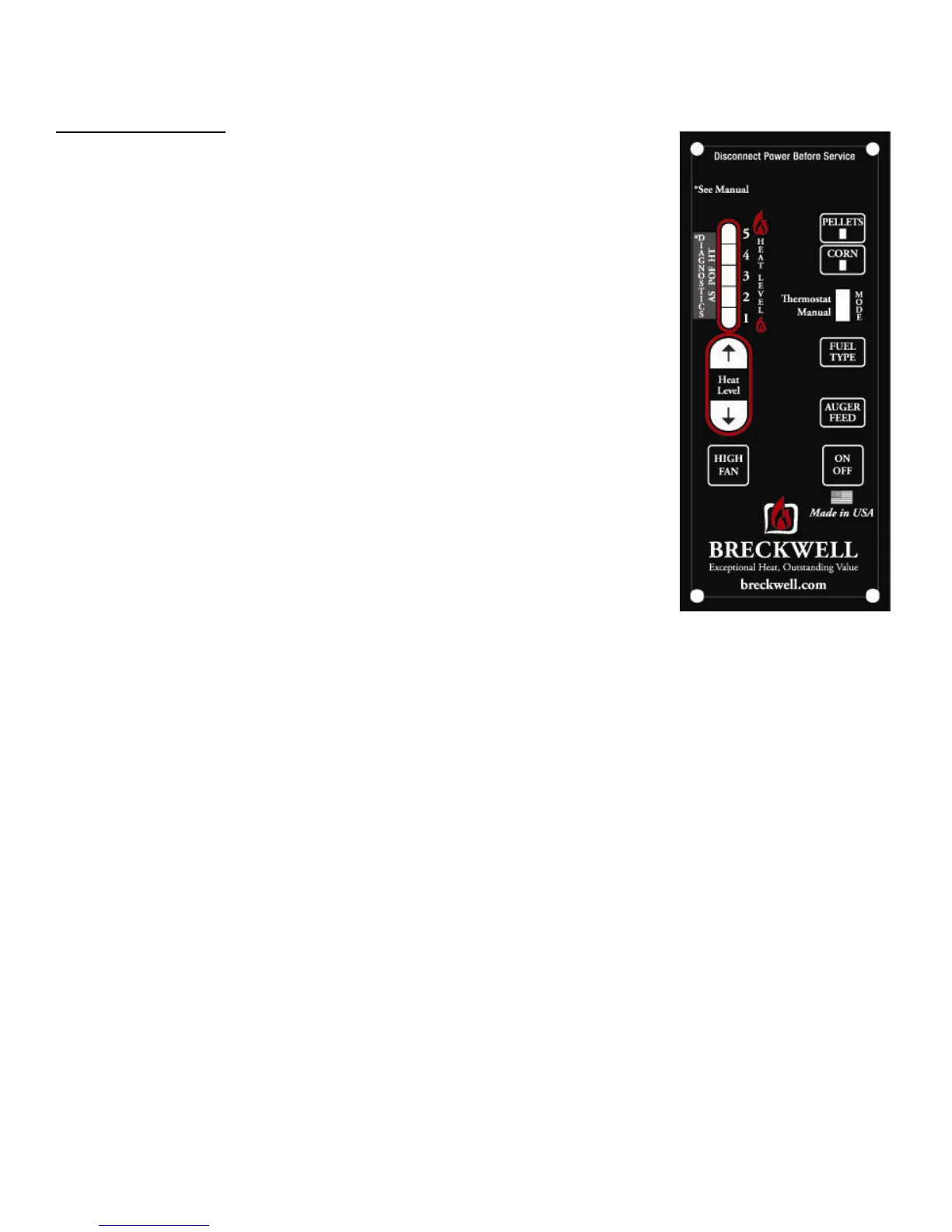

CONTROL PANEL
ThecontrolpanelislocatedonthelefthandsideoftheSP6000Multi‐FuelStove.Itwillallow
youtocontroltheoperationofyourstoveandachievethedesiredlevelofwarmth.Turningthe
unitOnorOff,aswellasadjustingtheheatlevelsetting,andsettingthe
appropriatefueltypeis
allaccomplishedwiththecontrolpanel.

Theunithastwomodesofoperation.Themodeofoperationswitchcanbeadjustedtochange
betweeneachmodeofoperation.Oneisforusewithathermostat(Thermostat),andtheother
isforusewithoutathermostat(Manual).

TheON/OFFbuttonwillturnyourunitonoroffdependingonwhichmodeitisincurrently.
WhenyoufirststartyourstovebypressingtheON/OFFbutton,thestovewillgointoitsstart‐
upcycle.Thecombustionfanwillcomeon(lowsetting)andtheunitwillconduct
aself‐
diagnostics.Fourminuteslater,theaugerwillbegintofeedfuelintotheburnpot.

TheFUELTYPEbuttonallowsyoutoselecteitherPelletsorCorndependinguponthefueltype
youareusing.Thisunitisonlyapprovedforusewithwoodpelletsorwholeshelled
corn.If
burningamixtureofcornandpelletsyoushouldselectcorn.Havingthewrongfueltype
selectedcouldresultindamagetoyourstoveandincreasesafetyhazards.

NOTE:I
TISEXTREMELYIMPORTANTTHATYOUSELECTTHEPROPERFUELTYPEINACCORDANCEWITHTHEFUELYOU
AREBURNING
.

TheHEATLEVELbuttonwillincreaseordecreasetheheatlevelsettingofyourstovefromLow
(1)toHigh(5).DONOTUSETHEHIGHSETTINGOF#5FOREXTENDEDPERIODSOFTIME.The
#5heatlevelsettingshouldonlybeusedforshortdurations(twohoursmax)at
atimewith
severalhoursbetweeneachuseofthe#5setting.Usingthe#5heatlevelsettingforlong
periodswillgreatlyshortenthelifeexpectancyofyourstove,itscomponents,andmayeven
leadtodamageorwarpingoftheunit.

TheHeatLevelsserveadualpurpose
ofprovidingdiagnosticinformationifyourstoveisnotoperatingcorrectlybyaflashinglighton
eitherthesecond(AS–AirSwitch),third(POF–ProofofFireThermodisc),orfourth(HT–HighTempThermodisc)heatlevel.

IftheASLightisflashing,thisisanindicationthat
theproblemisrelatedtoairflowintheunit.Mostofthetimethisisrelatedtoa
dirtystoveorexhaustpipe.Cleaningyourstoveand/orexhaustpipewellwillgenerallyresolvethisproblem.Alsokeepinmindthat
ifyouleavetheviewingdooropenformorethan30
secondsthestovewillshutdownandtheASLightwillflash.THISDOESNOT
MEANTHATTHEAIRSWITCHISDEFECTIVE.

IfthePOFLightisflashing,thisisanindicationthateitherthePOFthermodischastrippedorisnotfunctioningcorrectly,oryoumay
haveanaugerjam,oryoumayhaveleftthehopperlidopen.THISDOESNOTMEANTHATTHEPOFTHERMODISCISDEFECTIVE.

Ifthe
HTLightisflashing,thisisan indicationthatyourstovehasbecometoohot.Checktomakesurethatthefueltypeissetin
accordancewiththetypeoffuelthatyouareburning.Ifyouareburningamixtureofcornandpellets,youshouldselectCORNas

yourfueltype.THISDOESNOTMEANTHATTHEHIGHTEMPTHERMODISCISDEFECTIVE.

NOTE:SEETHETROUBLESHOOTINGGUIDETOWARDSTHEBACKOFTHISMANUALFORMOREDETAILEDINFORMATIONABOUTERRORCODESAND
TROUBLESHOOTINGPROCEDURESFORYOURSTOVE
.

TheHIGHFANbuttonwillover‐ridethepre‐programmedconvectionfanspeedandincreasetheconvectionfantohighspeedthe
firsttimeyoupressit.Pressagain,andyouwillreturnthefantoitsprogrammedspeed.Itisbesttoallowtheconvectionfantorun
atthe
pre‐programmedspeedforoptimalefficiency.Ifyoulowertheheatlevelbythreeormoresettingsitisgoodtorunthehigh
fanforabout15minutes.

TheAUGERFEEDbuttonwillcausetheaugertofeedadditionalfuelintotheburnpot.PressingandholdingtheAuger
Feedbutton
willcauseasteadystreamoffueltobeaddedtothefire.Usethissparinglyasanover‐feedorover‐heatingsituationcouldoccur.
