Breckwell SP6000 - Combustion Air Supply; Electrical Installation

Chapter1–Installation
Page3
COMBUSTION AIR SUPPLY


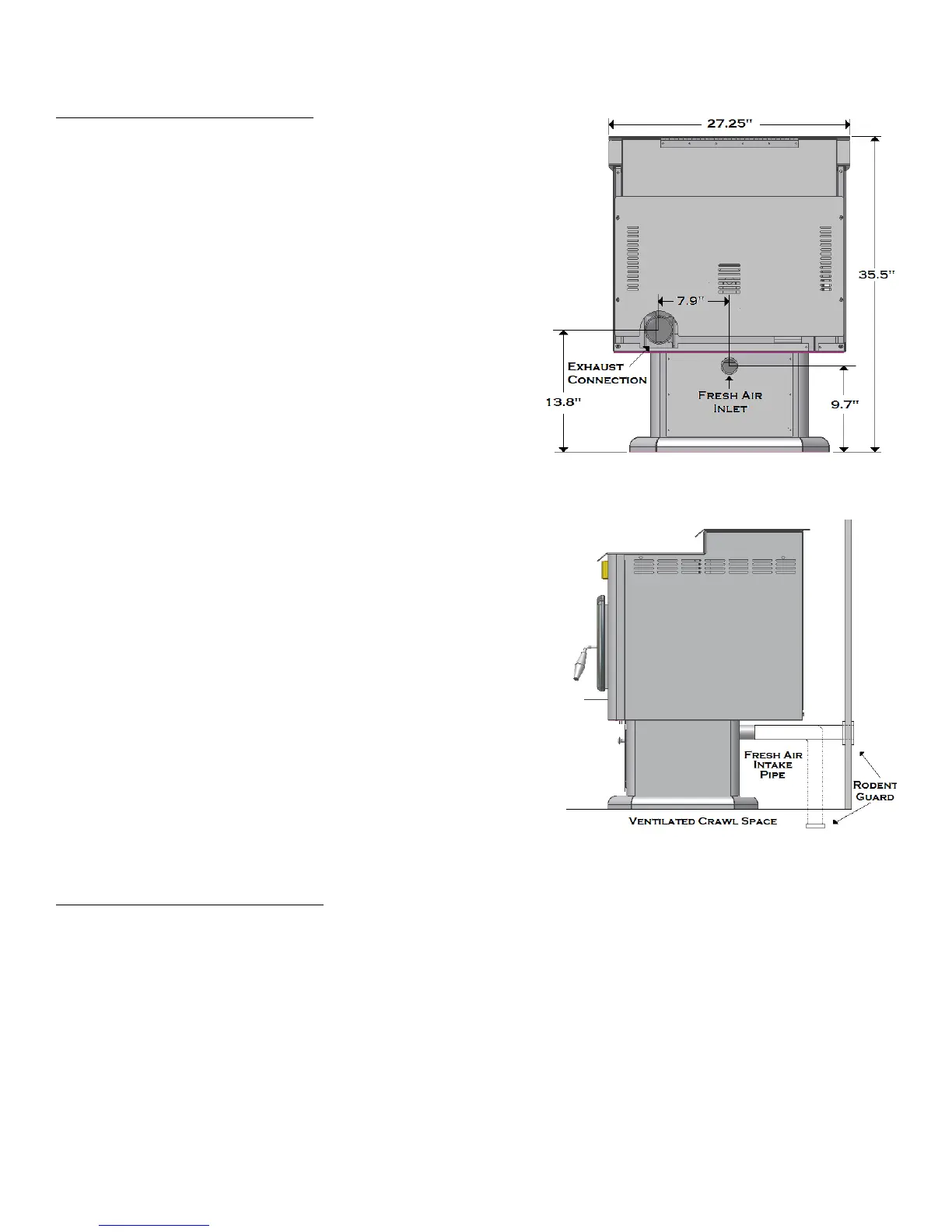

A2”insidediametermetallicpipe,eitherflexibleorrigid,maybeattached
totheinletatthestove’srear.Arodentguard(minimum¼”wire
mesh)/windhoodmustbeusedattheterminus.Allconnectionsmustbe
securedandairtightbyeitherusingtheappropriatelysizedhoseclamp
and/or
UL‐181‐APfoiltape.

NOTE:A
COMBUSTIONAIRSUPPLYISREQUIREDFORALLMOBILEHOMEINSTALLATIONS,
ANDALSOINCONVENTIONALHOMEINSTALLATIONSIFTHEUNITISBEINGINSTALLEDINA
BASEMENT
,SMALLROOM,OREXTREMELYWELLINSULATEDORAIRTIGHTHOMES.

F
ORMOBILEHOMEINSTALLATIONSONLY:Foramobilehomeinstallationthe
stovemustbeconnectedtoanoutsidesourceofcombustionairper
federalregulations.2”insidediameterpipemaybeusedforthefirst5
feetofcombustionairsupplyrun‐From5to10feetuse2¾”inside
diameterpipe.

N
OCOMBUSTIONAIRSUPPLYMAYEXCEED10FEETOFEVL.
EVL(EquivalentVentLength)forcombustionairsupplyiscalculated
thesameasfortheventingorexhaustpipe.

S
OURCESOFOUTSIDECOMBUSTIONAIR
Infireplaces,outsideaircanbepipedtothestovefromthechimneytop,
fireplaceashcleanoutdoor,oraholedrilledthroughthebackofthe
fireplace.Therunofpipeforthecombustionairsupplyshouldbeasshort
aspossibleforthebestperformance.

Forfreestanding
installations,thiscouldbeaholeinthefloor
nearthestoverearterminatinginaventilatedcrawlspace,
oraholeinthewallbehindthestove.

Intightlyinsulatedhomes,acloseableoutsideairregistercanbeused.

W
HENOUTSIDEAIRISNOTUSED
Ifoutsideairisnotused,itisimportantthatthecombustionairinletisnot
restrictedorblockedinanyway.




ELECTRICAL INSTALLATION
Thisstoveisprovidedwitha6‐footgroundedelectricalcordextendingfromtherearofthestove.Werecommendconnectingtoa
good,
HIGHQUALITYSURGEPROTECTORthatispluggedintoastandardthree‐prong,120V,60Hzelectricaloutlet.Itishighly
recommendedthatyougetasurgeprotectorratedascloseto130Voltsand10AMPSaspossible.Thecloseryoursurgeprotectoris
totheseratings,thegreatertheprotectionforyourstove.

Voltagevariationsorincorrectpolaritycanleadtoseriousperformanceproblems,especiallyrelated tothecontrolboard.The
Breckwellelectricalsystemisdesignedfor120VACwithnomorethan5%variation.Thepolarityoftheoutletshouldalsobe
checkedduringinstallation.Mosthardwarestorescarryaninexpensivepolarity
checker.Breckwellcannotacceptresponsibilityfor
poorperformanceordamageduetoinadequatevoltageorincorrectpolarity.Ifconnectedtoanolder,two‐prongoutlet,aseparate
groundwiremustberuntoaproperground(contactaqualifiedelectrician).Alwaysroutetheelectricalcordsothatitwillnotcome

incontactwithanyhotpartofthestove.

