Breckwell SP6000 - Special Mobile Home Requirements; Examples of Proper Installation

Chapter1–Installation
Page4
SPECIAL MOBILE HOME REQUIREMENTS

WARNING:DONOTINSTALLINASLEEPINGROOM.
Forinstallationinamobilehome,theoutsideairconnection(freshair)mustbeused.

TheBreckwellSP6000Multi‐fuelmustbegroundedtothesteelchassisofthehomewith8Ga.copperwireusingaserratedorstar
washertopenetratepaintorprotectivecoatingtoensuregrounding.

TheBreckwellSP6000Multi‐fuelmustbesecurelyfastenedtothefloorofthemobilehomethroughtheholesinthesideofthe
pedestalofthestoveusing2,¼”lagboltsthatarelongenoughtogothrough
bothahearthpad,ifused,andthefloorofthehome.

NOTE:I
NSTALLATIONOFTHISUNITINTOAMOBILEHOMEMUSTBEINACCORDANCEWITHTHE“MANUFACTUREDHOME&SAFETYSTANDARD”(HUD),CFR
3280,PART24.

THESTRUCTURALINTEGRITYOFTHEMOBILEHOME FLOOR,WALLANDCEILING/ROOFMUSTBEMAINTAINED.


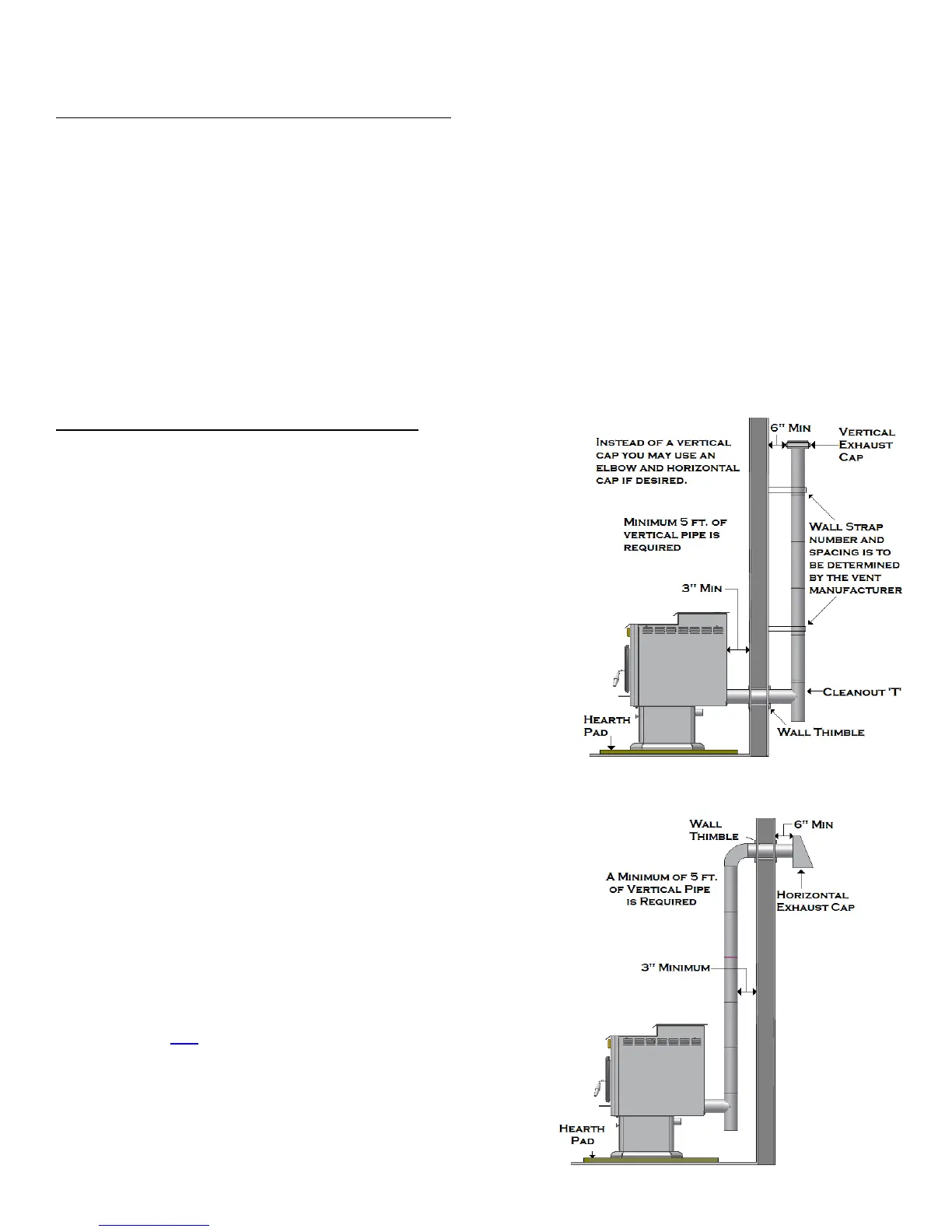

EXAMPLES OF PROPER INSTALLATION
HORIZONTALLYTHROUGHWALL
NOTE:F
OLLOWL‐VENTCHIMNEYMANUFACTURER’SINSTRUCTIONS.
1. Positionstove,adheringtoclearancesshowninFigure1.

2. Locatepositionofholeinwalldirectlybehindstoveexhaustvent(referto
figure3).
3. Alwaysmaintain3”clearancefromcombustiblematerials.
4. InstallL‐VentwallthimbleperL‐Ventmanufacturer’sinstructions.
5. Attachenoughpipingtopenetrateandextendbeyondexteriorwalls.Attach
anelbowor
cleanoutTeeandtakethepipevertical.AMINIMUMOF5‐FOOT
VERTICALRUNOFPIPEISREQUIRED
,AND7‐FOOTORMOREISHIGHLYENCOURAGED.This
willgeneratenaturaldraftandgreatlyreduceoreliminatetheamountof
smokethatentersthehomeduringapoweroutageorcombustionblower
failure.
6. Attachcapandsealoutsidewallthimbleswithnon‐hardeningwaterproof
mastic.
7. Alljointsintheexhaustpipe,includingwhereitattaches
tothestoveshould
besealedwithRTVsiliconeandUL‐181foiltape.
8. Terminationshouldnotbelocatedsothathotexhaustgasescanignitetrees,shrubs,orgrassesorbeahazardtochildren.
Exhaustgasescanreachtemperaturesof500ºFandcauseseriousburns if
touched.



Locateterminations:a)notlessthan 3feetaboveanyforcedairinlet
locatedwithin10feet;b)notlessthan4feetbeloworhorizontallyfrom,or
onefootabove,anydoor,windoworgravityairinletintoanybuilding;c)
notlessthantwofeetfroman
adjacentbuildingandnotlessthan7feet
abovegradewhenlocatedadjacenttoapublicwalkway.Mobilehome
installationsmustuseasparkarrester.

NOTE:T
HISUNITISNOTAPPROVEDFORUSEWITHA“DIRECT‐VENT”TYPEOFVENTING
WHICHHASNOVERTICALPIPE
.AMINIMUMOF5’OFVERTICALPIPEISREQUIRED.




