Breckwell SP6000 - Vertically With New Chimney System; Vertically Into Existing Chimney System

Chapter1–Installation
Page5



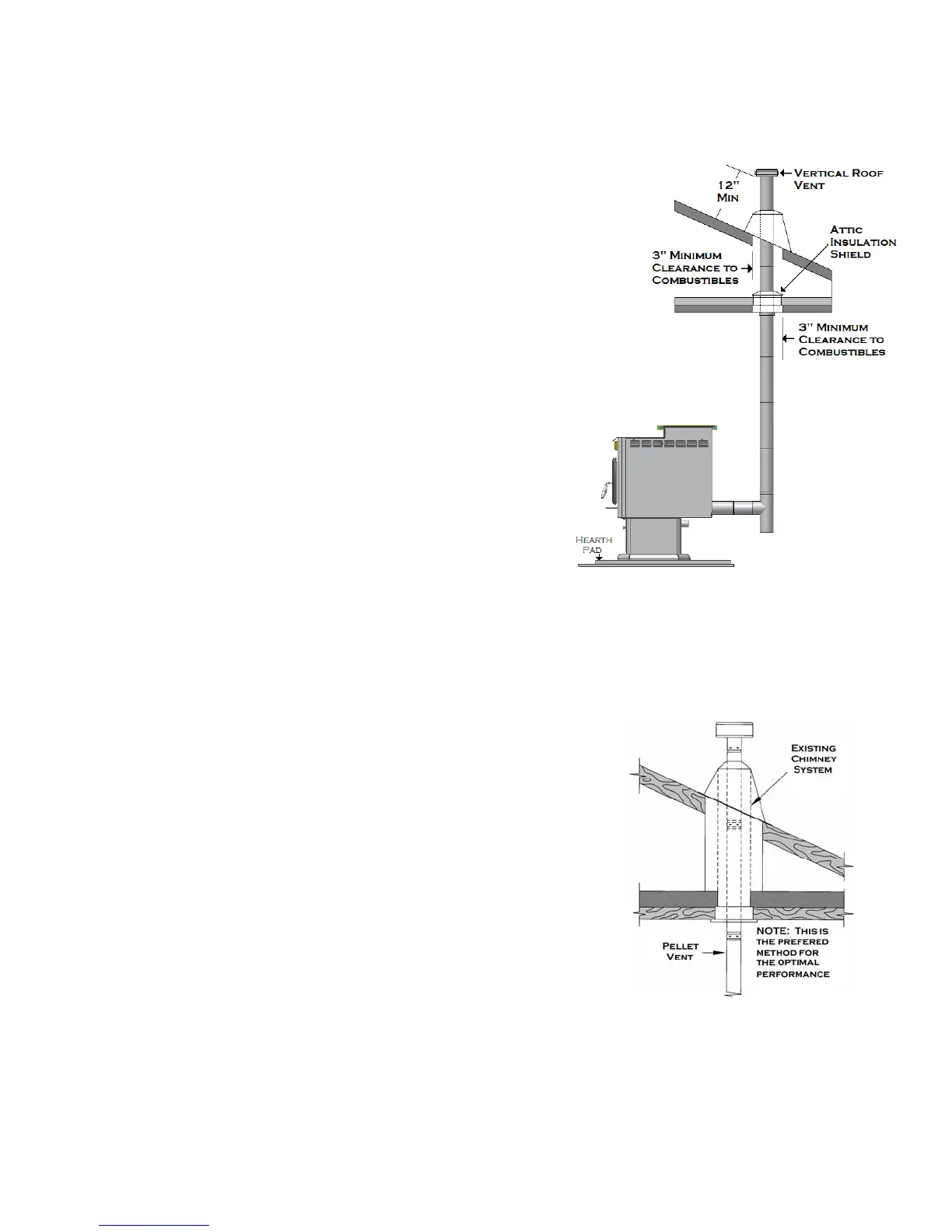

VERTICALLYWITHNEWCHIMNEYSYSTEM
NOTE:F
OLLOWL‐VENTCHIMNEYMANUFACTURER’SINSTRUCTIONS.

OPTION:Toachieveacenterverticalinstallationa45ºelbowandaclean‐out
teecanbeusedtooffsetthepipefromtheexhaustoutlettotherearcenterof
thestove.

Alwaysmaintain3”clearancefromcombustiblematerials.Whenpassing
throughadditionalfloorsorceilings,always
installfirestopspacer.

Afterliningupforholeinroof,cuteitheraroundorsquareholeinroof,always
3”largerallthewayaroundpipe.Installupperedgeandsidesofflashingunder
roofingmaterials,nailtotheroofalongupperedge.Donotnailloweredge.
Sealnailheadswithnon‐hardeningwaterproofmastic.

Applynon‐hardening,waterproofmasticwherethestormcollarwillmeetthe
ventandflashing.Slidestormcollardownuntilitsitsontheflashing.Sealand
installcap.Mobilehomeinstallationsmustuseasparkarrester.











VERTICALLYINTOEXISTINGCHIMNEYSYSTEM

Therecommendedinstallationmethodistorunthe3”or4”L‐Ventpipeupinsideof
theexistingthechimneytotermination.



F
OLLOWGUIDELINESFOREQUIVALENTVENTLENGTH.

