Breckwell SP6000 - Vertically Into Existing Masonry Fireplace; Installation Through Side of Masonry Chimney

Chapter1–Installation
Page6

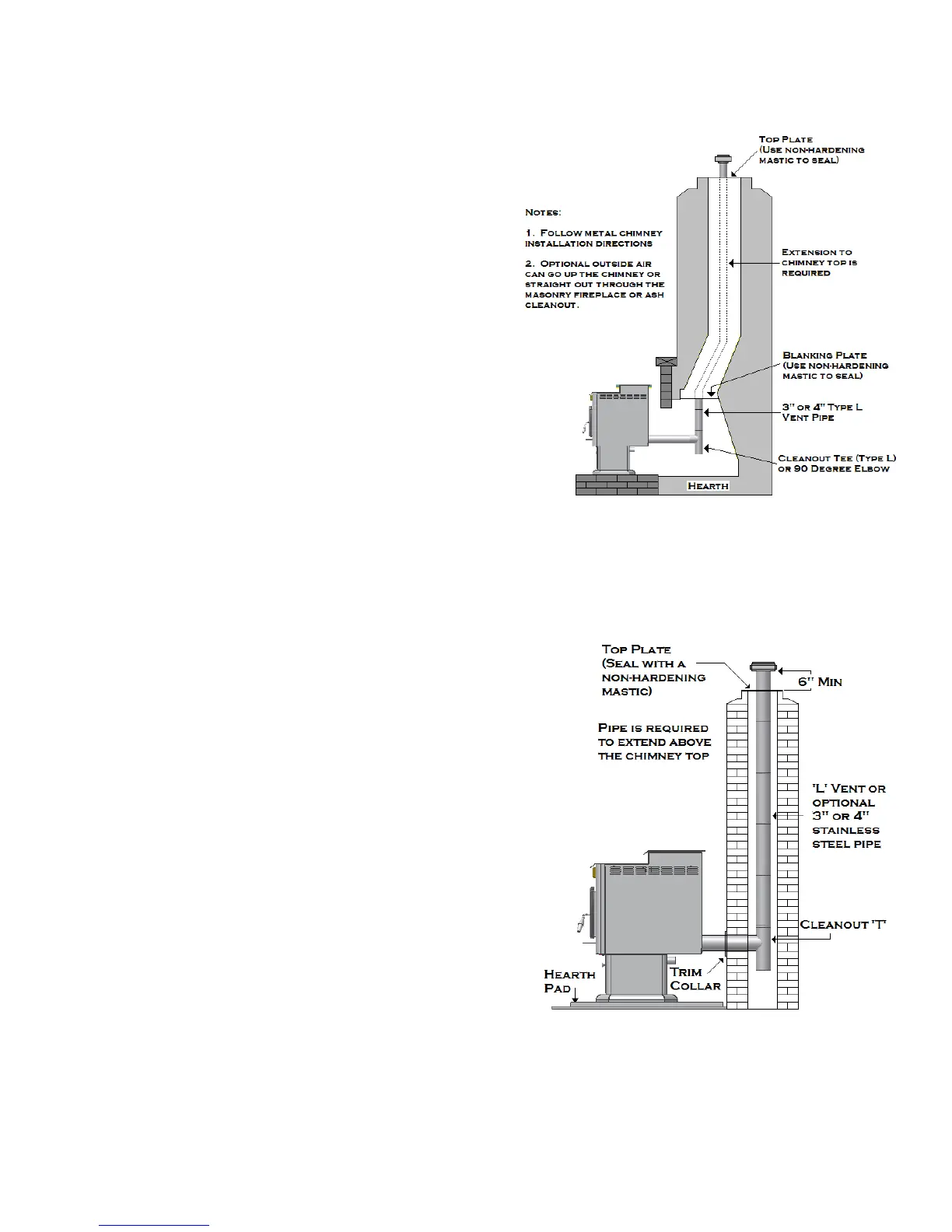

VERTICALLYINTOEXISTINGMASONRYFIREPLACE
NOTE:F
OLLOWL‐VENTCHIMNEYMANUFACTURER’SINSTRUCTIONS.

Havethemasonrychimneyinspectedbyaqualifiedchimneysweep
orinstallertodetermineitsstructuralcondition.

Youwillneedapipelengthequaltothechimneyheightfromthe
hearth.Ifoutsidecombustionairistobeused,theidealinstallationis
throughtherearwallofthe
fireplace.Youmaygoupthechimneyfor
freshair,thoughthiswouldnotbethepreferredinstallation.

Installablankingplateandthechimneypipe,andifused,theoutside
airpipe,asshown.

AttachtheL‐ventadapter,asectionofpipeandcleanouttee,making
surethecleanoutteeiscenteredinthechimneyfluearea.UseRTV
siliconeandmetallictapeatalljointconnectionstoensureatight
seal.

Positionthestove,adheringtotheclearancesinFigure1.

Measureandbuildchimneytopplate.Cutoutholesforchimneypipe,and
ifusedtheoutsideairpipe.Installandsealwithnon‐
hardeningmastictopreventwaterleakage.Installventcap.

INSTALLATIONTHROUGHSIDEOFMASONRYCHIMNEY
NOTE:F
OLLOWL‐VENTCHIMNEYMANUFACTURER’SINSTRUCTIONS.

Positionthestove,adheringtotheclearancesinFigure1.Markthecenter
oftheholewherethepipeistopiercethemasonrychimney.

Itwillbenecessarytobreakoutthemasonryaroundthelocationofthe
pipecentermark.Usea4‐inchdiameterholefor
3‐inchpipeand5‐inch
diameterholefor4‐inchpipe.

Measureandbuildchimneytopplate.Cutoutholesforchimneypipe,and
ifusedtheoutsideairpipe.

Installtheteeonthebottomoftheverticalpipesystemandloweritdown
thechimneyuntil
thecenterbranchoftheteeislevelwiththecenterof
theholeinthemasonry,asshowninFigure10.

Installandsealthetopplatefromstep3withnon‐hardeningmastic.Slip
thestormcollaroverthepipe,andwhileholdingthepipeattheproper
elevation,affixthecollarwithaminimumofthree¼”stainlesssteelsheet
metalscrews.Sealalljointsandseamsaroundthecollar.

Connectthehorizontalpipebypushingitthroughtheholeinthemasonryandliningitupwiththebranchinthetee.Pushthepipe
into
theteewhiletwistingittolockitintothetee.Ifdesired,oncethehorizontalpipeisinplace,thespacebetweenthepipeand
masonrymaybefilledwithhigh‐temperaturegrout.

Installthetrimcollar.Anadjustablepipelengthandadaptermaybeneededtofinishtheconnection
tothestove
