Bredel PUMP Series - Page 11

INSTALLATION
8

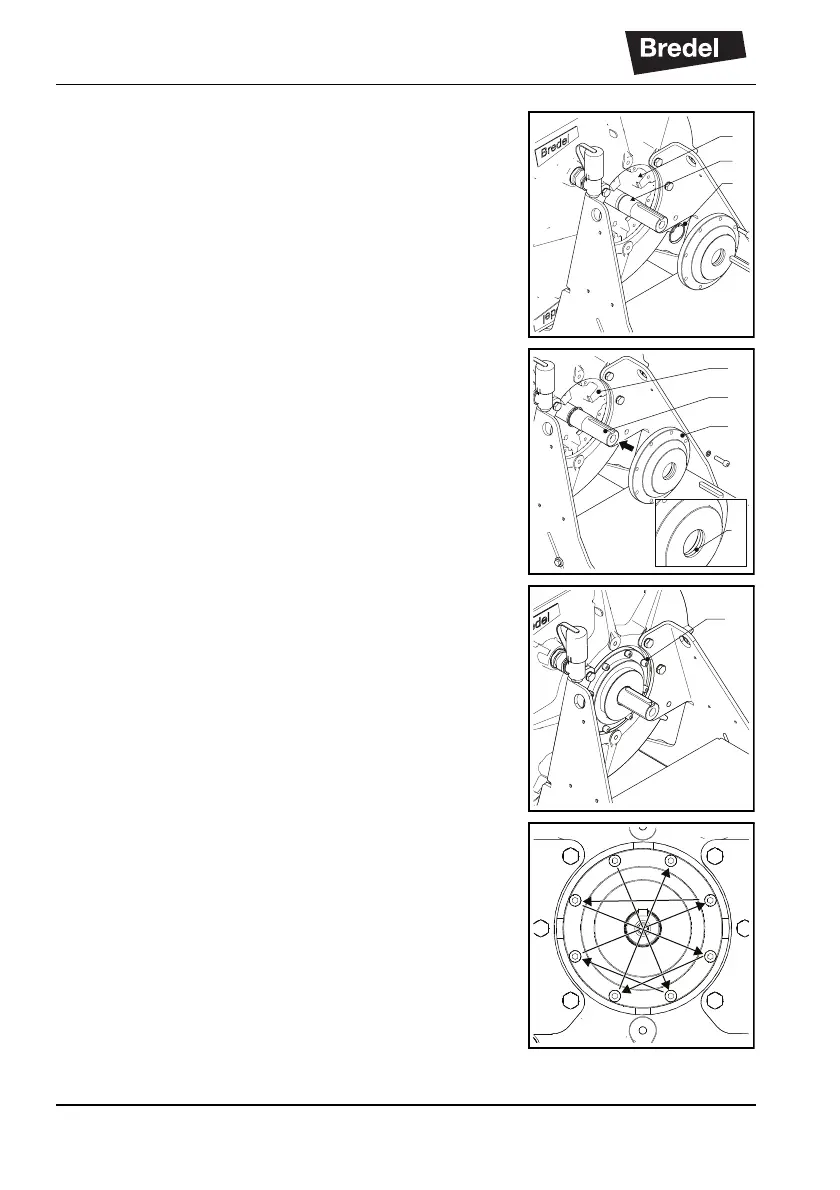

7. Clean the contact surfaces (B) for the bearing
and the seal. Put some transmission oil on
these surfaces (B).
8. Place the retaining ring (C) in the groove (A) of
the shaft.
9. Apply an excessive amount of grease on the
seal (D).
10. Make sure that the hub (C) contains the seal,
the bearing and the outer retaining ring.
Slide the hub (C) over the shaft (B) until it is
against the hub (A).
11. Insert eight sets of washers and bolts (A).
12. Tighten the bolt or nuts in at least two crosswise
cycles. In the last cycle tighten them with the
correct torque. See section 6.3.
A
B
C
A
B
C
D
A
1
2
6
5
4
8
3
7
1
2
6
5
4
8
3
7
