Bredel PUMP Series - Demounting the Bare Shaft Hub

MAINTENANCE
15

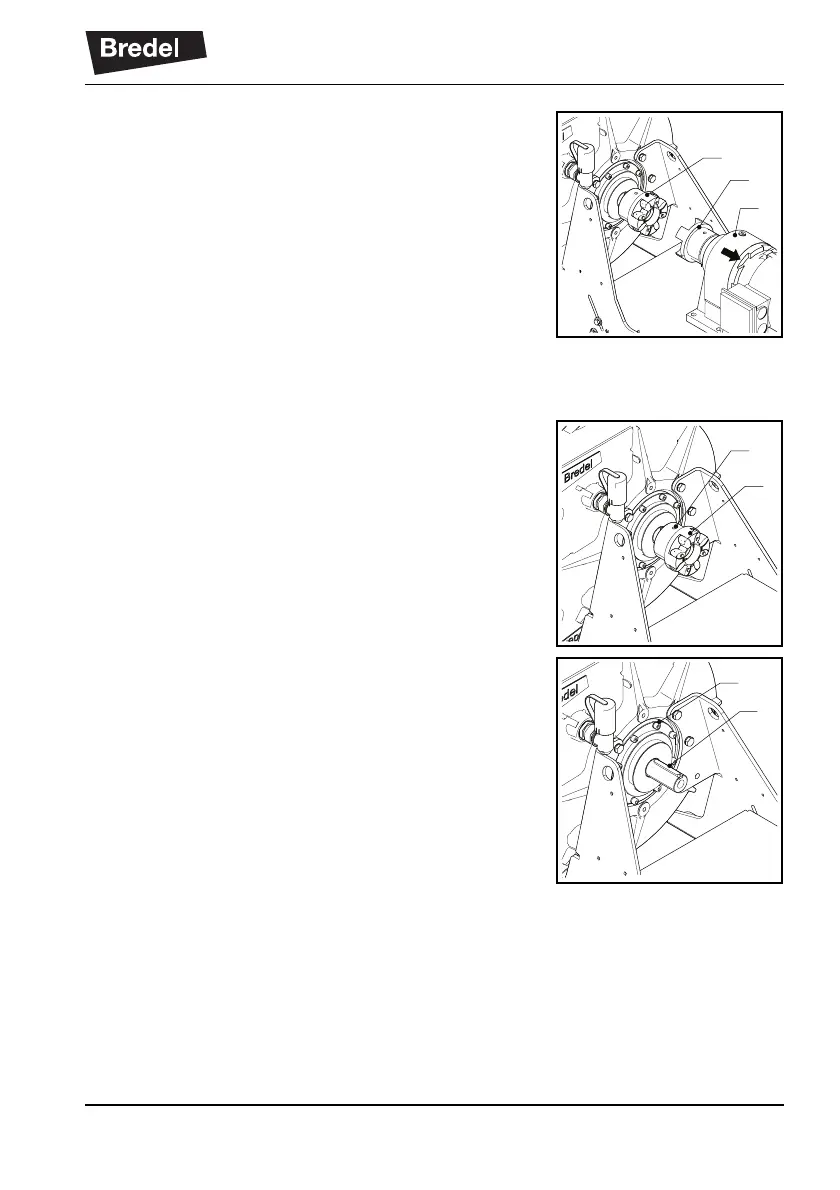

3. Move the drive (C) horizontally away from the
support set to separate the coupling halves (A
and B).
4.4 Demounting the bare shaft hub
1. Loosen screw (B) and remove the coupling half
(A).
2. Remove key (B) from the shaft end.
3. Remove the eight sets of washers and bolts (A).
