Bredel PUMP Series - Mounting and Aligning the Drive

INSTALLATION
10

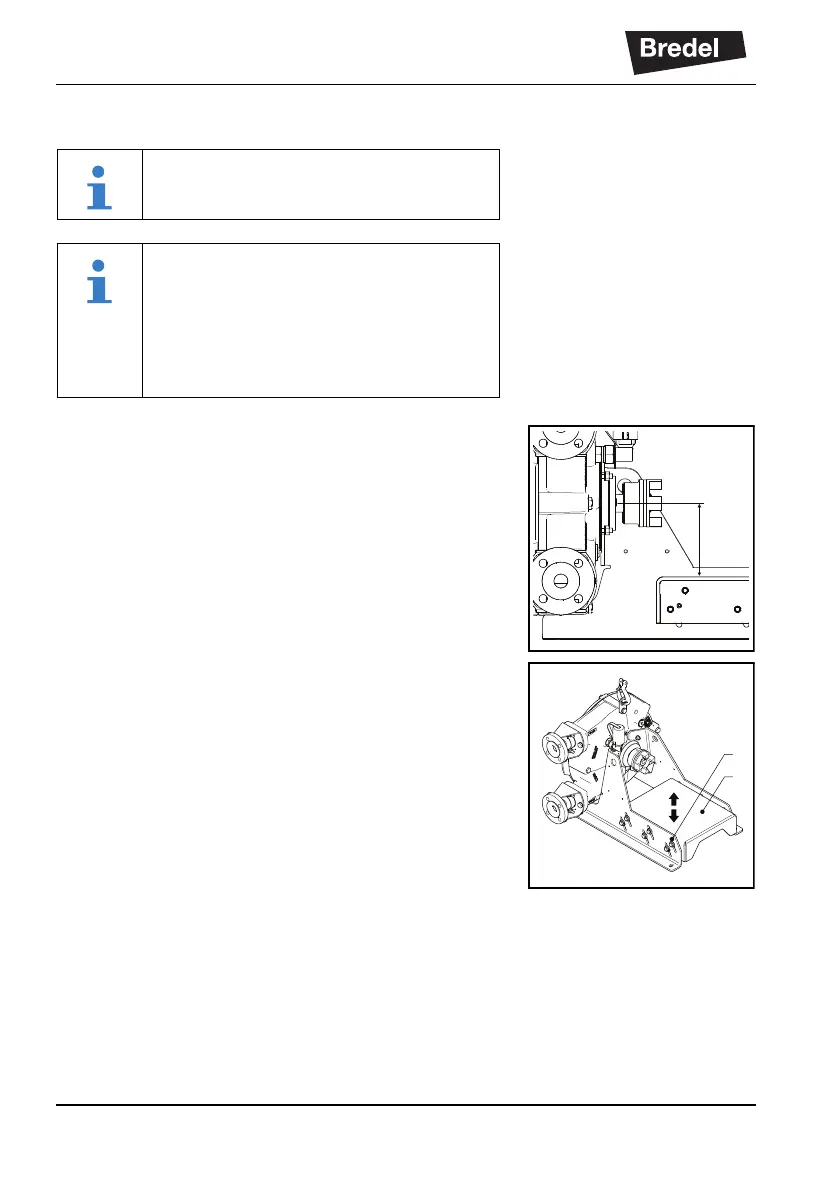

3.2.2 Mounting and aligning the Drive
1. Determine the correct height of the centre of the
bare shaft according to the surface on which the
drive will be mounted. The bare shaft height
must correspond with the height of the output
shaft centre (of the drive that will be mounted).
2. To correct the height loosen the 12 sets of
fasteners (A).
Move plate (B) up or down to the correct
position and slightly tighten the fasteners (A).
Check the height and repeat this step if
necessary.
If the height is correct, tighten the fasteners (A)
with the correct torque. See section 6.3.
Use a hoist to lift the heavy drive.
Mounting and aligning the drive must be
done on the pump’s final operation
position. Moving the complete pump
assembly after alignment will require re-
alignment at the pump’s final operation
position.
h
B
A
