MAINTENANCE
14

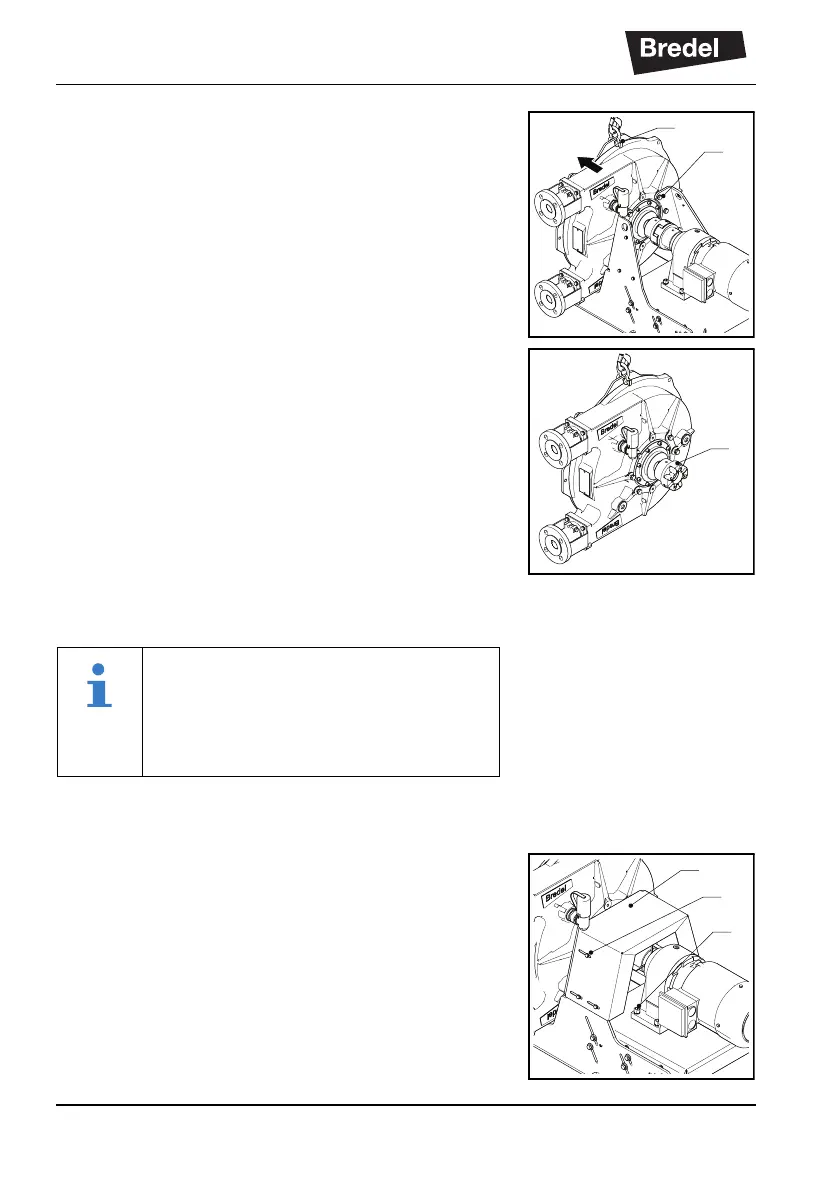

3. Attach a hoist to the pumphead (A).
4. Remove the six sets of bolts and washers (B).
5. Move the pumphead horizontally away from the
support set to separate the coupling (A).
4.3 Demounting the drive
1. Isolate the drive from the electrical supply.
2. Loosen the fasteners (A) of the coupling guard
and remove the coupling guard (B).
Remove the fasteners (C) from the gearbox
feet.
B
A
A
To demount the bare shaft hub the pump
must be separated from the drive. This can
be done in two ways: demounting the
pumphead from the support set or
demounting the drive from the support set.
B
A
C
