Bredel PUMP Series - Mounting Support Set and Bare Shaft Kit

INSTALLATION
7

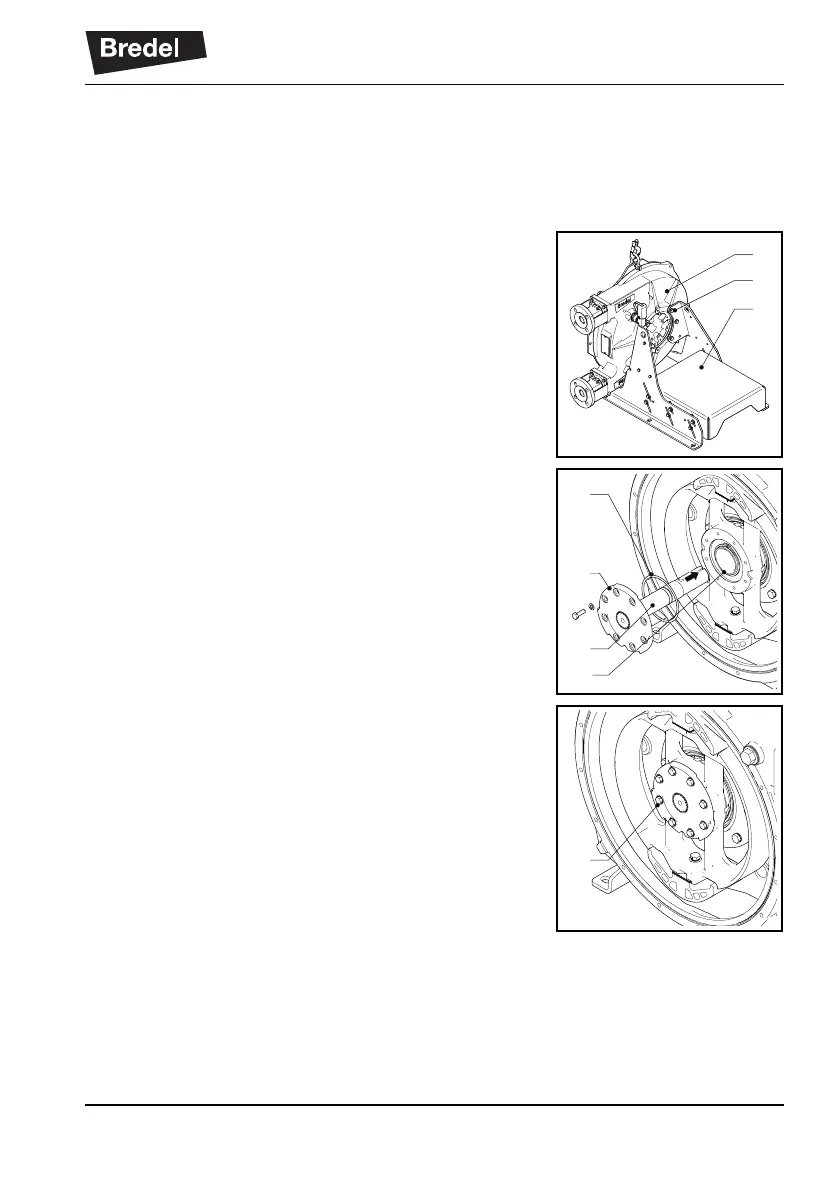

3.2.1 Mounting the support set and the bare shaft
kit to the pumphead
For mounting the kit to the pumphead, the pump must
not be part of a process line and must not contain
lubricant.
1. Use a hoist to place the pumphead (A) against
the support set (B).
2. Insert six sets of washers and bolts (C). Tighten
the bolts with the correct torque. See section
6.3.
Leave the coupling guard demounted.
3. Use a hoist to remove the cover of the
pumphead.
4. Place the O-ring (A) into the groove of hub (B).
5. Make sure the key is removed from the shaft
(C). Slide the shaft (C) into the rotor hub (D),
until the hub (B) is against the rotor.
6. Insert eight sets of washers and bolts (A).
Tighten the bolts with the correct torque. See
section 6.3.
A
C
B
A
B
C
D
A
