Bredel PUMP Series - Mounting the Drive

MAINTENANCE
20

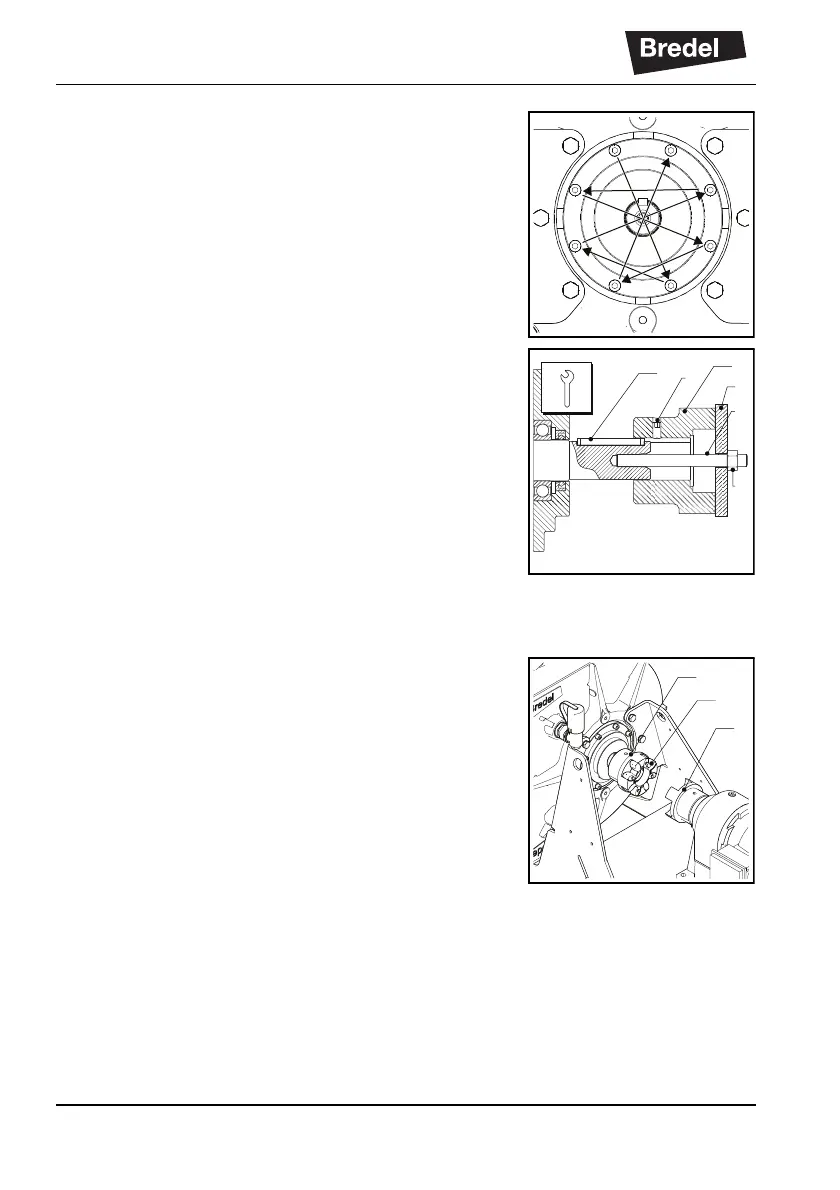

6. Tighten the bolt or nuts in at least two crosswise
cycles. In the last cycle tighten them with the
correct torque. See section 6.3.
7. Place the key (A) in the shaft end. Loosen the
setscrew (B) from the coupling half.
8. Screw a threaded rod (E) into the shaft end.
Place the coupling half (C) on the shaft end.
Install a disc (D) and nut (F) on the threaded rod
(E). Turn the nut (F) to drive the coupling half
(B) onto the shaft.
9. Fasten the setscrew (B) in the coupling half.
4.8 Mounting the Drive
1. Use a hoist to place the drive on the support
set.
2. Make sure the spider (A) is placed in one of the
coupling halves (B).
1
2
6
5
4
8
3
7
1
2
6
5
4
8
3
7
C
D
E
B
F
A
B
A
B
