Bredel PUMP Series - Mounting the Bare Shaft Hub onto the Pump

MAINTENANCE
19

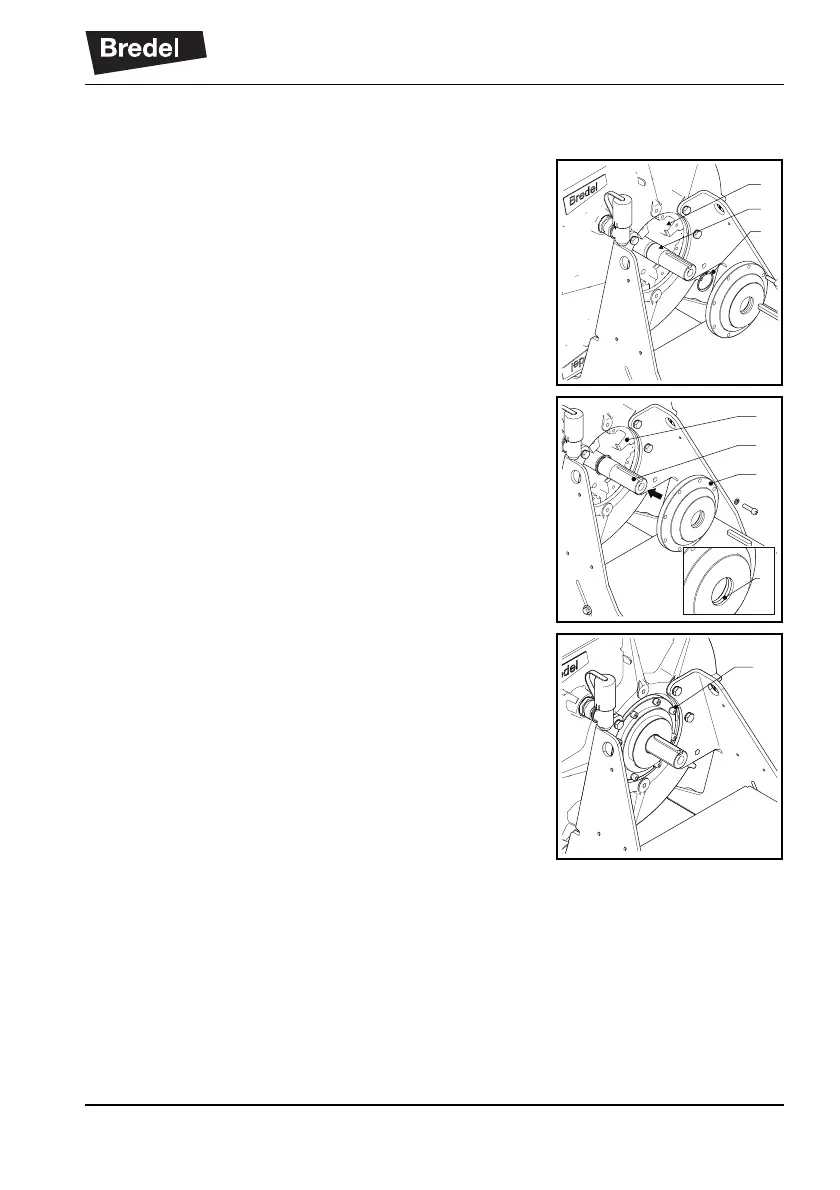

4.7 Mounting the bare shaft hub onto the pump
1. Clean the contact surfaces (B) for the bearing
and the seal. Put some transmission oil on
these surfaces (B).
2. Place the retaining ring (C) in the groove (A) of
the shaft.
3. Apply an excessive amount of grease on the
seal (D).
4. Make sure that the hub (C) contains the seal,
the bearing and the outer retaining ring.
Slide the hub (C) over the shaft (B) until it is
against the hub (A).
5. Insert eight sets of washers and bolts (A).
A
B
C
A
B
C
D
A
