3. GETTING STARTED
3.1 WIRELESS 7-IN-1 SENSOR
2
3
6
1
4
5
7
9
8
12
13
11
14
15
10

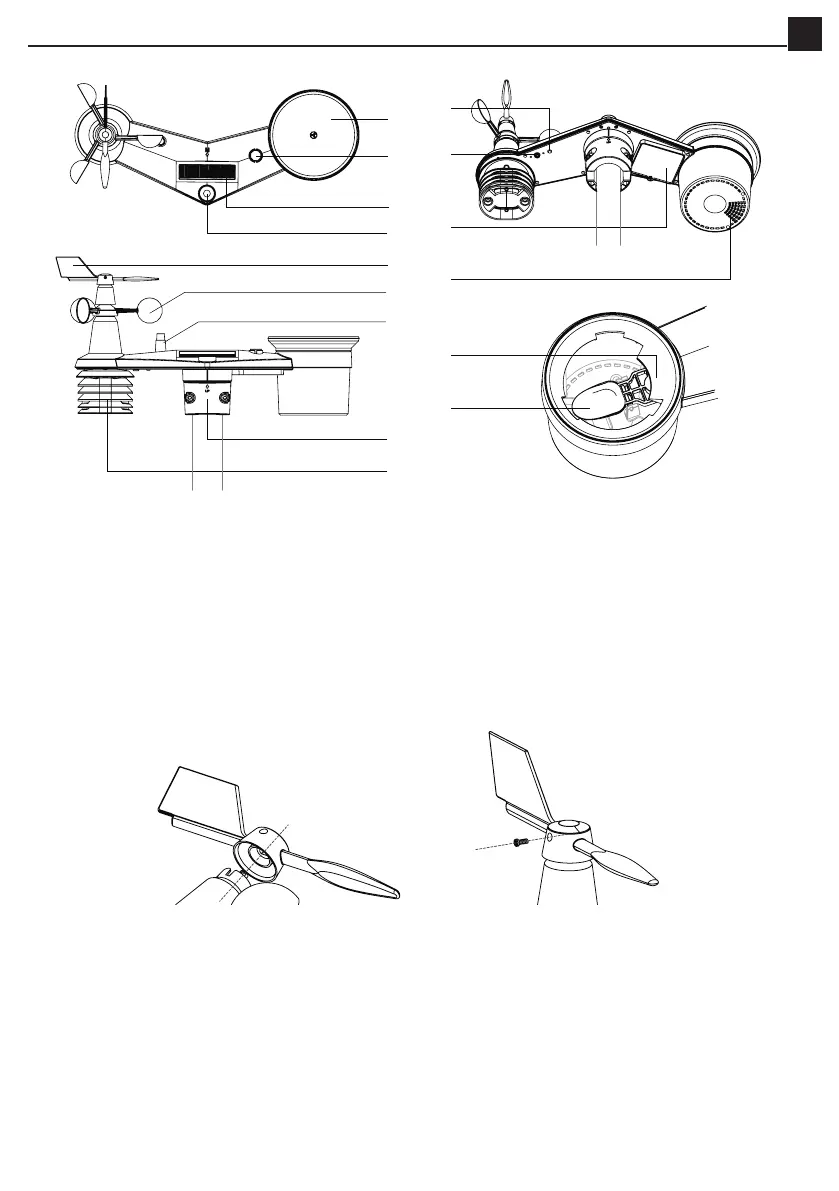

1. Rain collector
2. Balance indicator
3. Solar panel
4. UVI / light sensor
5. Wind vane
6. Wind cups
7. Antenna
8. Mounting clamp
9. Radiation shield and thermo-
hygro sensor
10. Red LED indicator
11. [ RESET ] key
12. Battery door
13. Drain holes
14. Rain sensor
15. Tipping bucket
3.1.1 INSTALL WIND VANE
With reference to photo below, (a) locate and align the at are on the wind vane shaft to the at surface on
the wind vane and push the vane onto the shaft. (b) tighten the set screw with a precision screwdriver.
Step 1 Step 2
