PLASTIC MOUNTING INSTALLATION

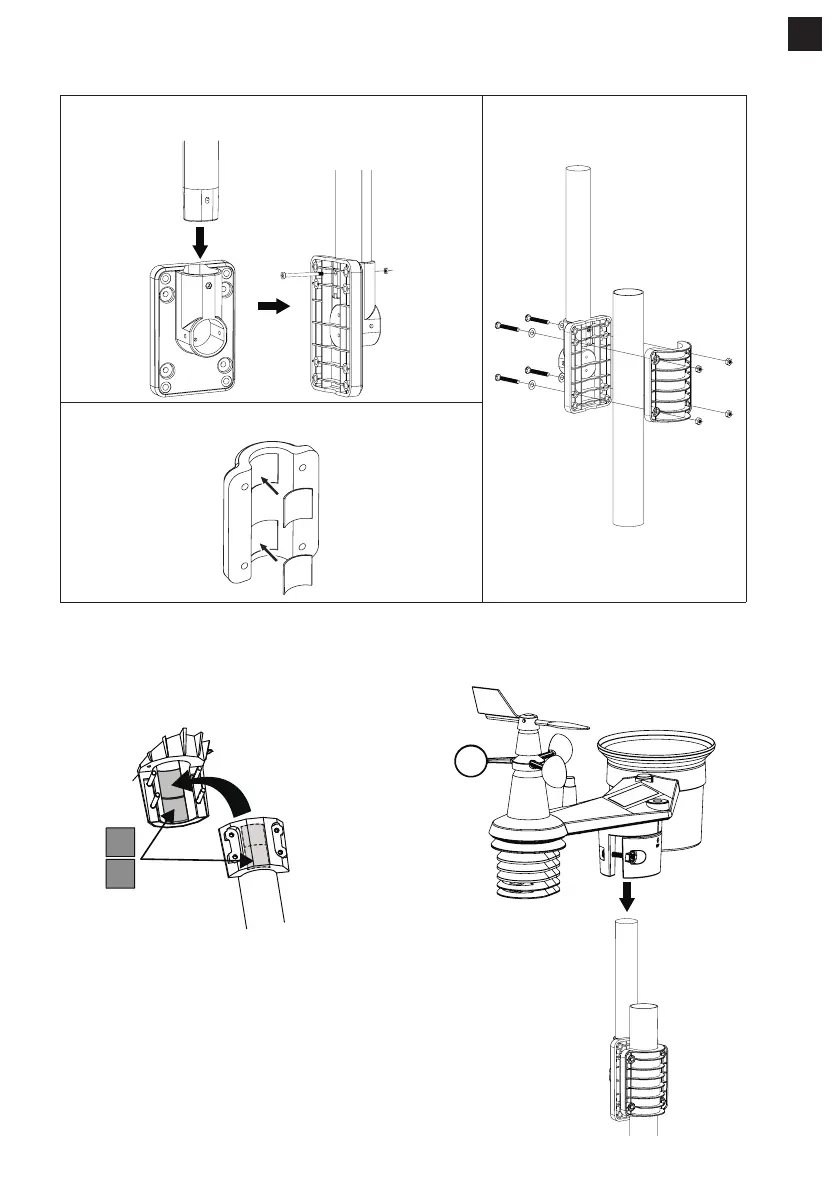

1. Fasten the plastic pole onto your x pole with mounting base, clamp, washers, screws and nuts.
Following below 1a, 1b, 1c sequences:
1a. Insert the plastic pole into the hole of the mounting
stand, and then secure it with the screw and nut.
1c. Fasten the mounting stand and
clamp together onto a x pole with
4 long screws and nuts.
1b. Apply 2 rubber pads on the mounting clamp.
2. Apply 4 rubber pads on the inner sides
of the mounting base and clamp of the
sensor-array, and loosely fasten them
together.
3. Place the sensor-array over the mounting pole and
align it to North direction before fastening the screws.
EN
