8

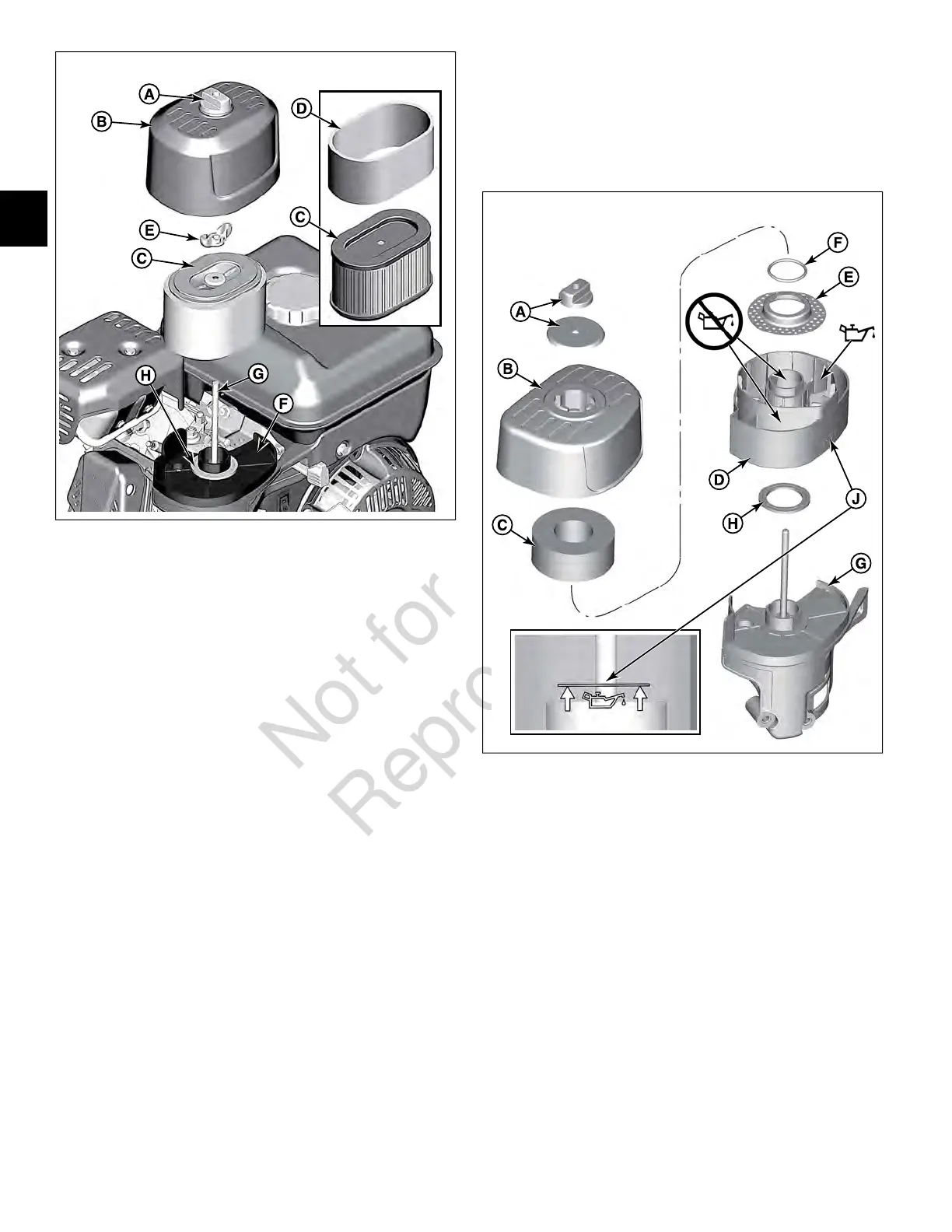

Oil Bath Air Filter
1. Remove knob and washer (A) from air cleaner cover
(B), and then remove air cleaner cover. Be careful that
dirt and/or debris does not enter the carburetor. If dirt
and/or debris enters the carburetor, damage can occur
to the engine and void your warranty.
2. Remove foam filter (C) from cover (B).
3. Wash foam filter in warm, soapy water, and then rinse
with clean water and allow to thoroughly air dry. If foam
filter is damaged, replace with a new foam filter.
4. Apply a small amount of SAE 30 oil onto foam filter.
Squeeze foam filter until oil is evenly distributed.
Squeeze foam filter in a clean cloth to remove excess
engine oil.
5. Remove retainer (E) and O-ring (F) from bowl (D).
6. Remove bowl (D) from air cleaner base (G). Pour dirty
oil into an approved receptacle.
7. Remove o-ring seal (H) from air cleaner base (G).
Inspect for damage and replace if necessary.
8. Wash bowl (D) and cover (B) in warm, soapy water.
Wipe dry with a clean cloth.
9. Install o-ring seal (H) and bowl (D) onto air cleaner base
(G).
10. Pour clean SAE 30 oil into bowl (D). Correct oil level
(J) is shown on side of bowl. Do not overfill. Do not pour
oil into carburetor. Pour oil only into bowl. If oil or debris
enters the carburetor, damage can occur to the engine
and void your warranty. If oil or debris enters the
carburetor elbow, wipe with a clean dry cloth.
11. Install retainer (E) and O-ring (F) into the bowl (D).
12. Install foam filter (C) into cover (B).
13. Install air cleaner cover (B) and secure using washer
and knob (A). Do not over-tighten.
9
Foam Low Mount Air Filter
1. Remove two fasteners (A) from air cleaner cover (B),
and then remove air cleaner cover. Be careful that dirt
and/or debris does not enter the carburetor. If dirt and/or
debris enters the carburetor, damage can occur to the
engine and void your warranty.
2. Remove retainer (D) and foam filter (C) from air cleaner
cover (B).
3. Wash foam filter in warm, soapy water, and then rinse
with clean water. Squeeze foam filter in a clean cloth
to dry. If foam filter is damaged, replace with a new
foam filter.
4. Saturate foam filter with clean engine oil. Squeeze foam
filter in a clean cloth to remove excess engine oil.
5. Install foam filter (C) and retainer (D) into air cleaner
cover (B).
16 BRIGGSandSTRATTON.COM
