ENGINE ADJUSTMENTS
Adjust Armature Air Gap

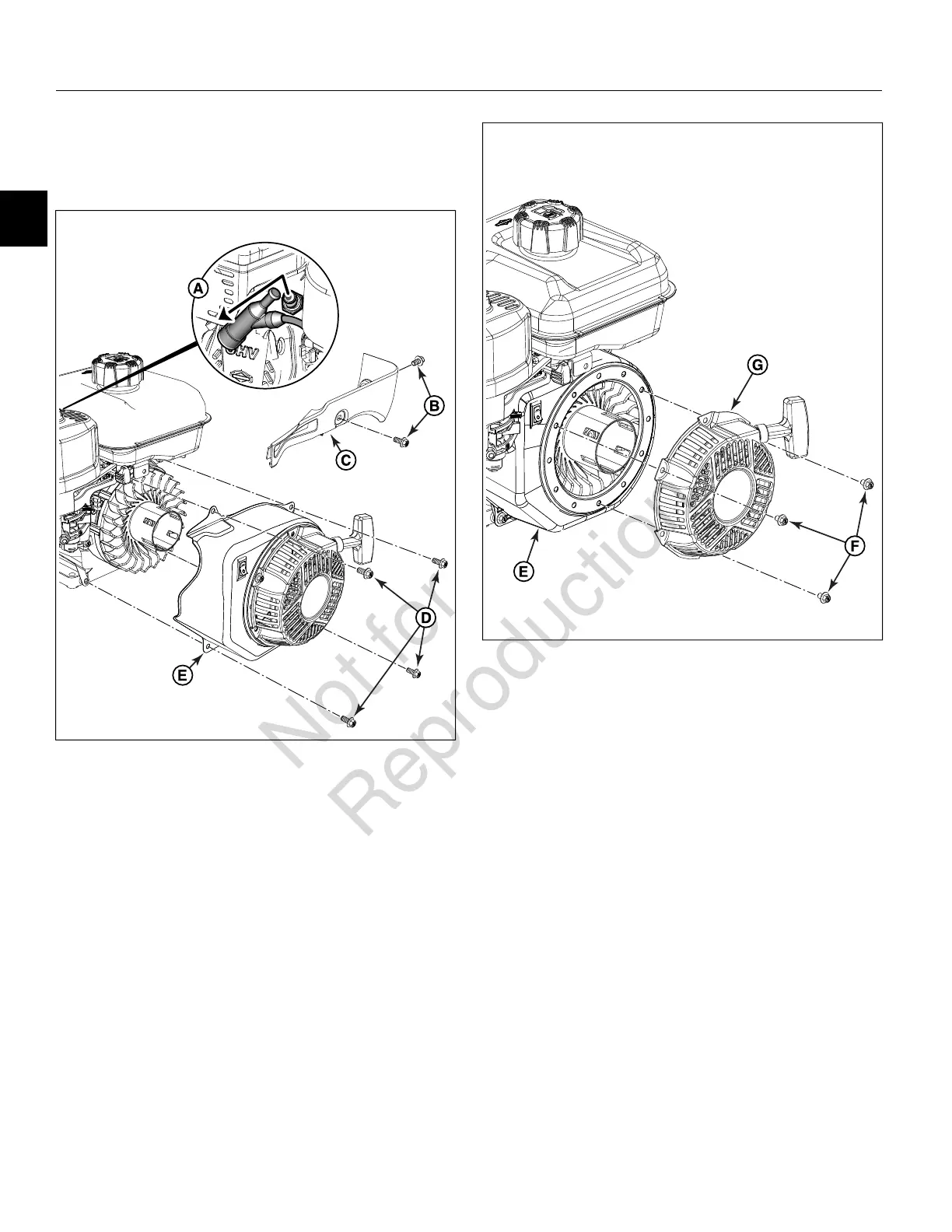

1. Disconnect spark plug wire (A) from spark plug. Secure
spark plug wire away from spark plug.
14
2. If equipped, remove two screws (B) and then remove
control panel trim (C) from engine.
3. 106200 engine: Remove screws (F) and then remove
rewind starter assembly (G) from blower housing (E).
15
4. Remove four screws (D) that attach blower housing (E)
to engine. Do not remove blower housing at this time.
Tip: Remove upper left screw with a 1/4" drive rachet
and extension.
5. 106200 engine: Carefully swing blower housing (E)
away from engine to gain access to the stop switch wire
connections.
