Remote Choke and Throttle Controls

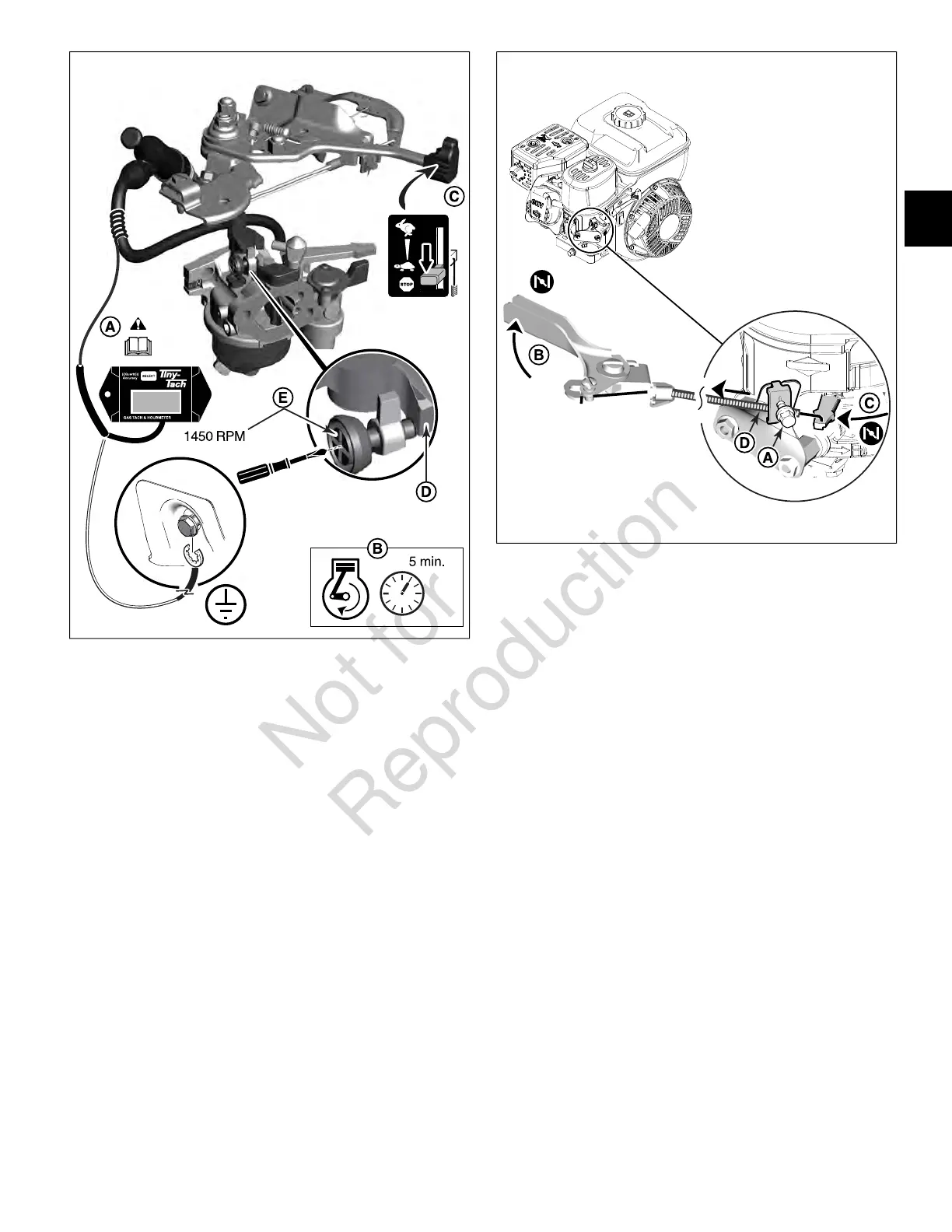

Adjust Remote Choke Control - Carb Mounted
1. Loosen choke control wire casing screw (A) on remote
choke mounting bracket.
2. Move equipment choke control lever or knob to "choke"
position (B).
3. Move engine choke control lever to "choke" position
(C).
4. Move choke control wire and casing (D) in the direction
of the arrow to close choke completely.
5. Tighten casing clamp screw securely.
6. Operate choke control to confirm proper operation.
24
Adjust Remote Throttle Control - Control Bracket
Mounted
There are two locations on the control bracket that the
remote cable can be mounted. Refer to the following
illustration.
1. Remove air cleaner cover and air filter as instructed in
Change Air Filter
found in this section.
2. Loosen throttle control wire casing screw (A) on control
bracket.
3. Move equipment throttle control lever to "fast" position
(B).
4. Move engine throttle control lever to "fast" position (C).
5. Move throttle control wire and casing (D) in the direction
of the arrow until it stops.
6. Tighten casing clamp screw securely.
7. Install air filter and air cleaner cover and instructed in
Change Air Filter
found in this section.
