Brightwell Brightlogic 2 - Installation Instructions - Mounting; Important Notes

5
Revision 1.1
09/2024
B1051UL

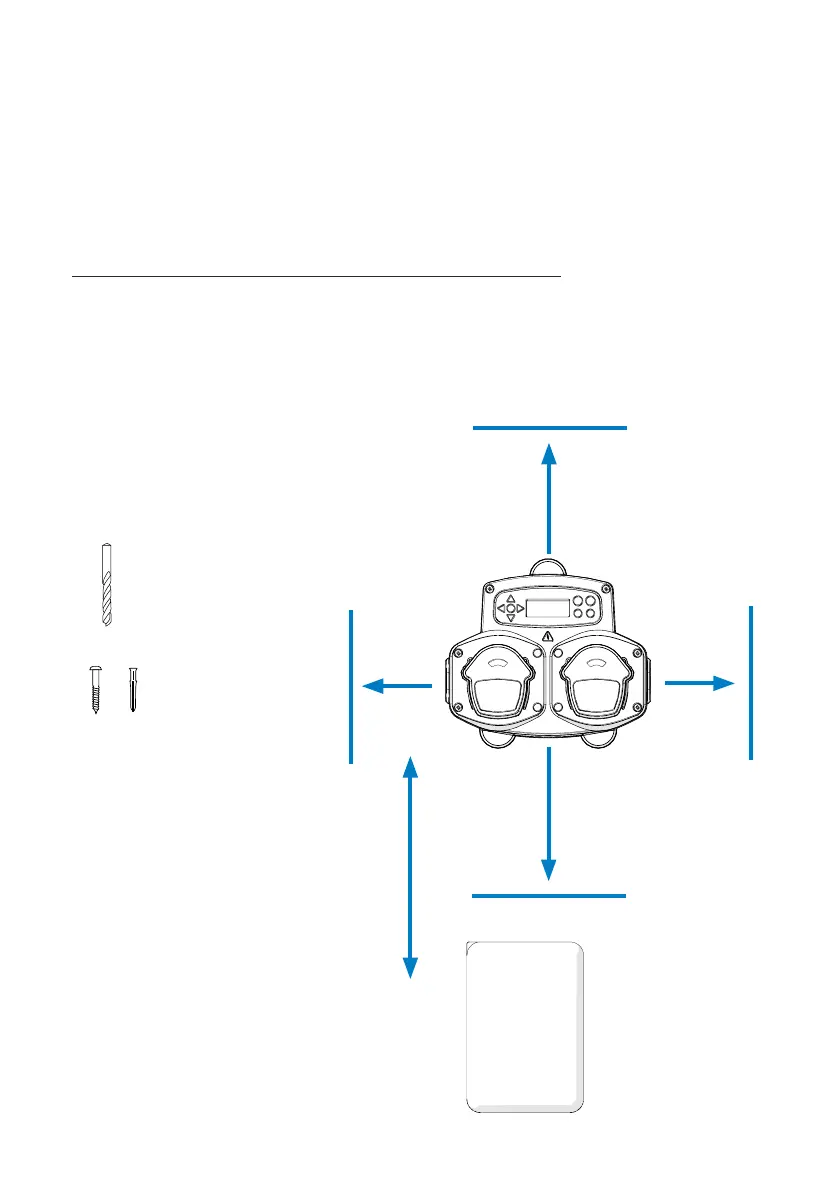

INSTALLATION INSTRUCTIONS - MOUNTING
INSTALLATION INSTRUCTIONS - MOUNTING
350 mm
13.8 in.
350 mm
13.8 in.
60 mm
2.4 in.
60 mm
2.4 in.
MAXIMUM
2 Metres
Fix the unit to a vertical wall using the screws provided.
Ensure that the unit is level and positioned no more than 2 metres above the base of the product,
which is to be dispensed.
Important notes.
Maximum recommended suction and delivery tubes - 2 metres
Minimum tube size - 8x11mm
When installing your unit please conrm you have su󰀩cient ventilation.
Screw pitch/Drilling diagram - on next page
Installation minimum clearance
distances are:
Side: 60 mm (2.4 in.)
Bottom: 350 mm (13.8 in.)
Rear: 0 mm (0 in.)
Ø 6mm
x 3 per enclosure
