Brivo ACS Installation Manual ACS5000-E
ENG-WI-001 © 2005 Brivo Systems, LLC. All rights reserved. Page 16

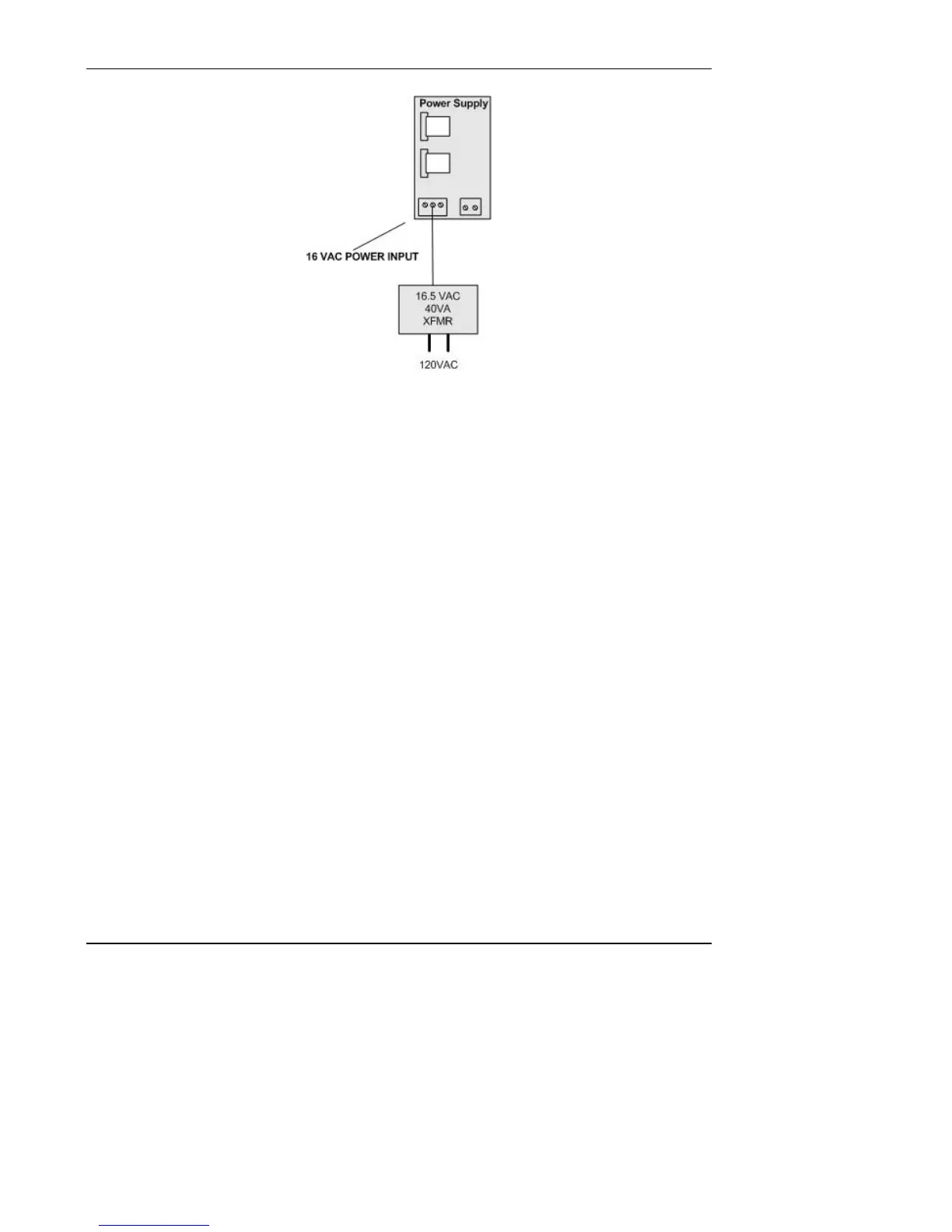

Figure 6. Connect AC Transformer to Power Supply
1. Use 18 AWG wire (minimum grade) to connect the screw terminals on the transformer to
the 16 VAC POWER INPUT terminal block on the power supply board, using terminals
AC1 and AC2.
