Installation Procedures
Establish CAN BUS Wiring
1. If there is an expansion board in the control chassis, connect it to the MAIN BOARD.

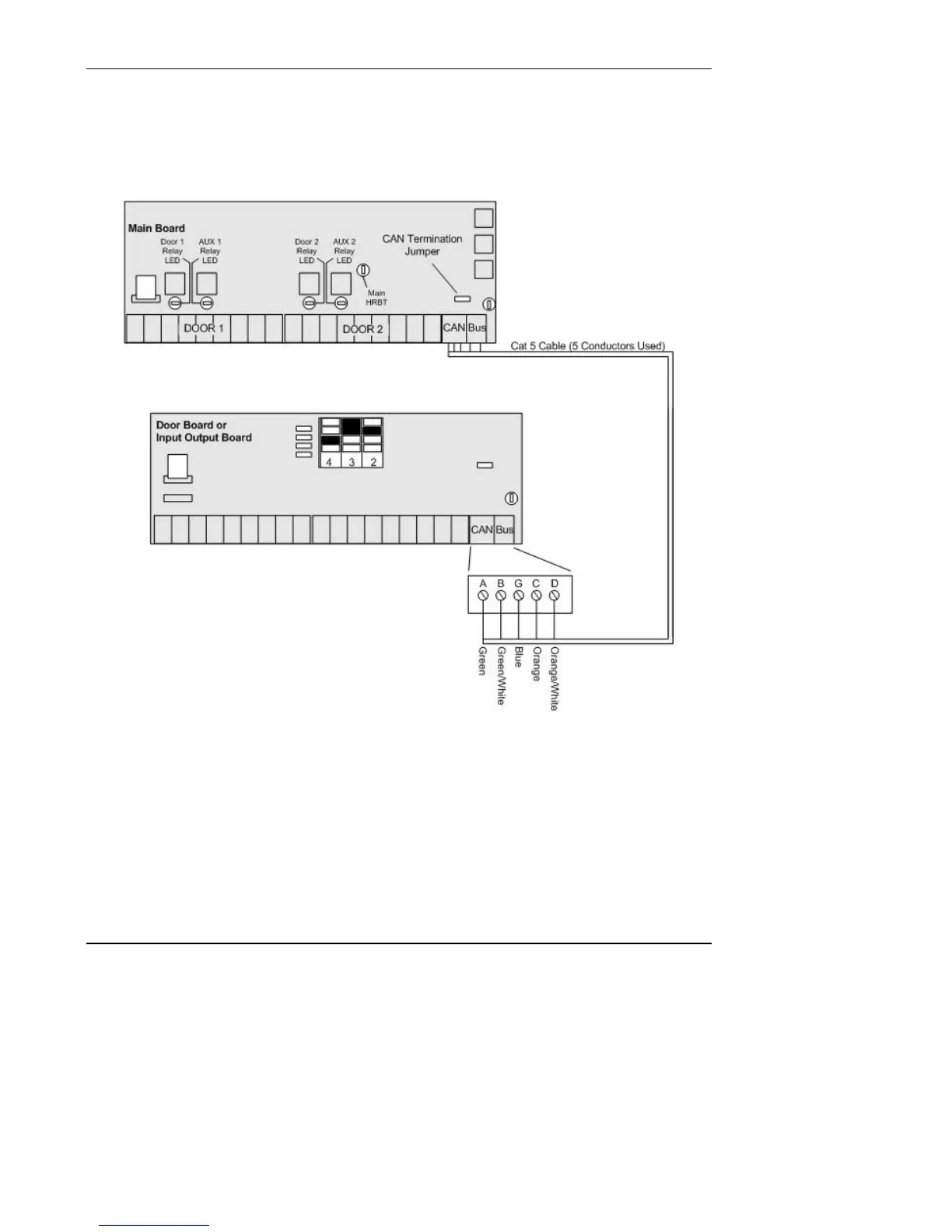

Figure 9. Connect Expansion Board to MAIN BOARD
2. If there are expansion chassis, in each chassis connect the second expansion board to
the first one.
