Panel Networking Guide
Entering Networking Parameters
Once DHCP is deactivated, you can enter IP conguration information on the IP Address Conguration page.
1. IP Address, Netmask, Gateway, and Primary DNS are required elds on this page.
2. Secondary DNS and Tertiary DNS are optional.
3. After entering the data, click Set Static Params.

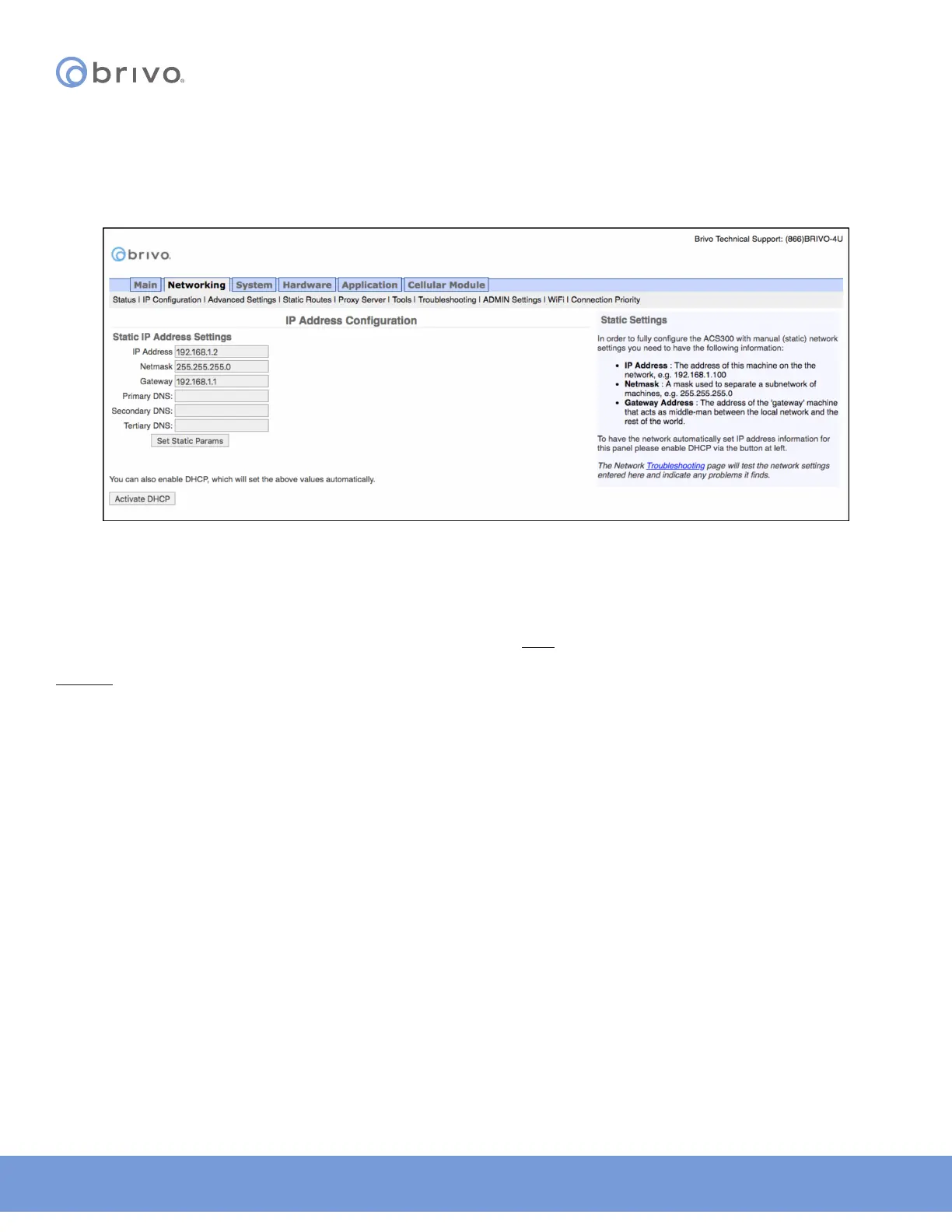

Figure 12: IP Address Conguration
NOTE: Incorrect parameters may prevent the control panel from communicating with the Brivo Onair Cloud Server.
Please conrm all settings with the LAN network administrator rst.
WARNING: LAN Port IP Address
The Admin port uses the IP address range 192.168.207.NNN; do NOT use this range on the LAN port. If you must
use this IP range, rst change the address of the ADMIN port to something other than 192.168.207.NNN. Do this
BEFORE you connect the panel to the host network.
