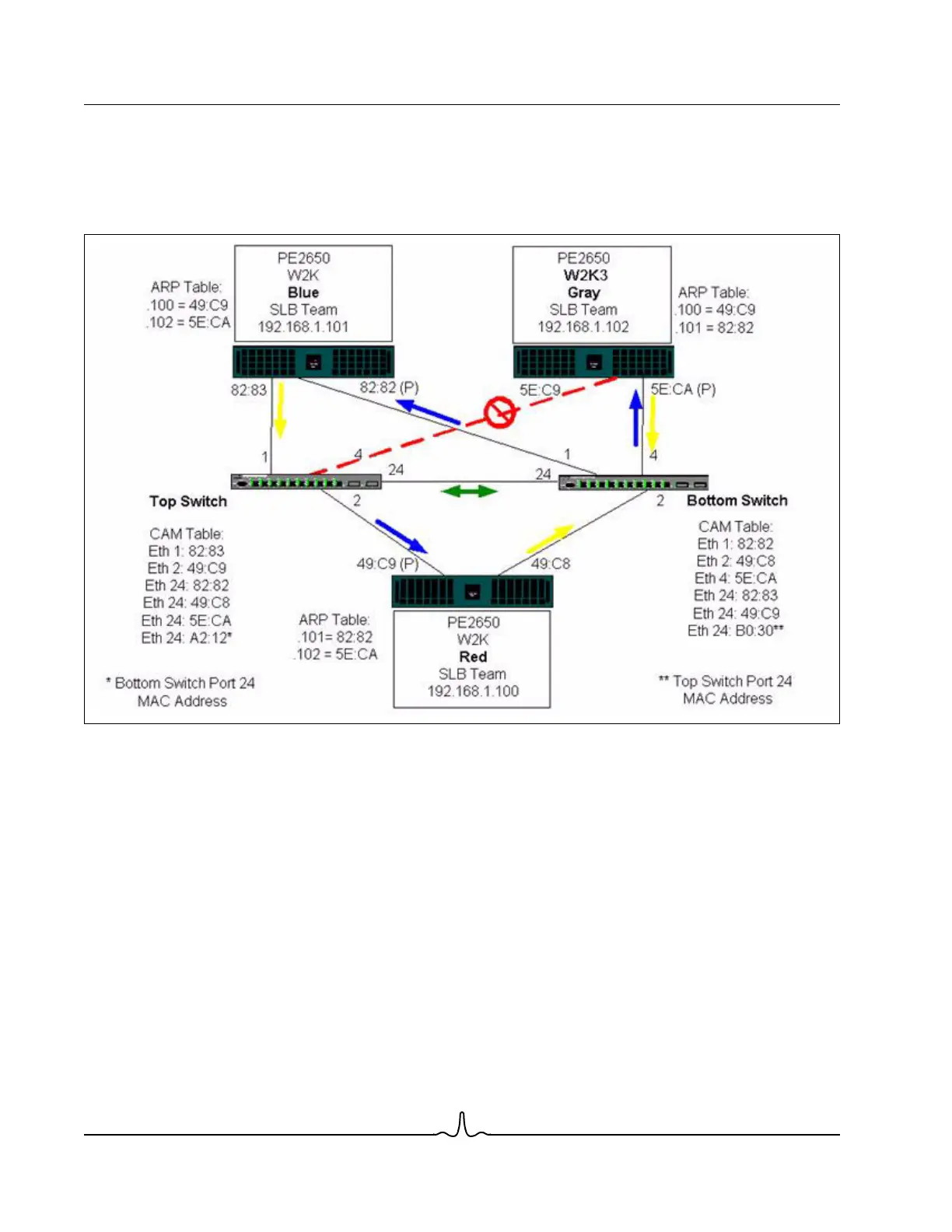

Figure 5 represents a failover event in which the cable is unplugged on the Top Switch port 4. This is a successful failover
with all stations pinging each other without loss of connectivity.
Figure 5: Failover Event
