User Guide NetXtreme II
January 2010
Broadcom Corporation
Document ENGSRVT52-CDUM100-R Application Considerations Page 47
Figure 7 shows a 2-node Fibre-Channel cluster with three network interfaces per cluster node: one private and two public.
On each node, the two public adapters are teamed, and the private adapter is not. Teaming is supported across the same
switch or across two switches. Figure 8 shows the same 2-node Fibre-Channel cluster in this configuration.

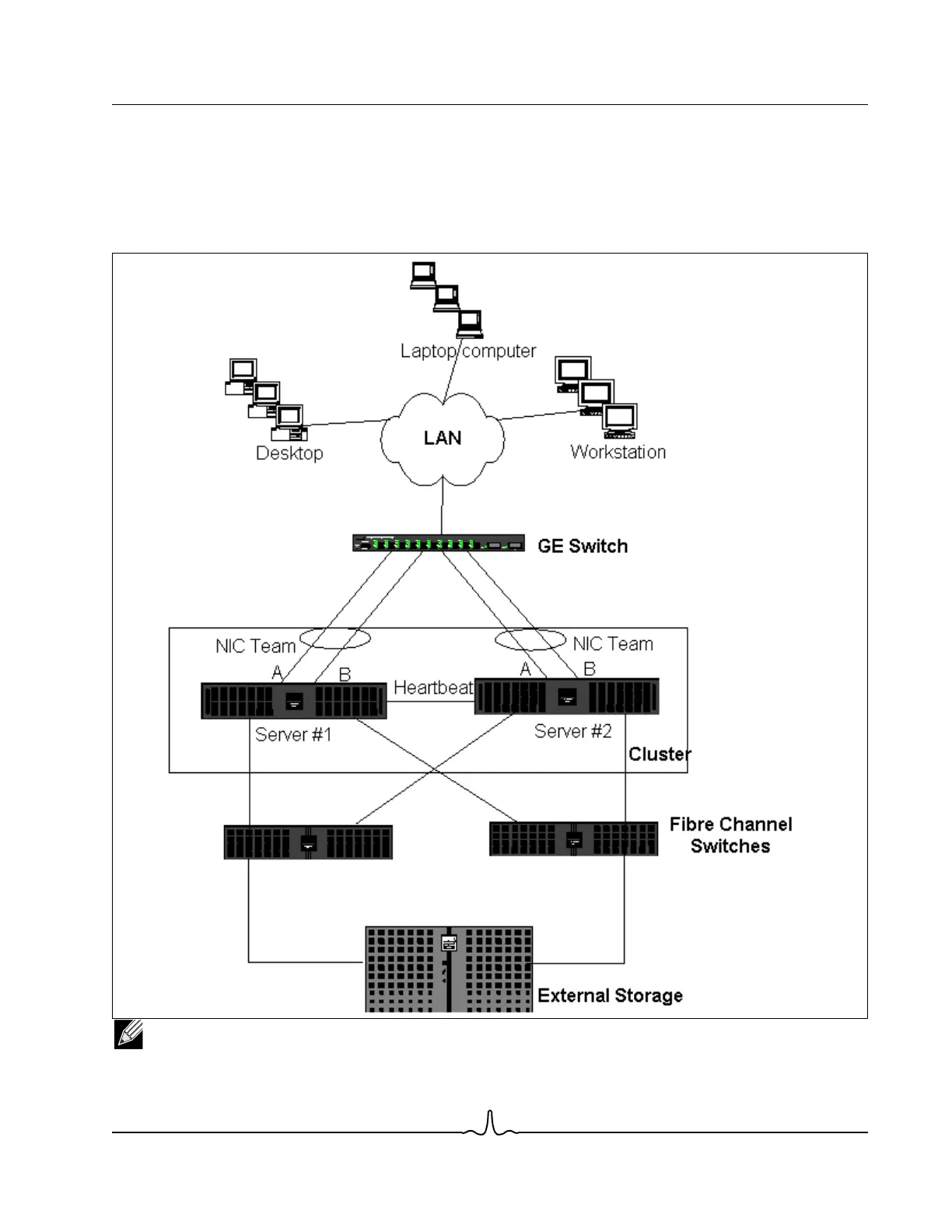

Figure 7: Clustering With Teaming Across One Switch
NOTE: Microsoft Network Load Balancing is not supported with Microsoft Cluster Software.
