FLUID VOLUME
Hydraulic reservoir – 156 gallons (509 L)
Fuel tank – 80 gallons (303 L)
Planetary hoist – 6.5 quarts (6.2 L)
Axle – Differential Housing – 5.4 gallons (20.5 L), Hubs – 0.5 gallons (1.85 L)
Transmission – 5 gallons (19 L), not including oil cooler and lines.
Engine oil capacity – 10.5 quarts (10 L)
Engine cooling system – 14 quarts (13.2 L), fill to bottom of fill neck in surge tank.

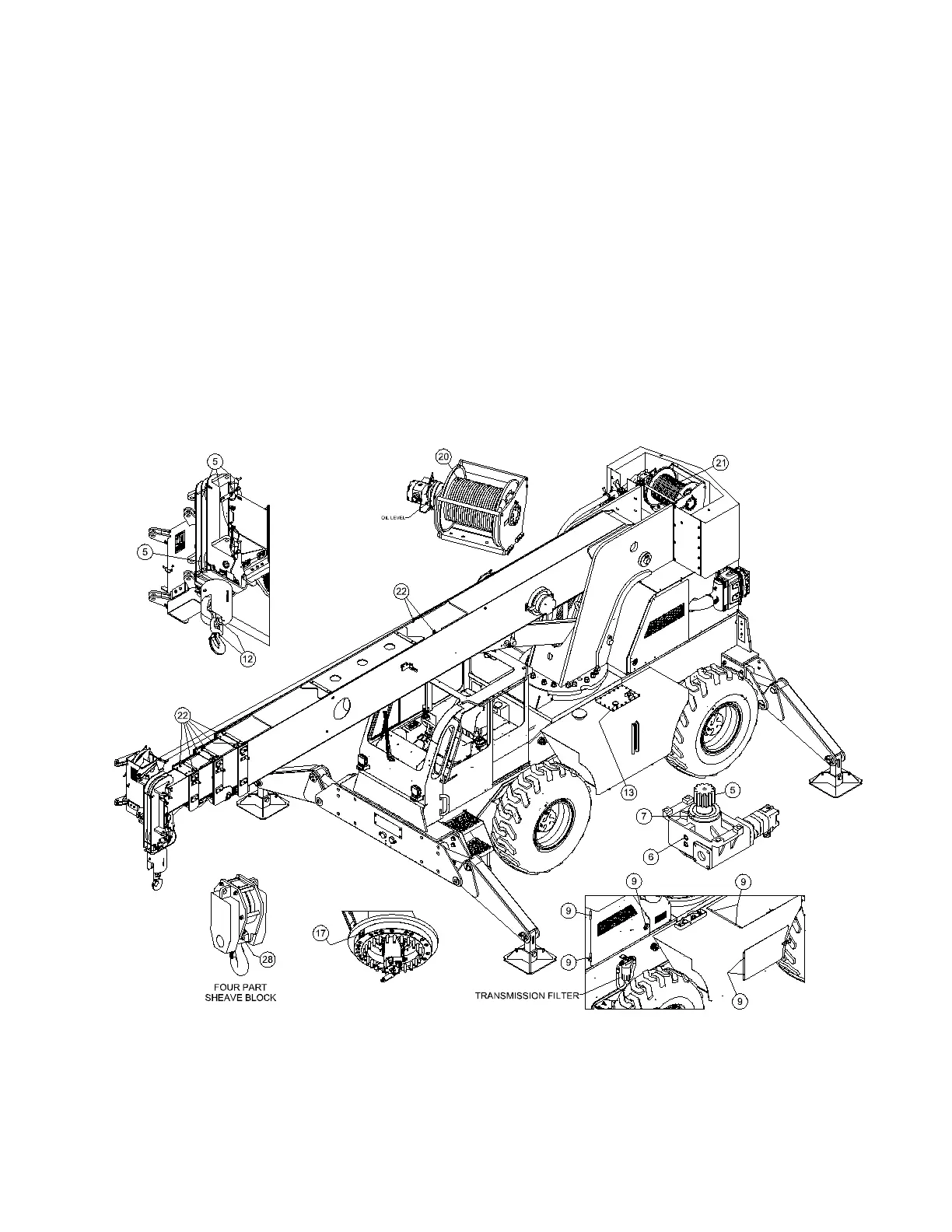

IC-600-A LUBRICATION CHART
